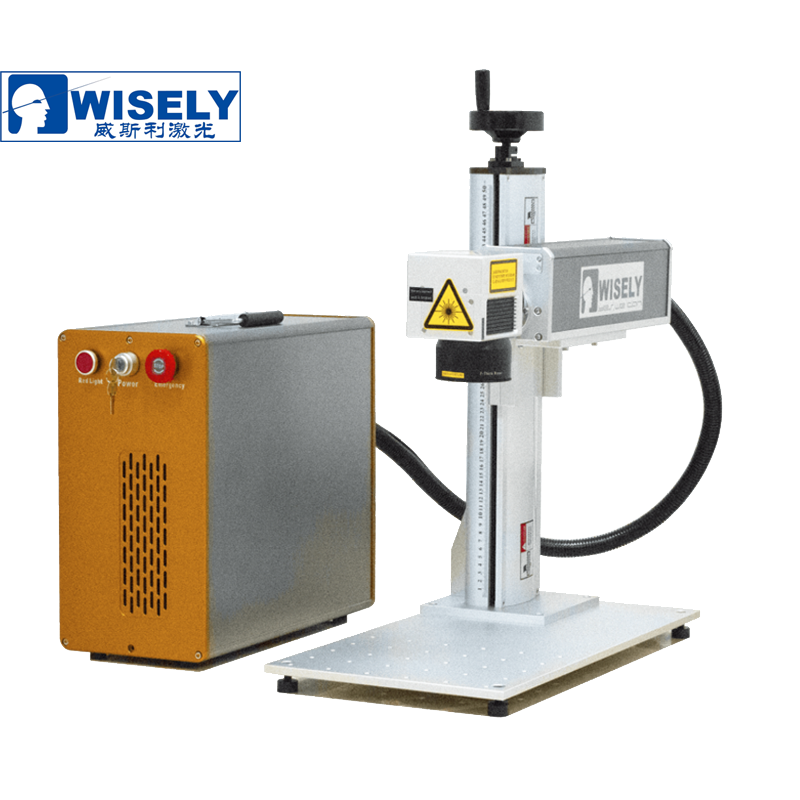

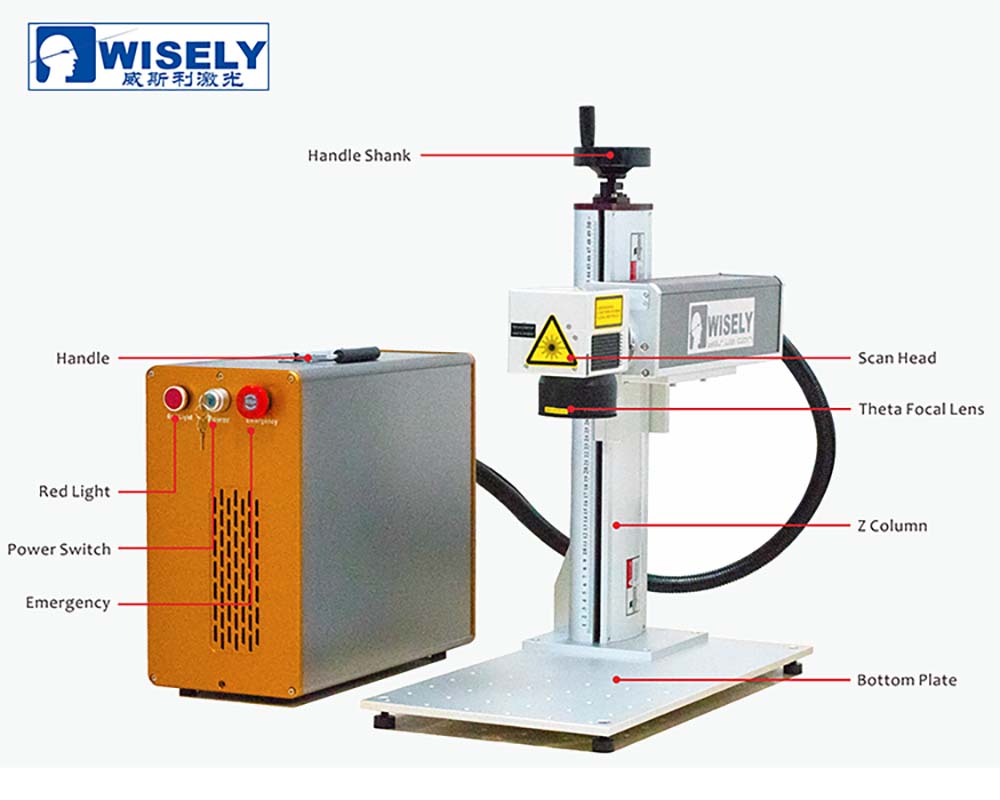

Affordable Fiber Laser Marking Machine - Type III

Affordable Fiber Laser Marking Machine - Type III

Portable Style, easy to move and load the material ,can work with customized automatic matching system. It can work with most metal marking applications, such as Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon
Contact information

0755-32998419

  • Technical Parameters



Application Materials

WISELY Laser Marking Machine for Metal & Plastics. It can work with most metal marking applications, such as Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon.

Applicable Industries

Electronic Components:

Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc.

Mechanical Parts:

Bearings, Gears, Standard Parts, Motor, etc.

Instrument:

Panel Board, Nameplates, Precision equipment, etc.

Hardware Tools:

Knives, Tools, Measuring Tools, Cutting Tools, etc.

Automobile Parts:

Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.

Daily Necessities:

Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.

Advantages

1) High Precision: Upto 0.0012mm, bring you the fantastic and satisfied marking effect.

2) Superior Laser Beam: The definition is 1 micron, 10 times as that of traditional products.

3) No Consumables: One Fiber marker can work for more than 10 years without any consumables.

4) High Speed: 7000mm / second, is 3 to 5 times above that of traditional products.

5) The fiber laser beam comes out from the fiber device directly, no need to adjust the laser optical path.

6) Low consumption: <500W, is 1/25 ~ 1/10 times as that of Diode and YAG, more economized and environmental.

7) JCZ controller, USB interface, swift and stable transmission, easy software operation, strong functions.

8) High-quality scan head, with good seal, capable to prevent dust and water, small volume, compact and solid.

9) Long lifespan of Raycus laser module: 0.1-0.2 million hrs (light pumping YAG: several hundred hrs; semi-conductor: 10 000 hrs)

10) Strong Compatibility: TTF Font, SHX, BMP, DXF, AI, PLT and other format files output from CorelDraw, PS, AutoCAD, etc..

11) Integrated Air Cooling System: The cooling effect is more excellent than the water cooling effect in YAG laser, no maintenance.

12) Deep Marking: Max. 1mm stainless steel, suitable for the industries which need high precision and depth marking effect.

Technical Parameters

 Type

MY-M20F-III

 Power

20W/30W/50W/100W

 Laser Wavelength

1064nm

 Marking Area

150mm*150mm

 Optional Marking Area

50mm*50mm / 100mm*100mm / 200mm*200mm / 300mm*300mm

 Marking Depth

2mm

 Marking Speed

7000mm/s

 Minimum Line Width

0.015mm

 Minimum Character

0.2mm

 Repeated Precision

±0.003mm

 Fiber Laser Source

Raycus from China

 Life-span of Fiber Laser Module

100 000-200 000 hours

 Beam Quality

M<1.6

 Focus Spot Diameter

<0.01mm

 Output Power of Laser

10%~100% continuously to be adjusted

 Output Frequency of Laser

20KHz~80KHz continuously to be adjusted

 Power Stability (8h)

<±1.5%rms

 System Operation Environment

Windows XP / 7 / 8 / 10 -32/64bits

 Cooling Mode

Air cooling--Built-in

 Temperature of Operation Environment

15~35

 Voltage

220V / 50HZ / 1-PH or 110V / 60HZ / 1-PH

 Power Requirement

<500W

 Computer Requested

This type does not include the computer

 Dimension (L*W*H)

550mm*600mm*600mm

 Package Size

600mm*750mm*850mm

 Net Weight

50KG

 Gross Weight

80KG

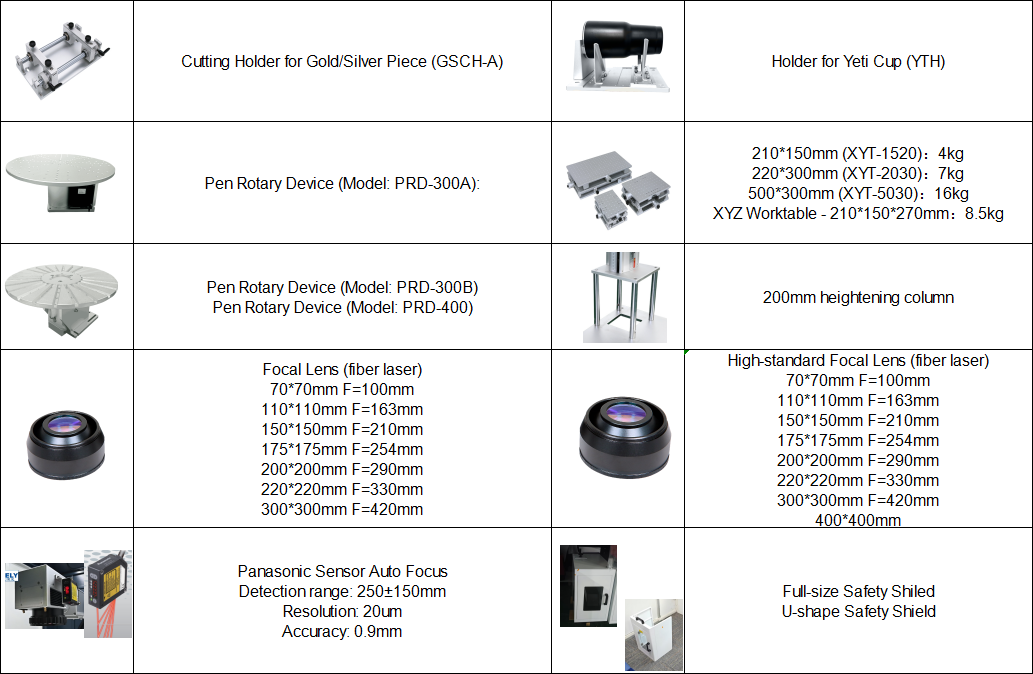

 Optional (Not free of charge)

Rotary Device, Moving Table, other customized Automatic Matching System

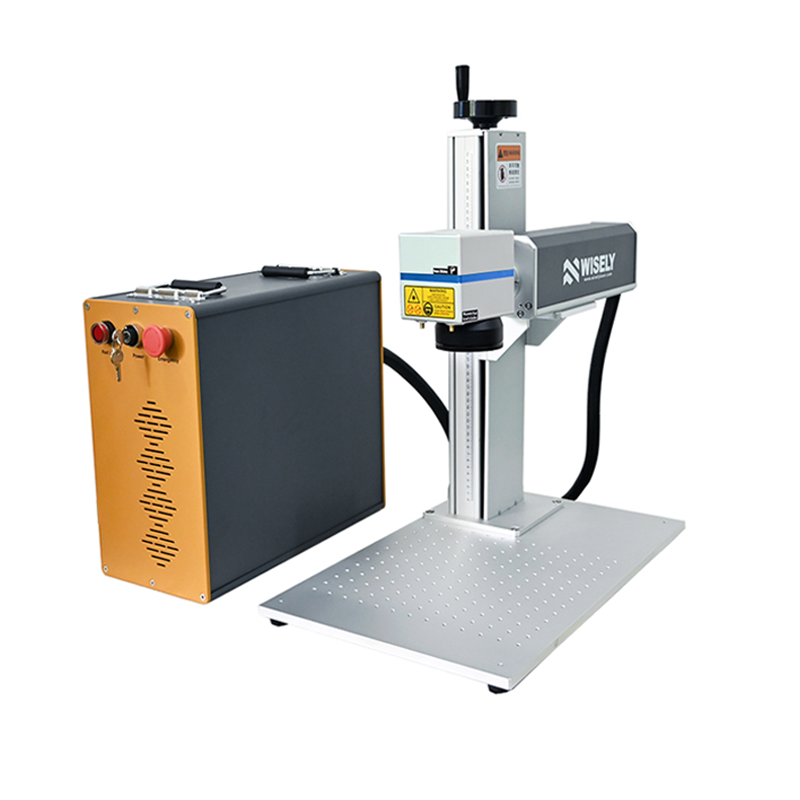

Recommended Products
