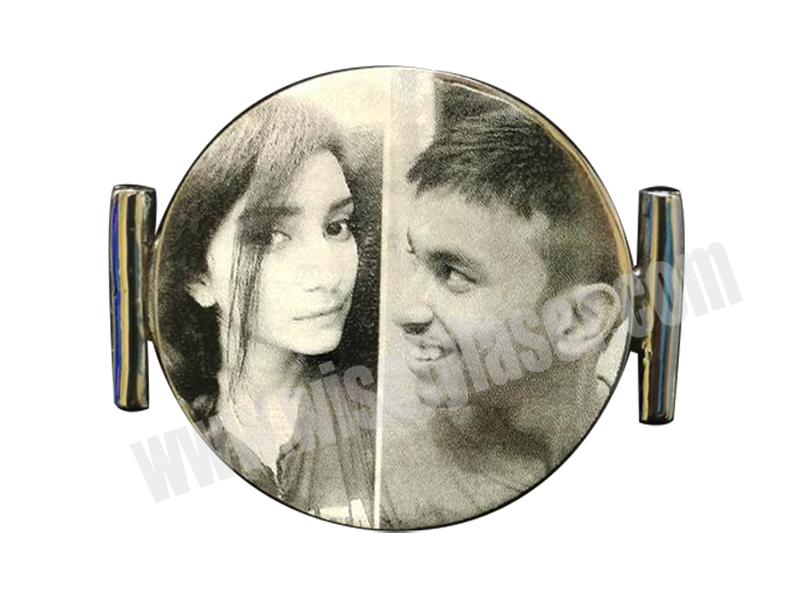

Portable Style, easy to move and load the materials ,can work with customized automatic matching system. Color Laser Engraving Machine can do: 1. Black and white engraving on most metals and some plastics. 2. Color engraving on stainless steel and titanium. 3. Black engraving on anodized aluminum.
0086-150-1350-9330
Mopa special function:
1. MOPA laser color marking Porsche logo on SS: https://youtu.be/jCh7mUilbQQ

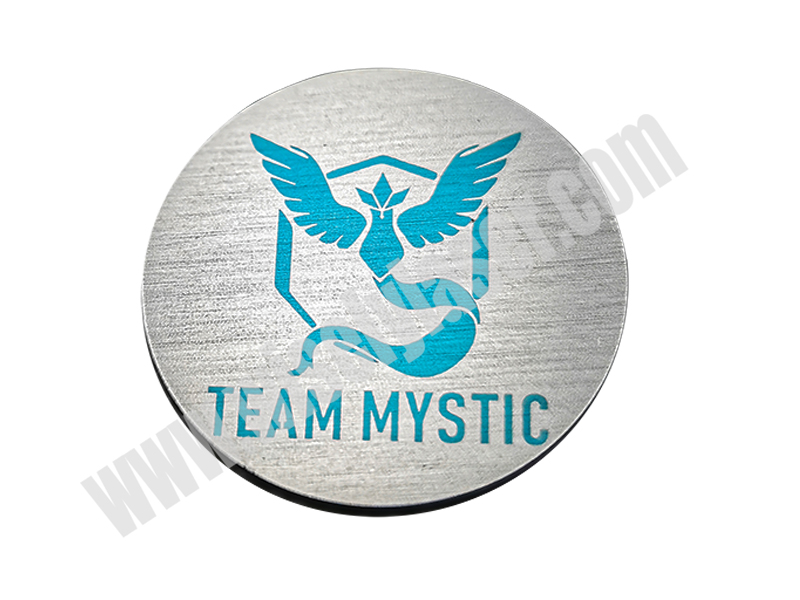

2. MOPA color laser marking color words on SS: https://youtu.be/J0mD1dSrZbM
3. MOPA color laser marking on Titanium: https://youtu.be/R-NaIkZuihs
4. MOPA laser color marking and deep engraving: https://youtu.be/XdCf39ASCO8
Feature
1) Long lifespan of fiber laser source: 100,000 hours.
2) Low consumption: <450W, more economical and eco-friendly.
3) High Speed: 7000mm/s, faster than traditional machines.
4) Superior Laser Beam: The definition is 1 micron, 10 times that of traditional products.
5) No Consumables: The machine can operate for more than 8-10 years without any consumables.
6) The fiber laser beam comes out from the fiber laser source directly, with no need to adjust the optical path.

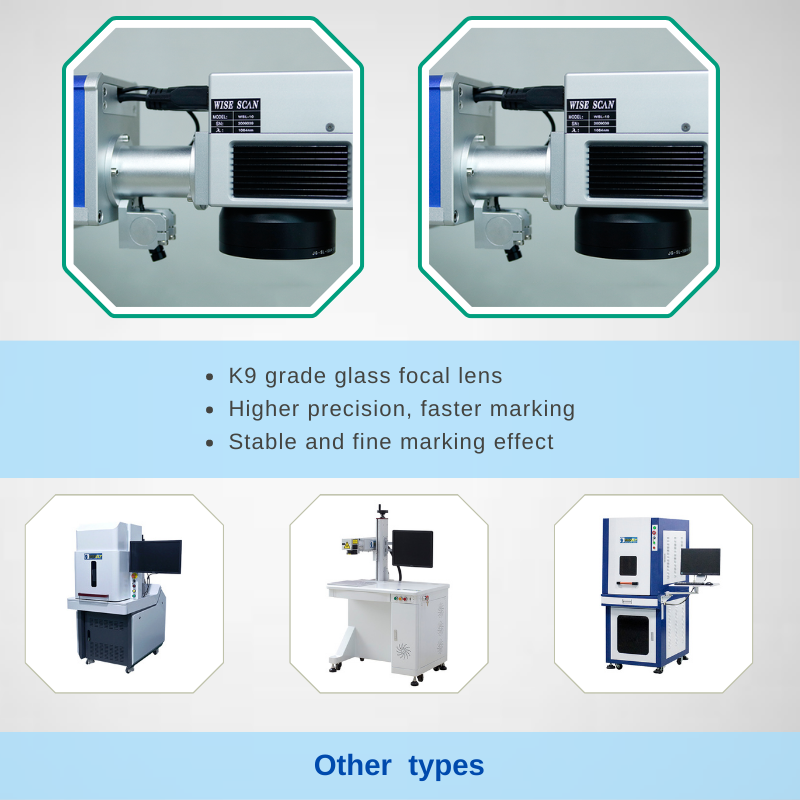

7) High-precision and high-speed scan head, with a good seal, capable of preventing dust and water, small volume, compact.
8) High-stability controller, USB interface, fast and stable data transmission, optimized path planning.
9) Strong Compatibility: PLT, BMP, JPG, TTF, DXF, SHX, AI, and other format files output from CorelDraw, AI, PS, AutoCAD, Solidworks, etc...
10) Integrated Air Cooling System: Better cooling effect than water-cooling effect in YAG laser, no maintenance.
Application
1) Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard.
2) Mechanical Parts: Bearings, Gears, Standard Parts, Motors, etc.
3) Instrument: Panel Board, Nameplates, Precision equipment, etc.
4) Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
5) Automobile Parts: Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.
6) Daily Necessities: Handicrafts, Zippers, Keychains, Sanitary Ware, etc.
Application material
| Aluminum | Gold | Silver | Stainless Steel | Brass | Titanium |
| Titanium | Copper | Platinum |
Carbide |
Nickel | Carbon steel |
| Iron | Chrome | Silicon | Plastic | Colored Acrylic | Hard plastic |
| Granite | Marble | Tile | ABS | PVC | Ceramic |
| Stone | PLA plastic | PBT plastic |
Technical Parameters

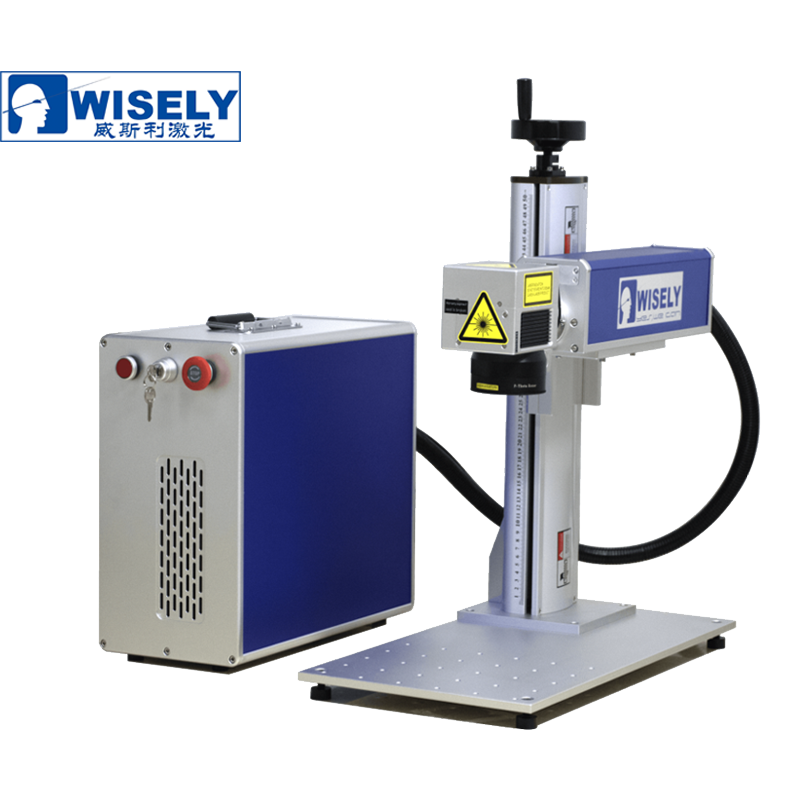

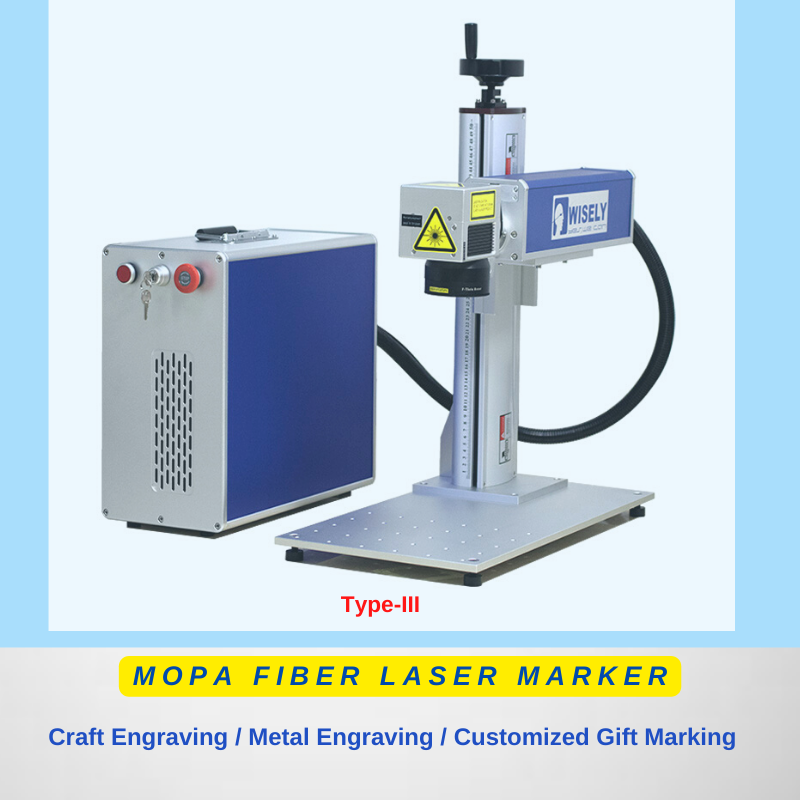

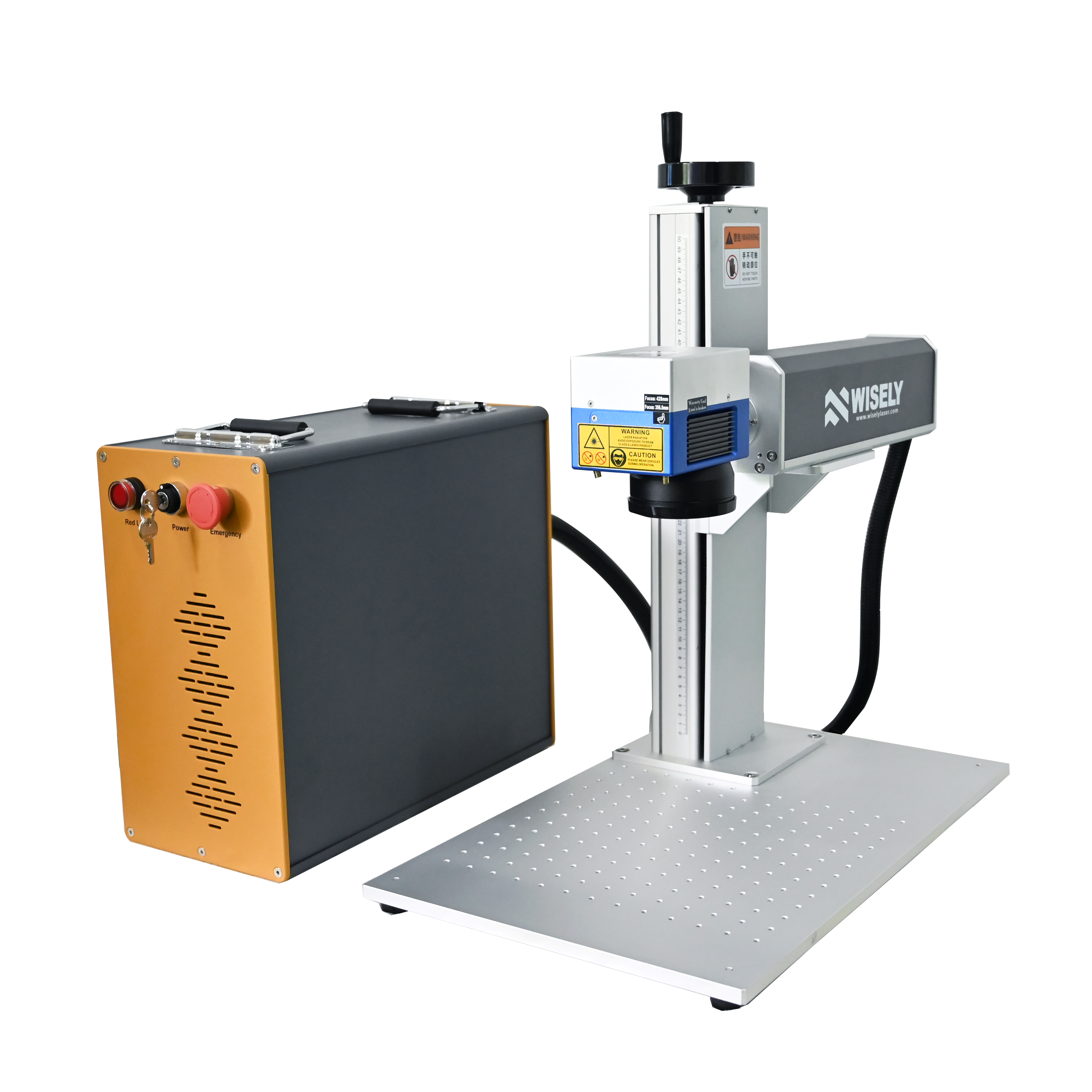

| Model | MY-M20F-III | |||||||||
| Power | 20W / 30W / 60W / 80W / 100W / 200W /300W | |||||||||
| Laser Wavelength | 1064nm | |||||||||
| Standard Marking Area | 150mm*150mm | |||||||||
| Optional Marking Area | 70*70 /100*100 /200*200 /300*300 /400*400mm | |||||||||
| Marking Depth | ≤2mm | |||||||||
| Marking Speed | 7000mm/s | |||||||||
| Minimum Line Width | 0.015mm | |||||||||
| Minimum Character | 0.2mm | |||||||||
| Repeated Precision | ±0.006mm | |||||||||

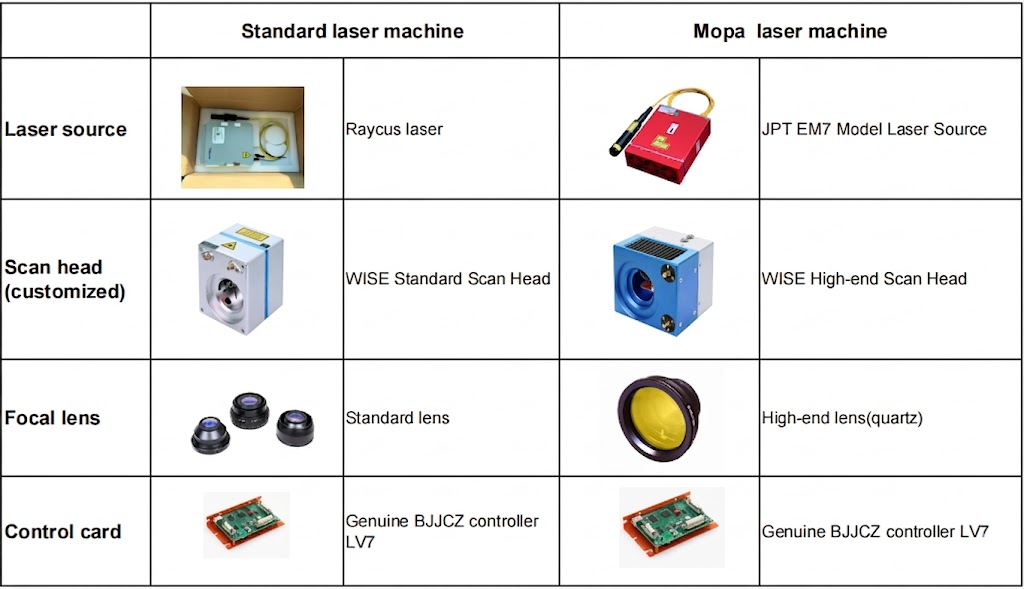

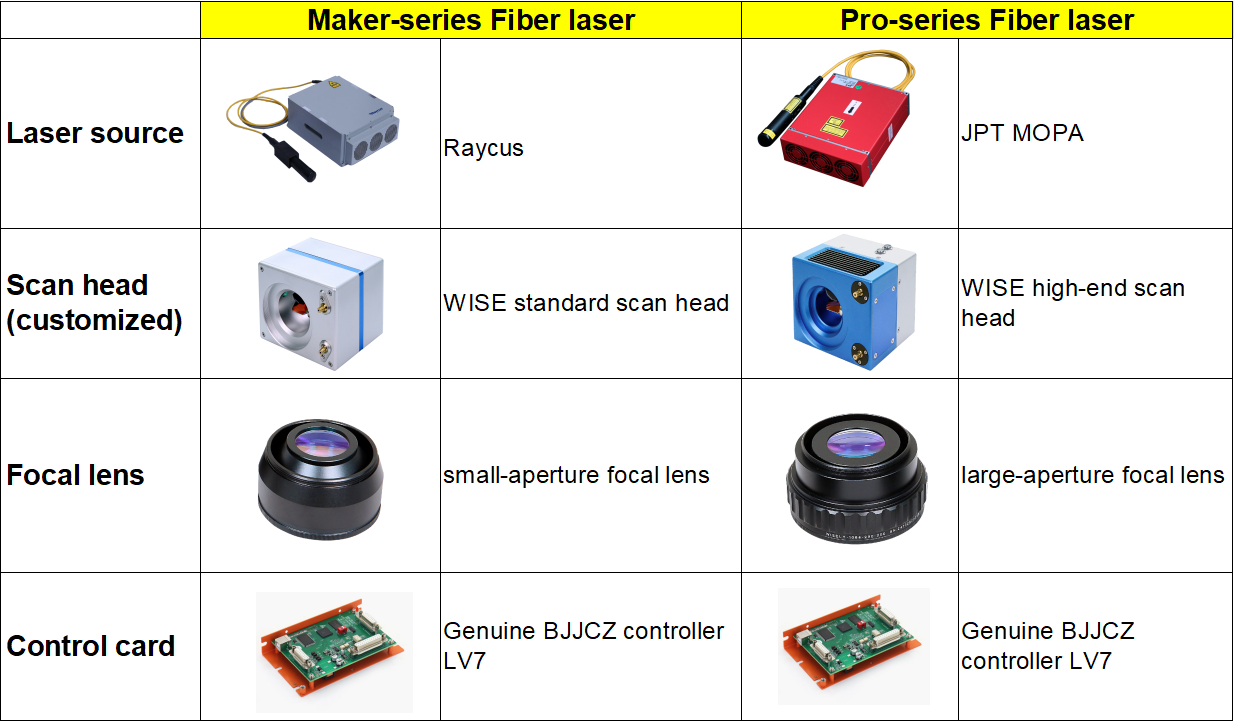

| Fiber Laser Source | JPT Mopa M7 (Optionlal IPG Mopa) | |||||||||
| Scan Head | Galvo-Tech / WISE SCAN from China | |||||||||
| Controller (software) | JZC Controller & EzCAD2 Software (Optionlal: EzCAD3 /SAMLight /LightBurn) | |||||||||
| Life span of Fiber Laser Module | 100 000 hours | |||||||||
| Beam Quality | M2<1.3 | |||||||||
| Focus Spot Diameter | <0.01mm | |||||||||
| Output Power of Laser | 10%~100% | |||||||||
| Output Frequency of Laser | 1~4000KHz | |||||||||
|
Output Q Pulse |
1-500Ns | |||||||||
| System Operation Environment | Windows XP / 7 / 8 / 10 / 11 - 32 / 64bits | |||||||||
| Cooling Mode | Air Cooling | |||||||||
| Voltage | 220V/50HZ/1-PH or 110V/60HZ/1-PH | |||||||||
| Power Requirement | <450W | |||||||||
| Dimension (L*W*H) | 700*400*650mm | |||||||||
| Package Size | 850*500*870mm | |||||||||
| Net Weight | 45KG | |||||||||
| Gross Weight | 75KG | |||||||||

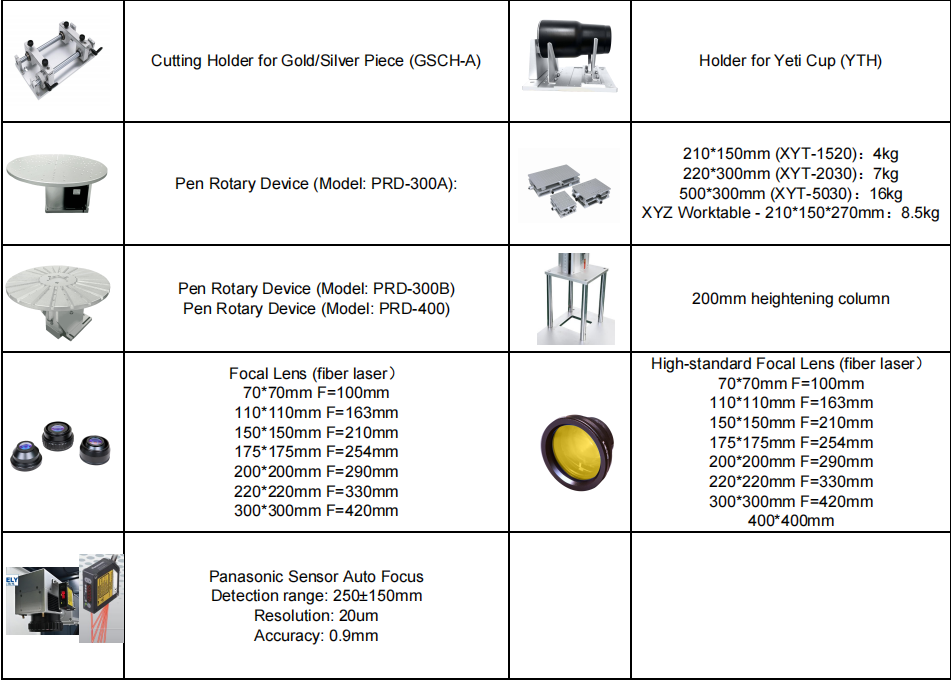

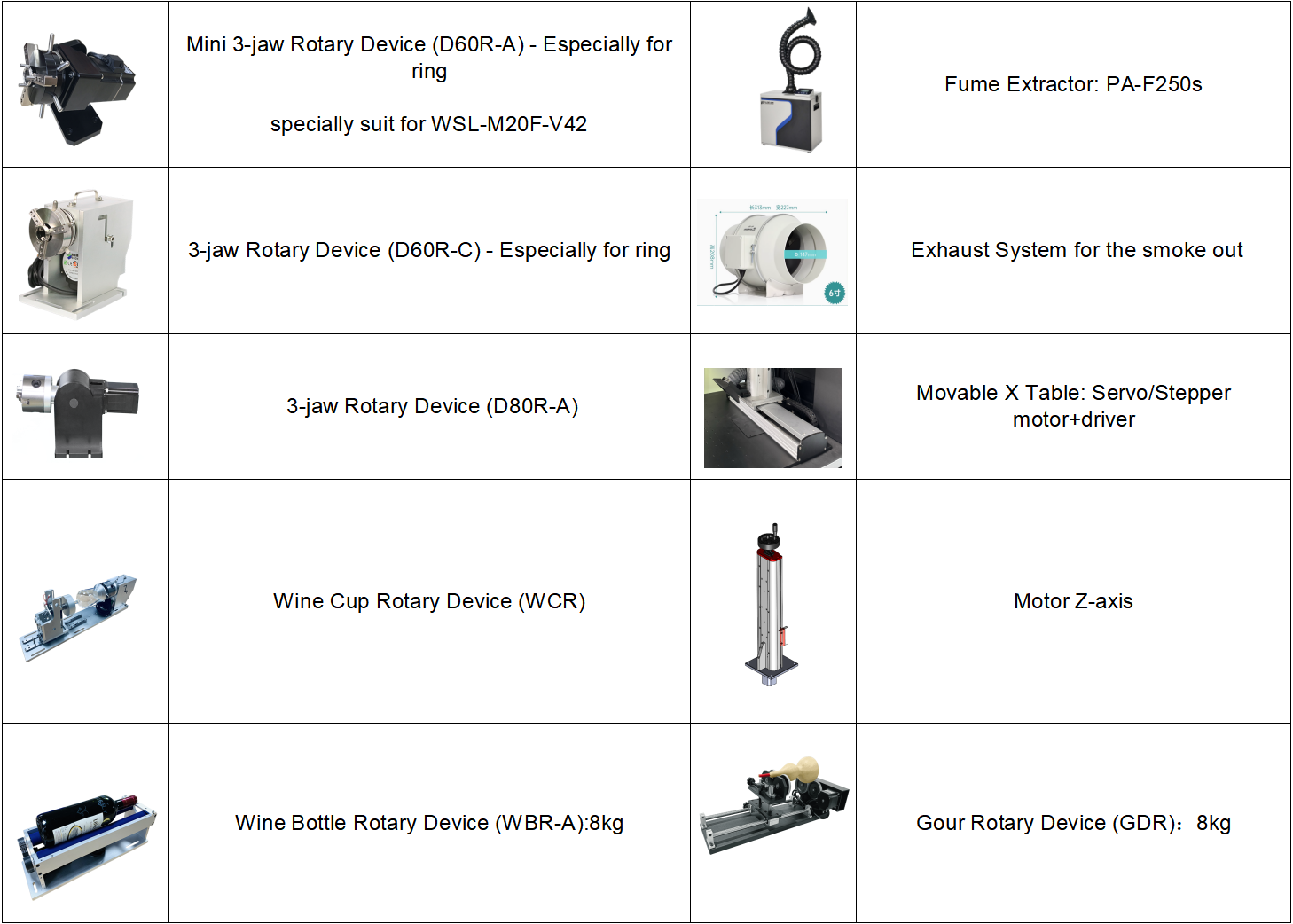

Optional Devices
Payment
100% or 40% prepaird before production, balance payment before shipment. (Negotiable）
Bank Wire, PayPal, Western Union, Credit Card, Alibaba.
Shipment
The machine will be sent out 3-6 working days after receiving the payment.
By Express: 6-10 days. (Recommended)
By Sea: 30-45 days.
Packaging
International standard plywooden case.
Warranty
Whole machine has a warranty period of 24 months since the production date.
Training
1~3 working days training free of charge in factory or online training via TeamViewer, Skype, WeChat, FB.
