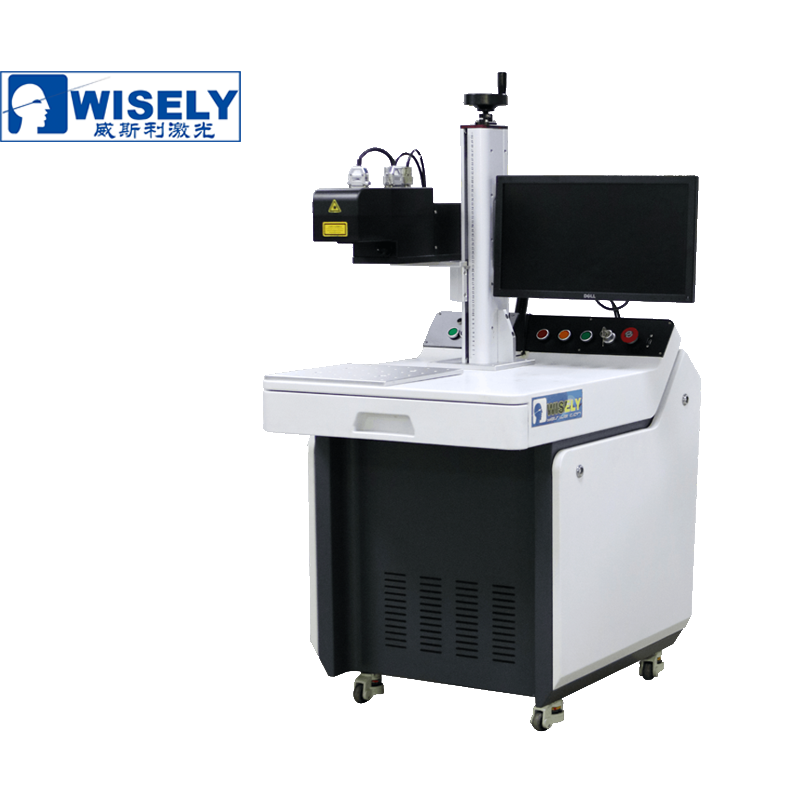

3D Fiber Laser Marking Machine-Dsektop Type

3D Fiber Laser Marking Machine-Dsektop Type

WISELY 3D serial fiber laser marking machine adopt imported core components, with high-speed, high precision 3D galvo, and with our 3D specified software and control system, it can engrave on any curved workpieces in a fine process, there is no off-focus problem. It can also adjust focus length any time for deep engraving, which make process efficiency and marking quality much better than traditional 2D fiber laser marking machine. we make real 3D marking function come true, leading a new era of laser processing.
Contact information

0086-150-1350-9330

  • Technical Parameters


Sample Gallery
3D fiber Laser Samples (2).png


Main Configurations
3D Fiber Laser.png

Applicable Industries

Electronic Components:             Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc.

Mechanical Parts:                        Bearings, Gears, Standard Parts, Motor, etc.

Instrument:                                  Panel Board, Nameplates, Precision equipment, etc.

Hardware Tools:                          Knives, Tools, Measuring Tools, Cutting Tools, etc.

Automobile Parts:                        Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.

Daily Necessities:                        Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.


Advantages

1) 3D marking:  can do smooth and uniform marking effect on slope, cylinder, cone, ball and so on.

2) Terrific big central angle marking , the max. central angle can reach 117 degree on cylinder.

3) Perfectly present target graphics on work pieces, avoid deforming such as elongation and slope.

4) Long lifespan of fiber laser source: 100 000 hours.

5) No Consumables: One marker can work for more than 10 years without any consumables.

6) The fiber laser beam comes out from the fiber device directly, no need to adjust the laser optical path.

7) High-stability controller, USB interface, swift and stable transmission, route optimization, intelligent
    calculation, easy software.

Technical Parameters

TypeMY-M30F-III (3D)
Laser Power30W
Optional Laser Power30W/50W /100w
Laser Wavelength1064nm
Marking Area (mm)100mm*100mm
Optional Marking Area70*70 / 150*150 / 175*175 / 200*200 / 250*250                  300*300 / 400*400 / 500*500 / 600*600
Marking Speed10000mm/s
Minimum Line Width0.03mm
Repeated Precision±0.006mm
Fiber Laser SourceRaycus / JPT from China
Life-span of Fiber Laser Source100 000 hours
Beam QualityM2 <1.6
Focus Spot Diameter<0.02mm
Output Power of Laser10%~100% to be adjusted continuously
Output Frequency of Laser1KHz~600KHz to be adjusted continuously
Power Stability (8h)<±1%rms
System Operation EnvironmentWindows XP/7/8/10 - 32/64bits
Cooling ModeAir cooling
Temperature of Operation Environment0℃~ 40℃
Humidity of Operation Environment5% ~ 75%
Power Input220V/50HZ/1-Ph or 110V/60HZ/1-ph
Power Comsuption<450W
Communication InterfaceUSB
Dimension (L*W*H)750*630*650mm
Package Size830*700*810mm
Net Weight120Kg
Gross Weight165Kg


Optional Devices

Optional Devices-Fiber-水印.png



























Shipment

Within 5~7 working days after receiving your payment.

Packaging

International standard plywooden case packing-free of fumigation.


Warranty

Whole machine has a warranty period of 12 months since the production date.

Training

1~3 working days training free of charge in factory or online training via TeamViewer, Skype, WeChat, FB.
