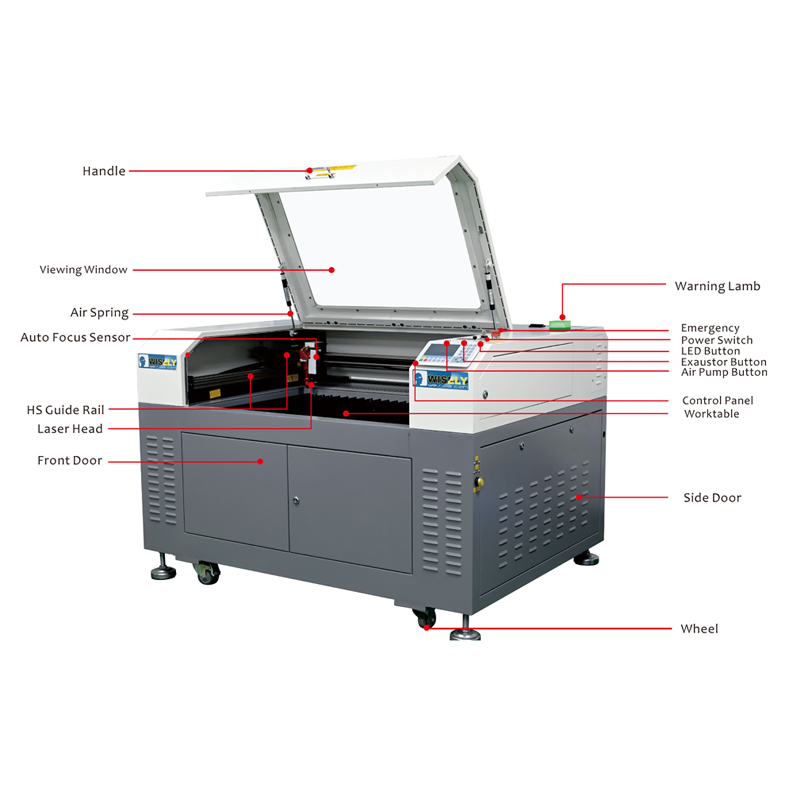

High-Speed CO2 laser engraving machine. Laser cutting & engraving acrylic, wood, plastic, fabric, leather, paper, cards, rubber, glass, marble, stone and more.
1. With WIFI wireless control system.
2. Specially for thin & soft material smooth and high-speed cutting
3. Protecting sensor can protect the operator from smoke and laser hurting
4. High precision: equipped with linear Guide Rail, with small resistance, low machabical vibration.
5. Strong competibility: DSP control system supper windows XP/7/8/10, virtual printer driver model and Flying cutting.
6. Reci laser tube guarantee high stability and fine laser beam, lifespan of tube can reach 10 000 hours.
7. Water-cooling system can keep temperature of operation, ensure laser stable output.
Wisely Laser HS Series laser cutting machine is mainly used to cut thin and soft non-metal materials, such as leather, fabric, textile, cloth, paper and so on. Of course, this machine can cut or engrave Acrylic, Bamboo products, Plastic, Marble, Glass, Woods, PVC.
|Laser Power||25W / 40W / 60W / 80W /90W /100w /130W|
|Laser Type||Yongli Sealed Glass CO2 laser tube (Lifespan: Max. 10 000 hours)|
|Transmitting Parts||High-speed Guiderail|
|Drive Type||Stepper or Servo Motor|
|Default Software / Controller||RUIDA DSP Controller & RDWorks|
|Max. Cutting Speed||1200mm/s|
|Max. Corner Acceleration||6000mm/s|
Recommended Corner Acceleration
||Less than 3500mm/s, we suggest you to use different Corner Acceleration for different materials|
|Max. Engraving Speed||1200mm/s|
|Mechanical Vibration in process||0.1 ~ 0.6|
|Min. Forming Character||English:1.5 x 1.5mm|
|Power Supply||220V±10% 50HZ or 110V±10% 60HZ|
|Software Supported||ArtCut, CorelDraw, PhotoShop, AutoCAD|
|Graphic Format Supported||PLT, DXF, BMP, JPG, GIF, PGN, TIF and so on|
|Working Table (DEFAULT)||Fixed Honeycomb / Blade Table|
|1 Air Pump and 1 Water Pump & Chiller||Yes|
|Net Weight||90 KG||150 KG||230 KG|
|Gross Weight||150 KG||250 KG||350 KG|
|Net Size (mm)||880*700*650mm||1300*740*930mm||1410*1020*1010mm|
|Package Size (mm)||980*800*850mm||1400*840*1130mm||1570*1180*1260mm|
|Operating Humidity||5%-95% Free of condensed water|
100% or 40% prepaird before production, balance payment before shipment. (Negotiable）
Bank Wire, Paypal, Western Union, Credit Card, Alibaba.
Machine will be sent out 5-10 working days after receiving the payment.
By Express: 6-10 days.
By sea: 30-45 days. ( Highly Recommended）
International standard plywooden case.
Whole machine has a warranty period of 12 months since the production date.
1~3 working days training free of charge in factory or online training via TeamViewer, Skype, WeChat, FB.
