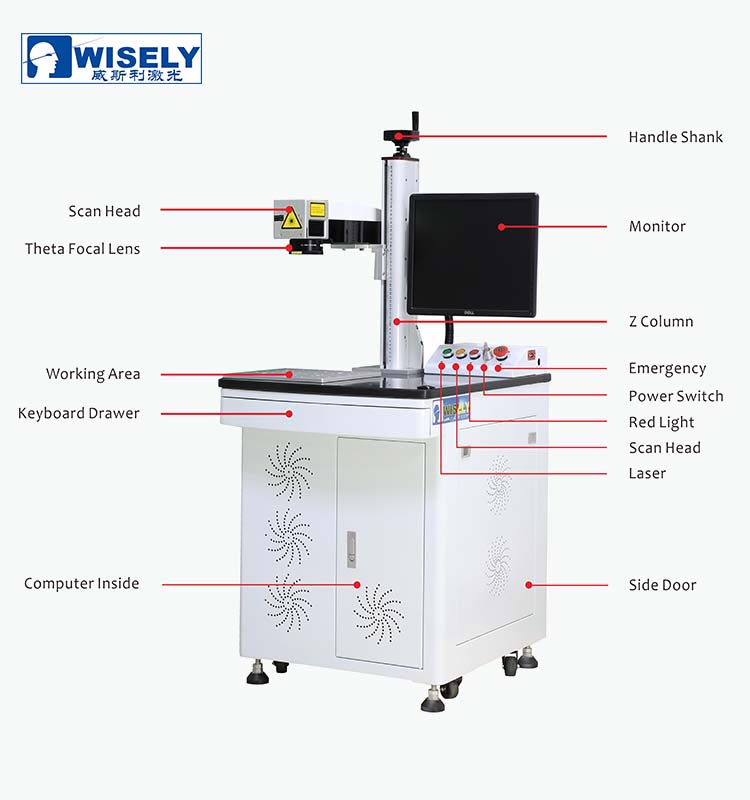

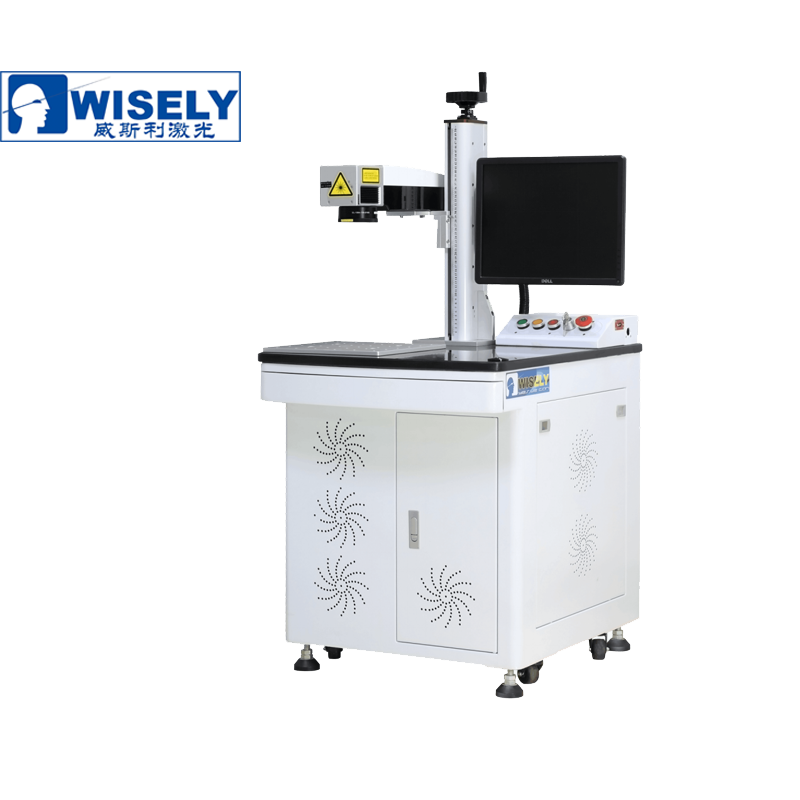

IPG Fiber Laser Marking Machine Type II

WISELY Laser Marking Machine for Metal & Plastics. It can work with most metal marking applications, such as Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many nonmetallic materials, such as ABS, Nylon, PES, PVC, Makrolon, etc.
Contact information

0086-150-1350-9330

  • Technical Parameters




Feature

1) High Precision: Up to 0.0012mm, bring you the fantastic and satisfied marking effect.

2) Superior Laser Beam: The definition is 1 micron, 10 times as that of traditional products.

3) No Consumables: One Fiber marker can work for more than 10 years without any consumables.

4) Fast Speed: 800 standard characters per second, is 3 to 5 times above that of traditional products.

5) The fiber laser beam comes out from the IPG fiber device directly, no need to adjust the laser optical path.

6) Low consumption: <400W, more economized and environmental.

7) Original Scaps controller, High stability, USB interface, swift and stable transmission, route optimization,
     Intelligent Salculation, easy operation.

8) Original ScanLAB scan head, high speed and precision, with good seal, capable to prevent dust and water, small
    Volume and compact.

9) Long lifespan of IPG laser module: 100 000 - 200 000 hours

10) Strong Compatibility: TTF Font, SHX, BMP, DXF, AI, PLT and other format files output from CorelDraw, PS,
      AutoCAD, Solidworks, etc..

11) Integrated Air Cooling System: The cooling effect is more excellent than the water cooling effect in YAG laser,
      No maintenance.

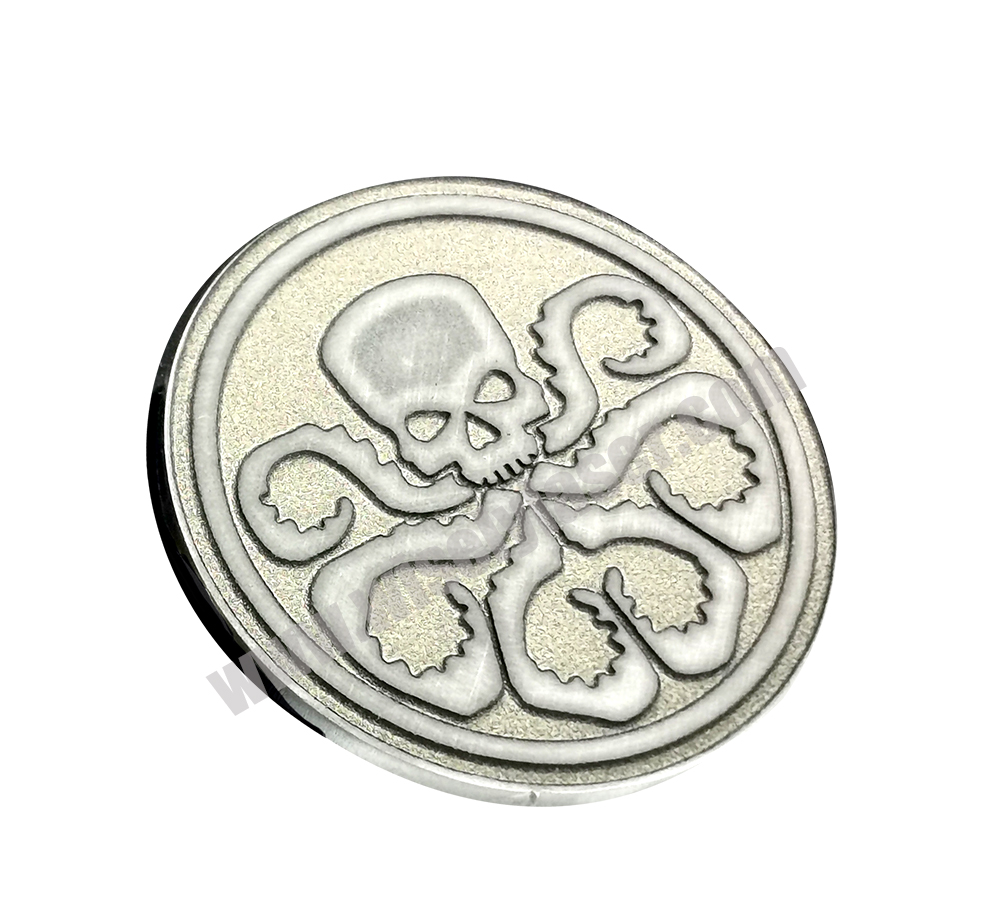

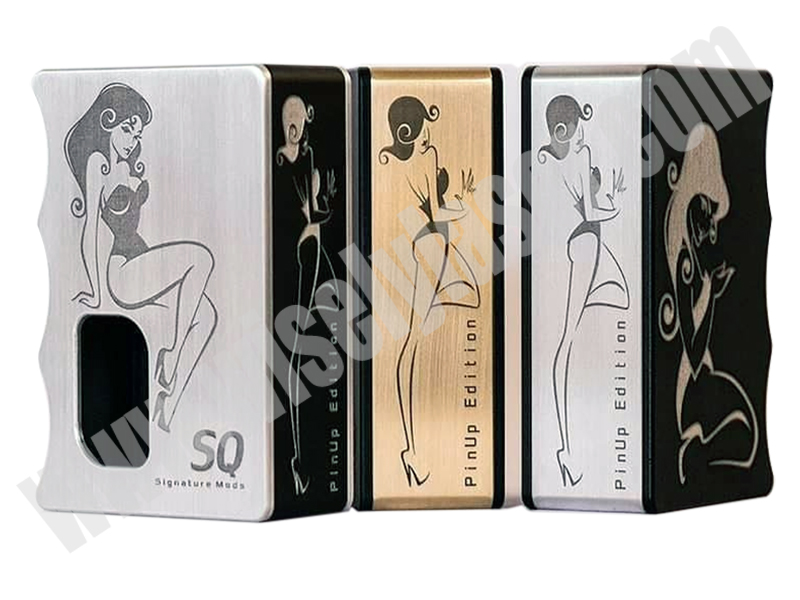

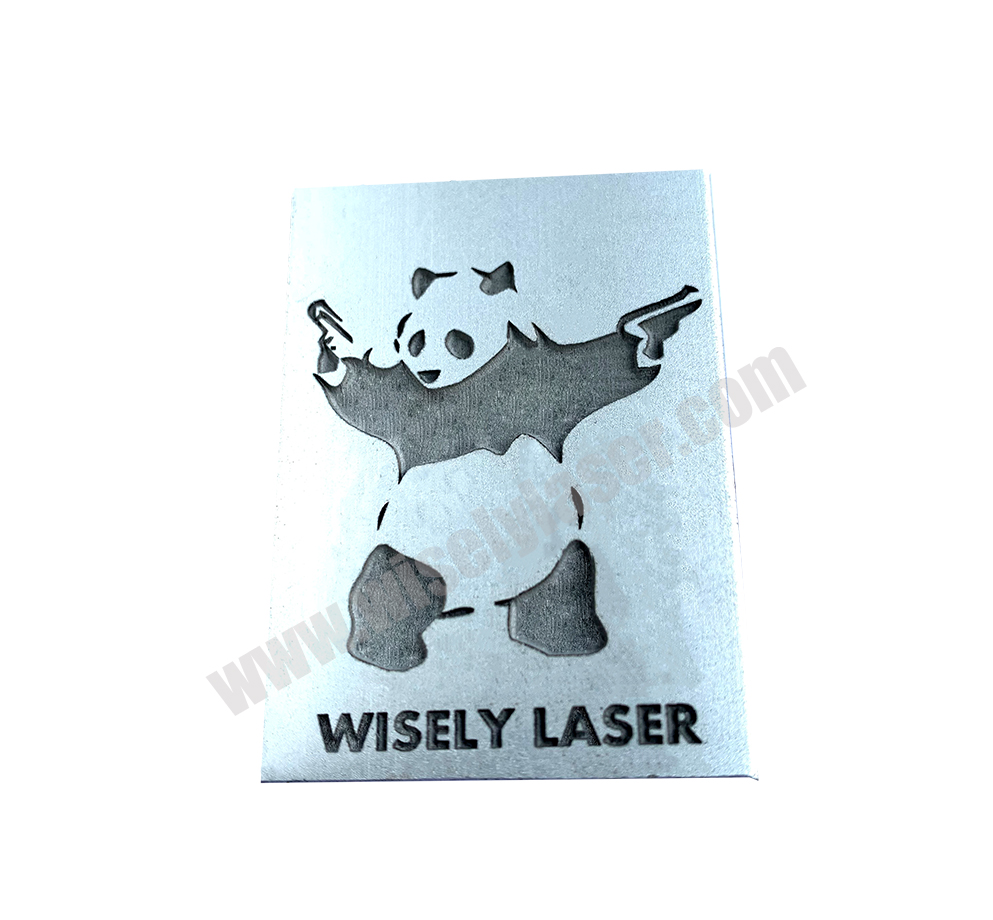

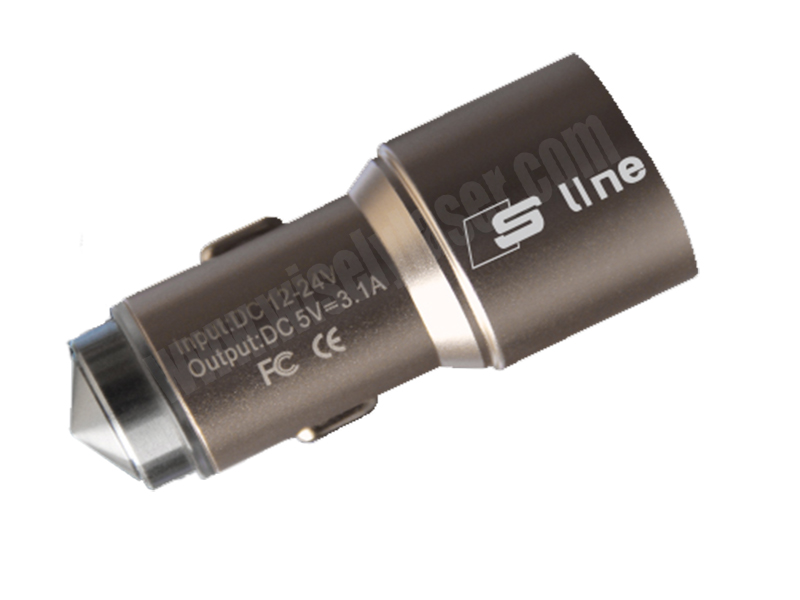

Application
1) Electronic Components:                Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc.

2) Mechanical Parts:                          Bearings, Gears, Standard Parts, Motor, etc.

3) Instrument:                                    Panel Board, Nameplates, Precision equipment, etc.

4) Hardware Tools:                            Knives, Tools, Measuring Tools, Cutting Tools, etc.

5) Automobile Parts:                         Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.

6) Daily Necessities:                         Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.

Technical Parameters

Model MY-M20F-II
Power 20W / 30W / 50W / 100W / 120W
Laser Wave length 1064nm
Standard Marking Area 150mm*150mm
Optional Marking Area 70*70mm /100*100mm /200*200mm /300*300mm /400*400mm
Marking Depth ≤2mm
Marking Speed 7000mm/s
Minimum Line Width 0.012mm
Minimum Character 0.15mm
Repeated Precision ±0.003mm
Fiber Laser Source Original Germany IPG
Scan Head Germany ScanLAB
Controller (software) Germany Scaps
Life span of Fiber Laser Module 100 000-200 000hours
Beam Quality M2<1.3
Focus Spot Diameter <0.01mm
Output Power of Laser 10%~100%
Output Frequency of Laser 20~80KHz
Power Stability (8h) <±1.5%rms
System Operation Environment Windows XP / 7 / 8 / 10 / 11 - 32 / 64bits
Cooling Mode Aircooling--Built-in
Voltage 220V/50HZ/1-PH or 110V/60HZ/1-PH
Power Requirement <450W
Dimension (L*W*H) 850*700*1360mm
Package Size 950*950*1050mm(Air shipping) / 1000*900*1550mm(Sea shipping)
Net Weight 145KG
Gross Weight 185KG


Optional Devices

Optional Devices-Fiber-水印.png

























payment

100% or 40% prepaird before production, balance payment before shipment. (Negotiable)

Bank Wire, Paypal, Western Union, Credit Card, Alibaba.


Shipment

Machine will be sent out 7-10 working days after receiving the payment.

By Express: 6-10 days.

By Sea: 30-45 days. (Recommended)


Packaging

International standard plywooden case.


Warranty

Whole machine has a warranty period of 24 months since the production date.


Training

1~3 working days training free of charge in factory or online training via TeamViewer, Skype, WeChat, FB.
