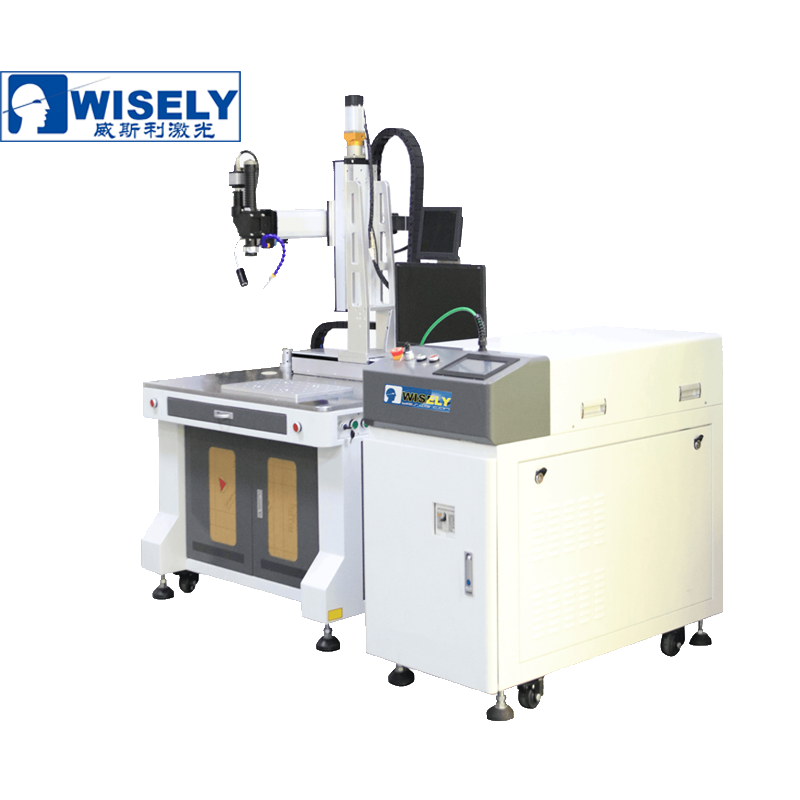

Optical Fiber Transmission Welding Machine

Optical Fiber Transmission Welding Machine

WISELY Welding laser machine can work with most metal and non-metallic marking applications, such as Gold, Silver, Stainless Steel, Carbon Steel, Mild Steel, Chrome Steel, Brass, Copper, Aluminium, Titanium, Die Steel, Alloys, etc. and some plastic.
Contact information

0086-150-1350-9330

  • Technical Parameters



Sample Gallery


Applicable Industries
Electronic Components:                 Phones cases, Capacitors, Chips, Connector, IT industry component etc.

Mechanical Parts:                           Bearings, Gears, Automobile Parts, Clutch, Motor, etc.

Instrument:                                     Sensor, Panel Board, , Precision equipment, etc.

Hardware Tools:                             Knives, Tools, Measuring Tools, Cutting Tools, etc.

Daily Necessities:                           Handicrafts, Zipper, Kettle, Mug, Faucet, Sanitary Ware, etc.

Others:                                            Battery, Mold, Jewelry, Glasses Frames, Plastic, etc.


Advantages

1) Compact structure, long lifespan, high speed, no maintenance.

2) No preheating is required. Low consumption, more economized and environmental.

3) Small solder joint diameter,small heat affected zone, suitable for all small sizes high precision products.

4) Very convenient and quick without separation work., welding on the workpiece and repaired it directly.

5) Fast heating and cooling speed, the heat affected area is small, and the aspect ratio is large.

6) The laser head can be moved back and forth, Motorized Up/Down and Adjustable XYZ.


Technical Parameters
Type WL-YW400
Laser Power 400W
Optional Laser Power 200/300/400/500/600W
Working Substance Nd:YAG
Laser Wavelength 1064nm
Working Area 100*100mm
Maximum Single Pulse 80J / 20ms
Power Comsuption <12kw
Maximum Welding Depth 3mm
Maximum Spot Diameter 2mm
Power Stability (8h) <±3%rms
Pulse Width 0.15-20ms
Pulse Frequency 0-50/100HZ
Repeated Precision ±0.01mm
Transmission fiber wire Original Japan Mitsubishi Φ0.4 / Φ0.6
Positioning method Red light
Voltage 380V±5% / 50Hz 50A
Cooling water 5HP Chiller 10L/min
Power Control System Single Chip Microcomputer
Observation System Microscope
Dimension (L*W*H) 1300*900*1600mm
Package Size 1400*1000*1750mm
Net Weight 450KG
Gross Weight 600KG
Optional (Not free of charge) Rotary Device, XY Moving Table, other customized Automatic Matching System
Shipment

Within 3~5 working days after receiving your payment.

Packaging

International Standard Packing--Plywooden Case--free of fumigation.


Warranty

Whole machine has a warranty period of 24 months since the production date.

Training

1~3 working-days training free of charge in factory. The buyer can discuss the details with WISELY salesman.
