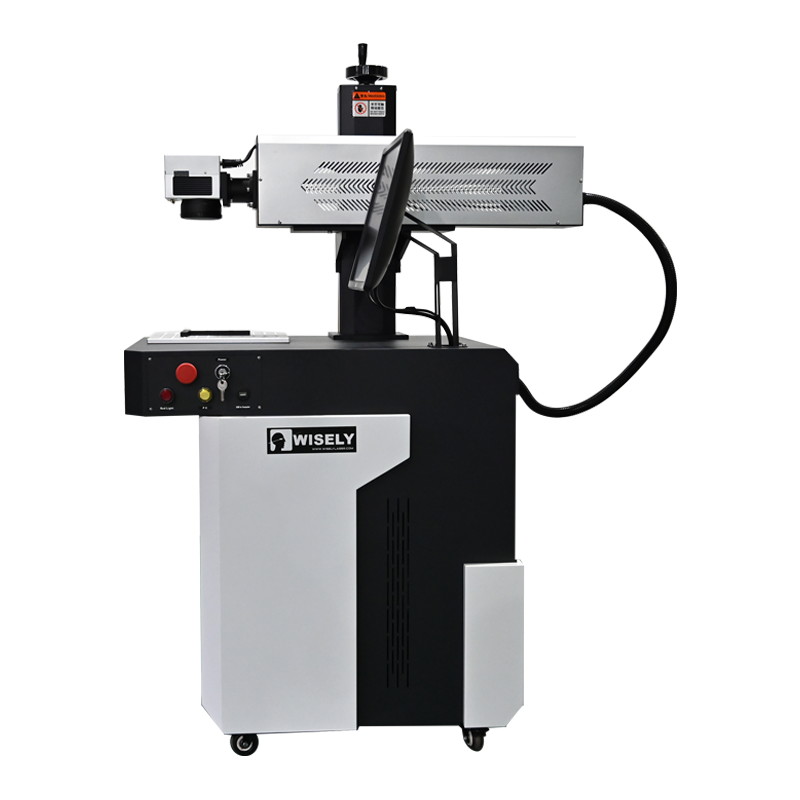

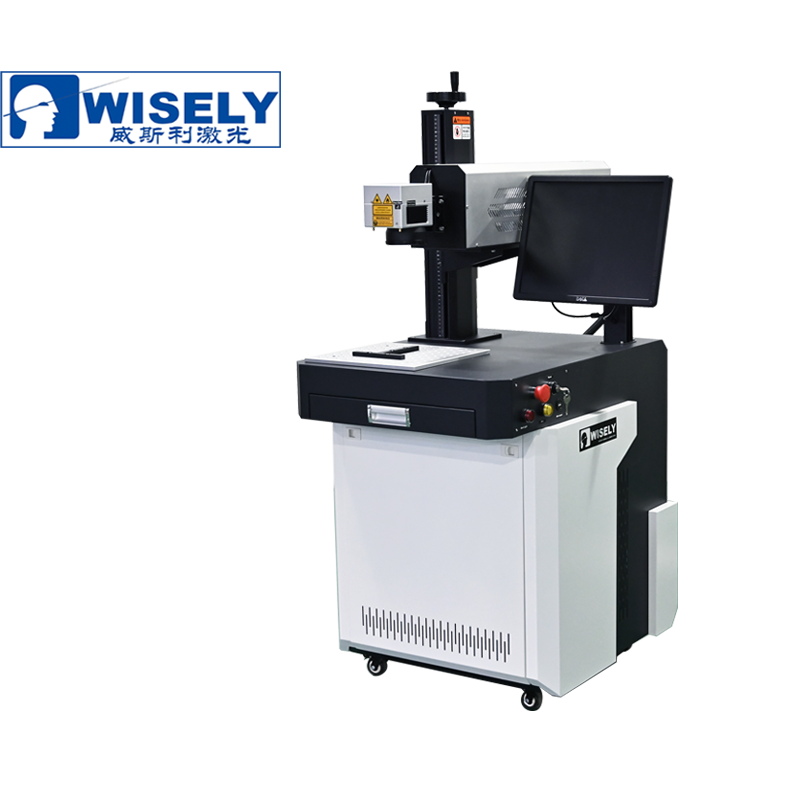

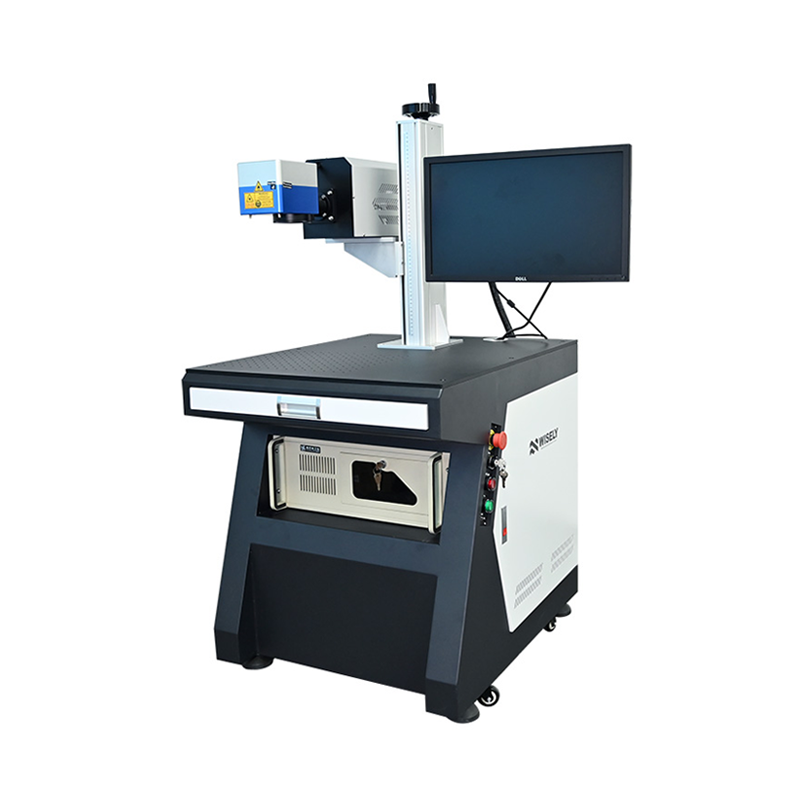

RF CO2 Laser Marking Machine -Type II

Portable CO2 Laser Marking Machine adopts the RF CO2 laser source imported from  USA SYNRAD / Coherent, equipped with high-speed galvanometer scanning system, with superior laser beam, small divergence angle and integrated laser structure. It's convenient to maintenance, stable performance, high reliability and long lifespan ( max 45,000 hours). The equipment is low processing cost, without any consumption, large marking area, high efficiency.
Contact information


  • Technical Parameters


Sample Gallery

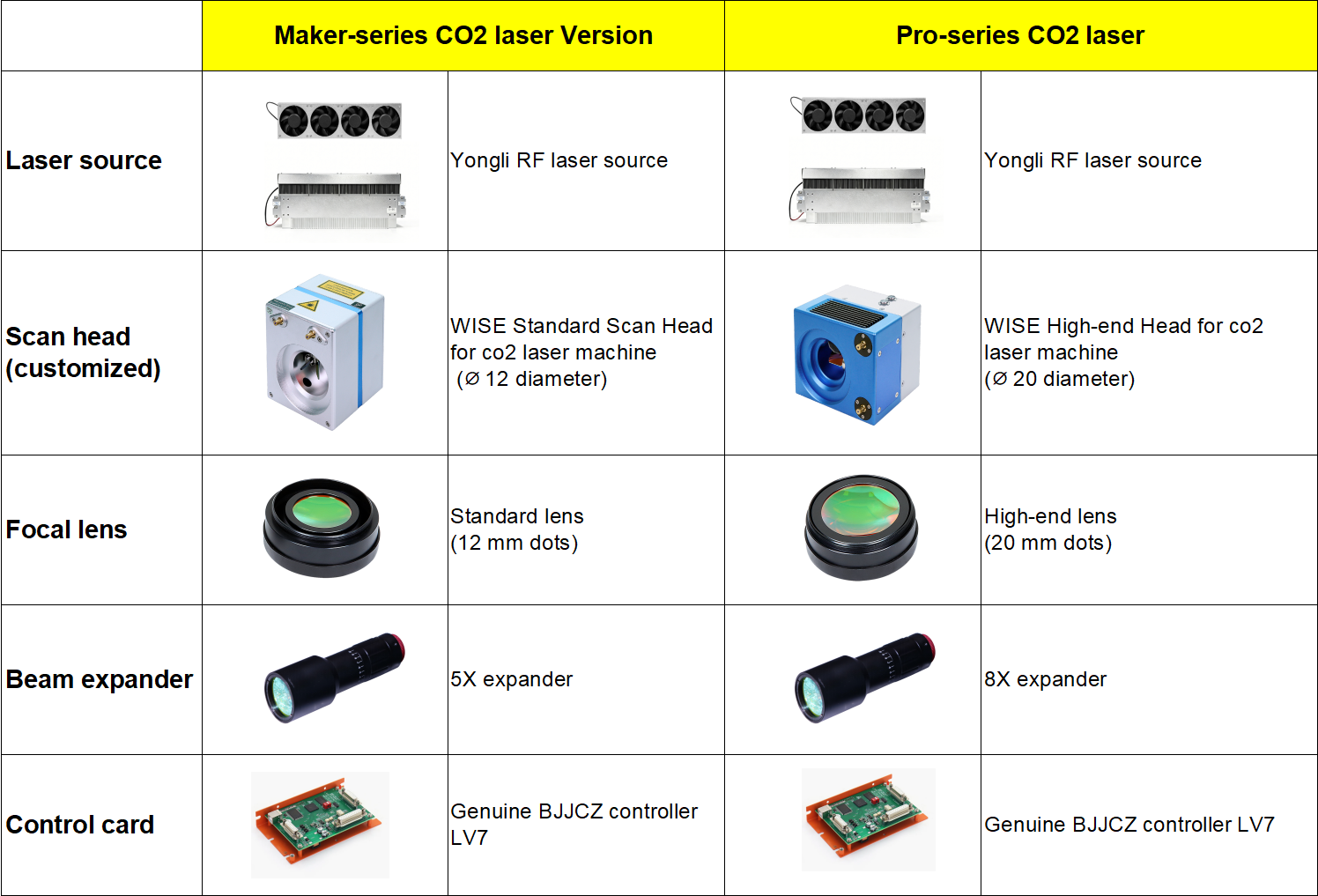

Main Configurations



1) Adopted the imported CO2 laser tube, its beam is of superior quality, stable light and low failure rate.

2) Coordinated with the excellent servo motor, the high-speed scanning galvanometer is of high marking speed and precision.

3) The industrial control computer has strong capacity of resisting disturbance, assuring the stable work during the long period
     Of industrial environment.

4) With powerful and friendly controller and software, easy operation, raise the working efficiency.

5) With reasonable and whole structure design, better stability and higher reliability.

6) SYNRAD / COHERENT tube can be refilled, excellent performance, longer life (Max. 45000 hours) and without maintenance.

7) High-precision and high-speed scan head, with good seal, capable to prevent dust and water, small volume, compact.

8) Strong compatibility, TTF Font, SHX, BMP, DXF, AI, PLT and other format file output from CorelDraw, PhotoShop, AutoCAD, etc..


Materials: Most of Non-metallic materials such as ceramics, ABS, acrylic, plastic, bamboo, organic materials, epoxide resin, glass, wood, and paper, etc.

Field: Woodworks, craft gifts, electronic components, clothes, leather products, paper, medicines, food and package, etc.

Technical Parameters

Power30W / 60W / 100W
Marking Area110*110mm
Optional Marking Area70*70mm / 140*140mm / 200*200mm / 250*250mm / 300mm*300mm
Marking Depth≤5mm Acrylic
Minimum Line Width0.10mm
Minimum Character0.3mm
Repeated Precision± 0.01mm
Laser Wavelength10.6um
CO2 Laser SourceCOHERENT
Optional Laser SourceSYNRAD or CRD
Controller and Software (EZCAD)Beijing JCZ controller and EZCAD Software
Scan HeadGalvo tech from China
Marking Speed≤ 7,000mm/s
Repeated Frequency of Laser≦100KHz
Marking TypeDynamic Mark / Static Mark
System Operation EnvironmentWindows XP / 7 / 8 / 10-32 / 64bits
Cooling ModeAir cooling--Built-in
Temperature of Operation15℃~35℃
Communication InterfaceUSB
Lifespan of CO2 TubeMax.45,000 hours
Voltage220V/50HZ/1-PH or 110V/60HZ/1-PH
Power Consumption1.2KW
Package Size130*95*165cm
Net Weight194kg
Gross Weight290kg

Optional Devices
Optional Devices-Fiber-水印.png


Within 3~5 working days after receiving your payment.


International Standard Packing--Plywooden Case--free of fumigation.


Whole machine has a warranty period of 24 months since the production date.


1~3 working-days training free of charge in factory. The buyer can discuss the details with WISELY salesman.
