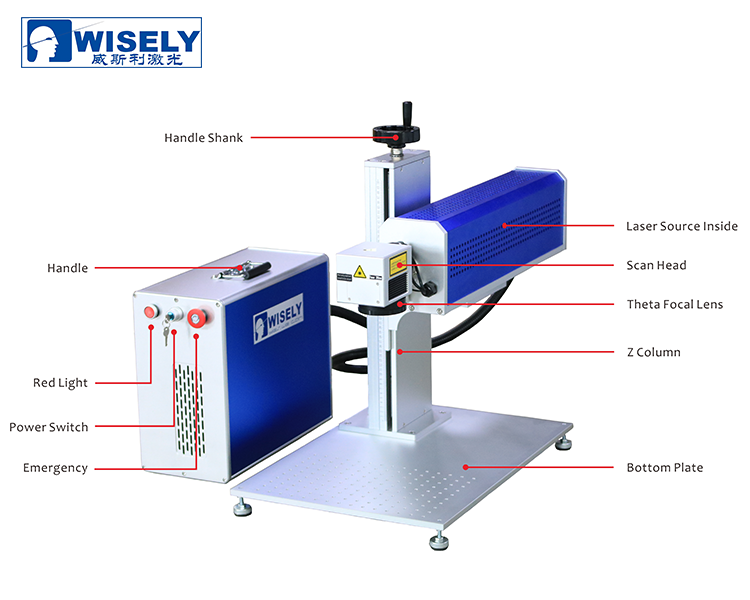

The portable CO2 Laser Marking Machine adopts an RF CO2 laser source from Coherent(US) & YongLi(China), equipped with a high-speed galvanometer scanning system, with a superior laser beam, a small divergence angle, and an integrated laser structure. It's easy to maintain stable performance, high reliability, and long lifespan ( max 45,000 hours). The equipment is low operating cost, no consumables, a large marking area, and high efficiency.
0086-150-1350-9330
More Video Links:
CO2 laser marking machine videos: https://www.youtube.com/playlist?list=PLzHZLfB8KONGaHoKbg9Q0i68iAjqVIlrT
1. Wood deep engraving at fast speed by 60W Galvo CO2 laser: https://youtu.be/tRuxTGP7ErY
2. Cermark on stainless steel - Wisely Laser CO2 Laser Painting Test: https://youtu.be/kq9ONFJURbg

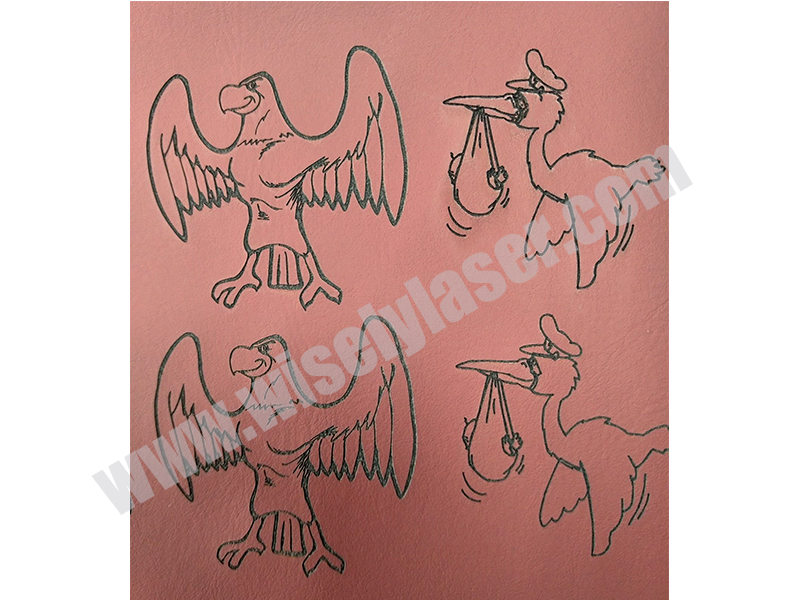

3. Leather marking high-speed: https://youtu.be/XKYtWmgwA2E
4. Acrylic & glass fast marking by Galvo CO2 laser: https://youtu.be/xES4jwxetR8
5. Wood engraving by 30W high-end series Galvo CO2 laser: https://youtu.be/l3_ToITyy74
6. 3D Wedding Invitations Greeting Cards Laser Cutting: https://youtu.be/r9WsNVdWEyo
7. Cutting Wedding Invitation Cards - 3D Galvo Laser Cutter: https://youtu.be/HPTPCkiRdzQ

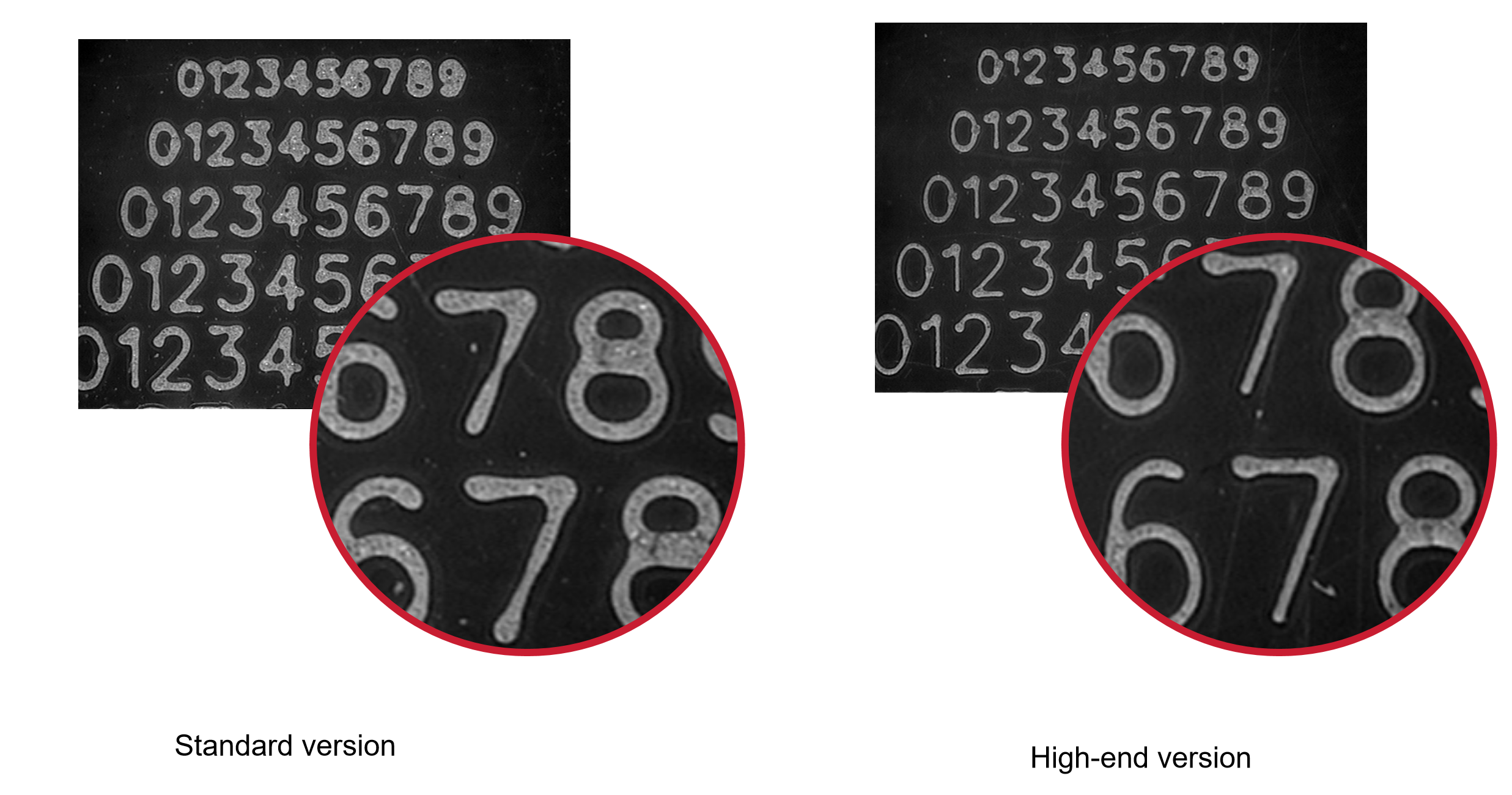

Marking effect comparison
*Comparison of small character marking
*Effects on acrylic： Character height: 0.5 mm - 0.9 mm
Features
1) Adopted the imported CO2 laser tube, its beam is of superior quality, stable output and low failure rate.
2) Coordinated with the excellent servo motor, the high-speed scanning galvanometer is of high marking
speed and precision.
3) The industrial control computer has a strong capacity of resisting disturbance, assuring the stable work during the long Period of the industrial environment.
4) With a powerful and friendly controller and software, easy operation, and an increase in working efficiency.
5) With a reasonable and whole structure design, better stability and higher reliability.
6) CRD / COHERENT tube is refillable, excellent performance, longer life (Max. 45000 hours) and without maintenance.
7) High-precision and high-speed scan head, with a good seal, capable of preventing dust and water, small volume, compact.
8) Strong compatibility, TTF Font, SHX, BMP, DXF, AI, PLT and other file formats export from CorelDraw, PhotoShop,
AutoCAD, etc.
Applications
| Glass | Wood | Paper | Rubber | Leather |
| Building Ceramics | PVC |
Acrylic |
Bamboo Products | ABS |
Technical Parameters
| Model |
WSL-M30C-III WSL-M50C-III |
||||||||||
| Power | 30W / 50W / 60W / 100W | ||||||||||
| Marking Area | 110*110mm | ||||||||||
| Optional Marking Area | 70*70mm /140*140mm /200*200mm /250*250mm /300mm*300mm | ||||||||||
| Marking Depth | ≤5mm Acrylic | ||||||||||
| Minimum Line Width | 0.10mm | ||||||||||
| Minimum Character | 0.3mm | ||||||||||
| Repeat Precision | ± 0.01mm | ||||||||||
| Laser Wavelength | 10.6um | ||||||||||
| CO2 Laser Source | YongLi | ||||||||||
| Optional Laser Source | Coherent (Us) | ||||||||||
| Controller and Software (EZCAD) | JCZ Controller & EzCAD2 Software (Optional: EzCAD3 /SAMLight /LightBurn) | ||||||||||
| Scan Head | Galvo-Tech / WISE SCAN from China | ||||||||||
| Marking Speed | ≤ 7,000mm/s | ||||||||||
| Repetition Frequency of Laser | 1-25KHz | ||||||||||
| Marking Type | Dynamic Mark / Static Mark | ||||||||||
| System Operation Environment | Windows 10 /11-32 / 64bits | ||||||||||
| Cooling Mode | Air Cooling | ||||||||||
| Temperature of Operation | 0℃~45℃ | ||||||||||
| Communication Interface | USB | ||||||||||
| Lifespan of CO2 Tube | Max.45,000 hours | ||||||||||
| Voltage | 220V/50HZ/1-PH or 110V/60HZ/1-PH | ||||||||||
| Power Consumption | 1.2KW | ||||||||||
| Dimension | 900mm*680mm*700mm | ||||||||||
| Package Size | 1050mm*750mm*950mm | ||||||||||
| Net Weight | 50kg | ||||||||||
| Gross Weight | 80kg | ||||||||||

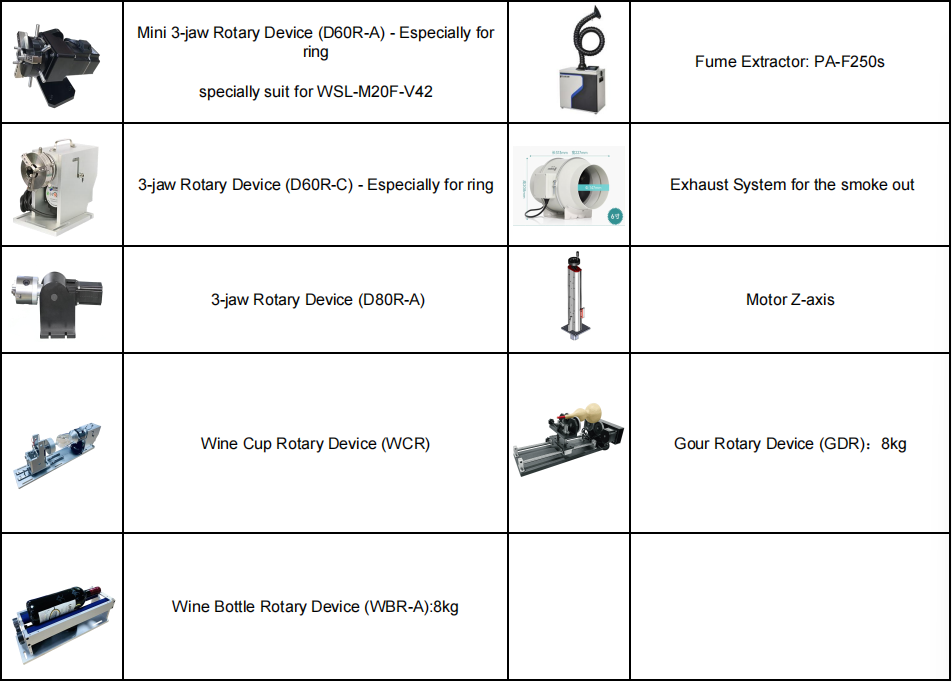

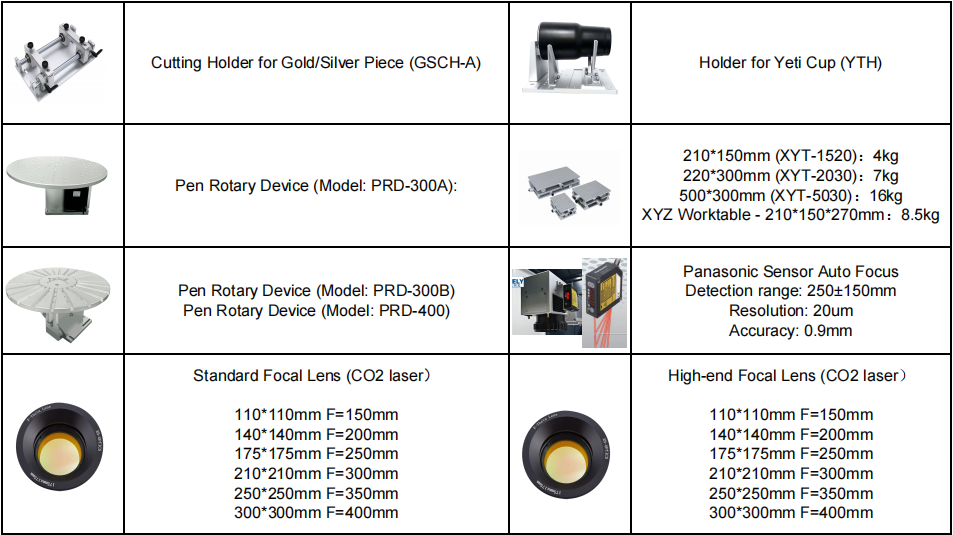

Optional Devices
Payment
Payment: 100% payment before production; Or 50% advance payment before production, 50% balance before delivery.
T/T, PayPal, Western Union, Credit Card, Alibaba.
Shipment
The machine will be sent out within 3-6 working days after receipt of payment
By Express: 6-10 days. (Highly Recommended)
By Sea: 30-45 days.
Packaging
International standard plywood box / anti-shock paper box
Warranty
1. Warranty coverage applies only if the part is found to be defective due to non-human factors, and not as a result of misuse, mishandling, or unauthorized modifications.
2. Wisely will send you the parts and bear the shipping cost from WISELY to the buyer's site if the machine has a quality problem within 7 days after the buyer receives it.
3. Warranty period: 24 months (2 years)
Training
Detailed user manual & step-by-step operation videos
Fast response (16 hours/day online support)
Real-time remote guidance via TeamViewer, Skype, or WhatsApp
