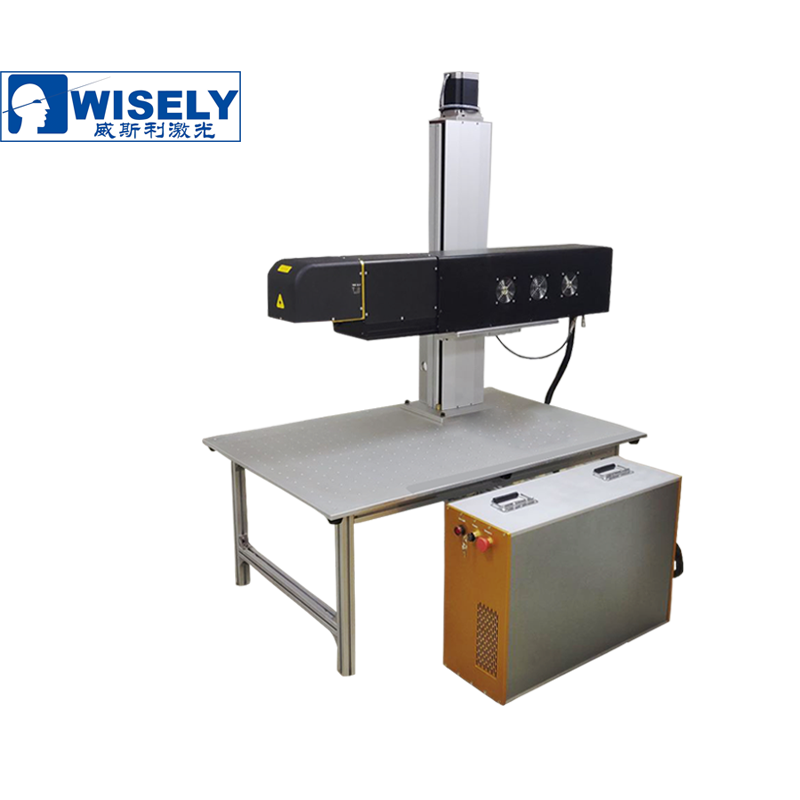

3D Galvo CO2 Laser Marking Machine

3D CO2 Laser Marking Machine adopts the RF CO2 laser source imported from  USA SYNRAD / Coherent, equipped with high-speed galvanometer scanning system, with superior laser beam, small divergence angle and integrated laser structure. It's convenient to maintenance, stable performance, high reliability and long lifespan ( max 45,000 hours). The equipment is low processing cost, without any consumption, large marking area, high efficiency.
Contact information

0086-150-1350-9330

  • Technical Parameters



Feature

1) Adopted the imported CO2 laser tube, its beam is of superior quality, stable light and low failure rate.

2) Coordinated with the excellent servo motor, the high-speed scanning galvanometer is of high marking speed and precision.

3) The industrial control computer has strong capacity of resisting disturbance, assuring the stable work during the long period of industrial environment.

4) With powerful and friendly controller and software, easy operation, raise the working efficiency.

5) With reasonable and whole structure design, better stability and higher reliability.

6) SYNRAD / COHERENT tube can be refilled, excellent performance, longer life (Max. 45000 hours) and without maintenance.

7) High-precision and high-speed scan head, with good seal, capable to prevent dust and water, small volume, compact.

8) Strong compatibility, TTF Font, SHX, BMP, DXF, AI, PLT and other format file output from CorelDraw, PhotoShop, AutoCAD, etc..

Application

Materials: Most of Non-metallic materials such as ceramics, ABS, acrylic, plastic, bamboo, organic materials, epoxide resin, glass, wood, and paper, etc.

Field: Woodworks, craft gifts, electronic components, clothes, leather products, paper, medicines, food and package, etc.


Technical Parameters

Model MY-M30C-3D
Power 30W / 60W / 100W
Marking Area 110*110mm
Optional Marking Area 70*70 / 140*140 / 200*200 / 250*250 / 300*300 / 400*400 / 500*500 / 600*600mm
Marking Depth ≤5mm Acrylic
Minimum Line Width 0.10mm
Minimum Character 0.3mm
Repeated Precision ± 0.01mm
Laser Wavelength 10.6um
CO2 Laser Source COHERENT
Optional Laser Source SYNRAD or CRD
Controller and Software (EZCAD) JCZ Controller and EZCAD Software
Scan Head WISELY SCAN
Marking Speed ≤ 7,000mm/s
Repeated Frequency of Laser ≦100KHz
Marking Type Dynamic Mark / Static Mark
System Operation Environment Windows XP / 7 / 8 / 10-32 / 64bits
Cooling Mode Air cooling--Built-in
Temperature of Operation 15℃~35℃
Communication Interface USB
Lifespan of CO2 Tube Max.45,000 hours
Voltage 220V/50HZ/1-PH or 110V/60HZ/1-PH
Power Consumption 1.2KW
Demension 121*86*154cm
Package Size 130*95*165cm
Net Weight 194kg
Gross Weight 290kg


Optional Devices

Optional Devices-Fiber-水印.png

























payment

100% or 40% prepaird before production, balance payment before shipment. (Negotiable)

Bank Wire, Paypal, Western Union, Credit Card, Alibaba.

Shipment

Machine will be sent out 5-10 working days after receiving the payment.

By Express: 6-10 days.

By Sea: 30-45 days. (Recommended)


Packaging

International standard plywooden case.


Warranty

Whole machine has a warranty period of 12 months since the production date.


Training

1~3 working days training free of charge in factory or online training via TeamViewer, Skype, WeChat, FB.
