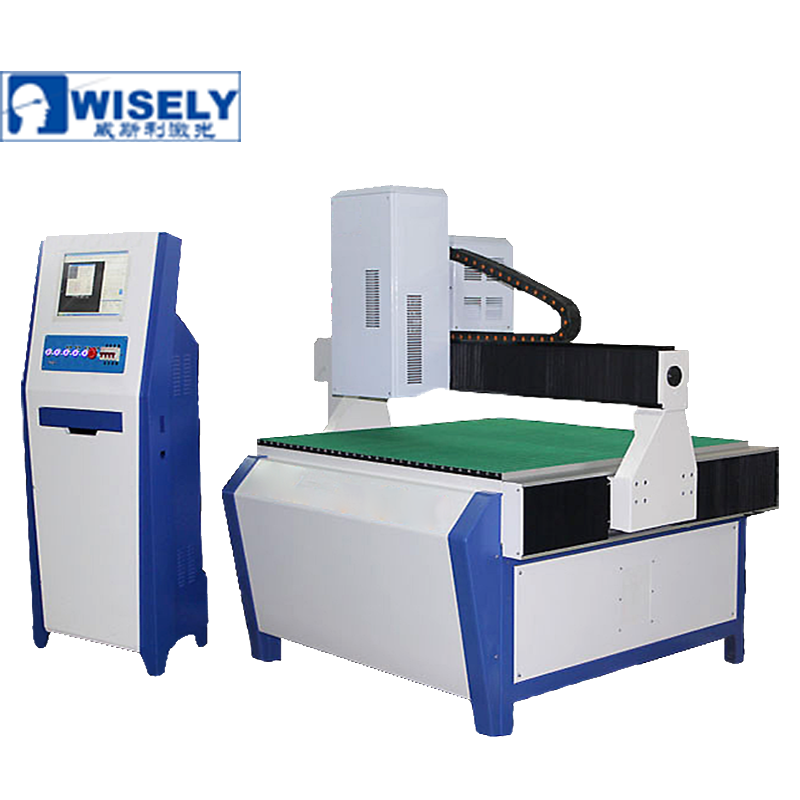

Glass Engraving, Galvohead Glass Laser Engraving Machine 1325

3D Glass Engraving. Sub-surface glass laser engraving machine, for building glass, glass wall, glass door, glass window. Max engraving area: 1300*2500mm.
Contact information

0086-150-1350-9330

  • Technical Parameters



Feature

1. Environmental protection. No water, no fume, no smoke, no dust, no chemistry material and very low noise while working.

2. Low cost to process, Low power cosumption, mass production available.

3. High marking/engraving speed, high processing efficiency, High flatness, less than 0.3mm.

4. Superfine marking/engraving effect, the finished product can be displayed in high-end places.

5. Easy operation, 3-days training for a new beginner is enough, one operator can control 5 sets of machine.

6. Humanization design, convenient to load & unload glass via 50 pcs of universal wheels and air cylinder which controls the work table.

7. Long lifespan, one machine can be used for more than 3 years.


Applicable Industry

1. Advertising

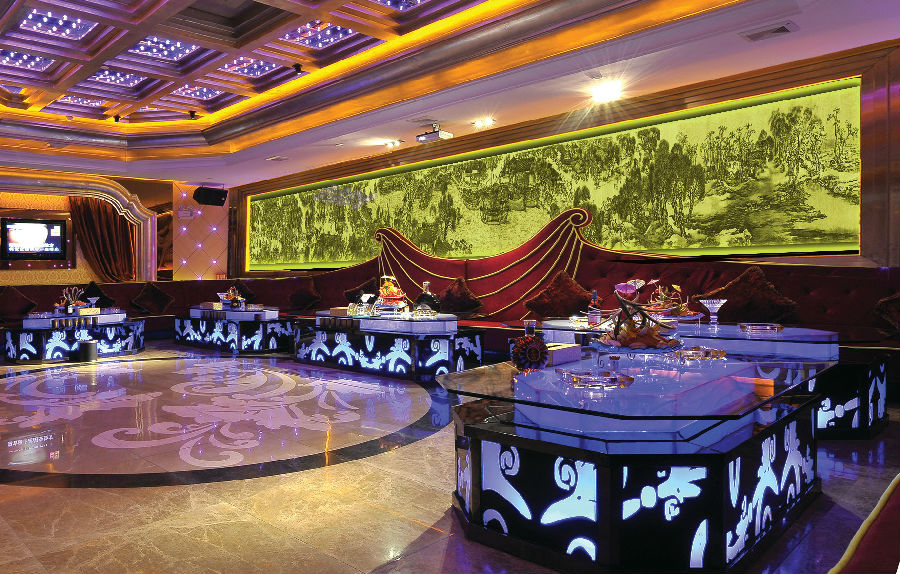

2. Building partition decoration

3. Household appliances

4. Home furnishings

5. Art photo viewing

6. Industrial glass design

Technical Parameters

Type MY-M1280G MY-M1325G MY-M1530G
Marking Area 1200*800*110mm 2500*1300*110mm 3000*1500*110mm
Frequency 4500HZ
Marking Speed 280 000 dots/min
Laser Source Semiconductor DIODE
Laser Wavelength 532nm
Max. Pulse Engery 1.2mj
Beam Quality ㎡< 1.5
Pulse Width 7ns
Engraving Dot Space 0.06-0.12mm 0.06-0.12mm 0.08-0.15mm
Dot Size in glass/acrylic 40-80μm 80-120μm 80-120μm
Resolution 800-1200 DPI
Quantity of Laser Head ONE
Axis-Moving X, Y, Z + galvo scanner XY
X, Y and Z axis Taiwan Ballscrew and Linear Guiderail
Positioning Accuracy <0.02mm
Repeating Positioning Accuracy ±0.001mm
Lifespan of Laser Souce 25000 hours
Continous Working Time 24Hrs / Day
Software Independent-development software for 3D, 2D dots cloud and machine control
Software Language English, Portuguese, Russian, Arabic and Chinese
Cooling Mode Air cooling
Operation Environment Temperature 15℃-30℃, Humidty 10-70%, non-condensed
Power Input AC220V / 50HZ / 1-PH / 5A or 110V / 60HZ / 1-PH / 5A
Computer Requested There will be one PC with the machine
Power Comsuption 1500W 1800W 1800W
Dimesion 1650*1850*1750mm 1950*2000*2750mm 2000*3300*2750mm
Package Size 1800*2020*1900mm 1760*3280*1750mm 2200*3450*2900mm
Net Weight (approximate) 600KG 1500KG 1700KG
Gross Weight (approximate) 800KG 1900KG 2200KG

payment

100% or 40% prepaird before production, balance payment before shipment. (Negotiable)

Bank Wire, Paypal, Western Union, Credit Card, Alibaba.

Shipment

Machine will be sent out 3-7 working days after receiving the payment.

By Express: Don't Support.

By Sea: 30-45 days.


Packaging

International standard plywooden case.


Warranty

Whole machine has a warranty period of 24 months since the production date.


Training

1~3 working days training free of charge in factory or online training via TeamViewer, Skype, WeChat, FB.
