Enclosed CO2 Laser Marking Machine

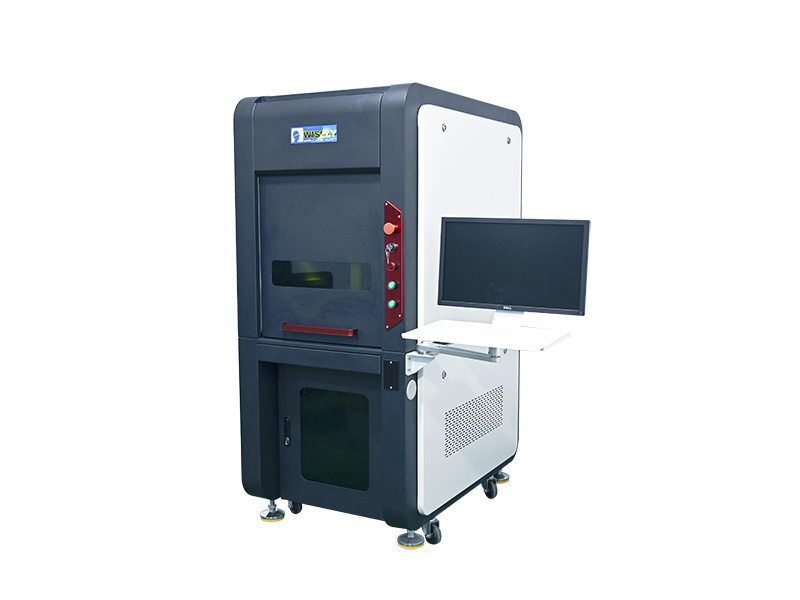

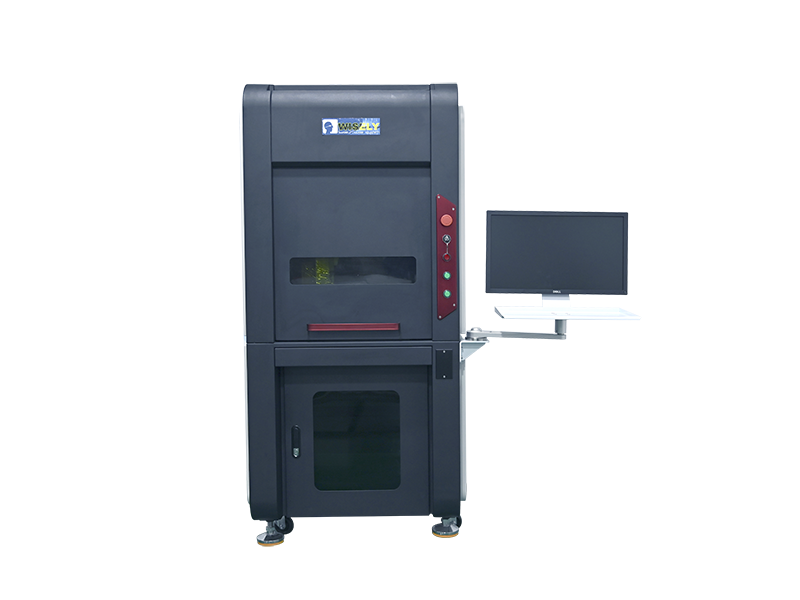

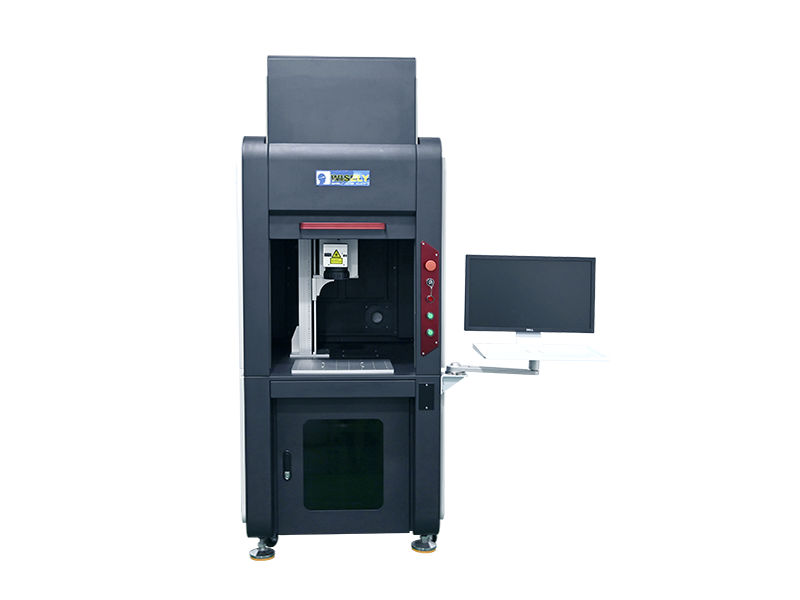

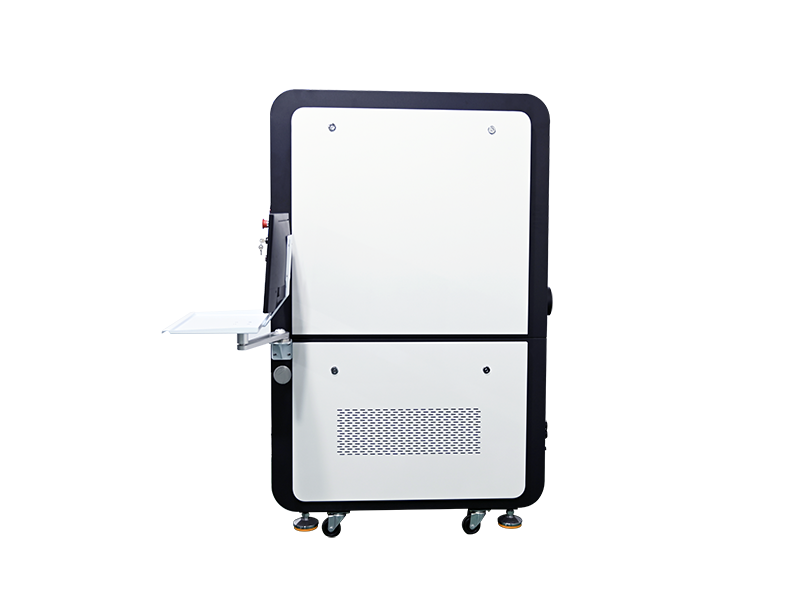

Fully enclosed structure design, with a sturdy protective shell, protect the operator from laser radiation. CO2 Laser Marking Machine adopts the RF CO2 laser source imported from CRD / Coherent, equipped with high-speed galvanometer scanning system, with superior laser beam, small divergence angle and integrated laser structure. It's convenient to maintenance, stable performance, high reliability and long lifespan ( max 45,000 hours). The equipment is low processing cost, without any consumption, large marking area, high efficiency.
Contact information


  • Technical Parameters


1) Adopted the imported CO2 laser tube, its beam is of superior quality, stable light and low failure rate.

2) Coordinated with the excellent servo motor, the high-speed scanning galvanometer is of high marking speed and precision.

3) The industrial control computer has strong capacity of resisting disturbance, assuring the stable work during the long period of industrial environment.

4) With powerful and friendly controller and software, easy operation, raise the working efficiency.

5) With reasonable and whole structure design, better stability and higher reliability.

6) CRD / COHERENT tube can be refilled, excellent performance, longer life (Max. 45000 hours) and without maintenance.

7) High-precision and high-speed scan head, with good seal, capable to prevent dust and water, small volume, compact.

8) Strong compatibility, TTF Font, SHX, BMP, DXF, AI, PLT and other format file output from CorelDraw, PhotoShop, AutoCAD, etc..


Materials: Most of Non-metallic materials such as ceramics, ABS, acrylic, plastic, bamboo, organic materials, epoxide resin, glass, wood, and paper, etc.

Field: Woodworks, craft gifts, electronic components, clothes, leather products, paper, medicines, food and package, etc.


 Model MY-M30C-V
 Power 30W / 60W / 100W
 Marking Area 140*140mm
 Optional Marking Area   70*70mm / 110*110mm / 200*200mm / 250*250mm / 300mm*300mm
 Marking Depth   ≤5mm Acrylic
 Minimum Line Width   0.10mm
 Minimum Character   0.3mm
 Repeated Precision  ± 0.01mm
 Laser Wavelength   10.6um
 CO2 Laser Source  COHERENT
 Optional Laser Source CRD / YONGLI
 Controller and Software (EZCAD) JZC Controller & EzCAD2 Software from China  (Optionlal EzCAD3 or SAMLight)
 Scan Head Galvo-Tech / WISE SCAN from China
 Marking Speed   ≤ 7,000mm/s
 Repeated Frequency of Laser   1-200KHZ
 Marking Type Dynamic Mark / Static Mark
 System Operation Environment   Windows XP / 7 / 8 / 10 / 11-32 / 64bits
 Cooling Mode   Air cooling
 Temperature of Operation 15℃~35℃
 Communication Interface USB
 Lifespan of  CO2 Tube Max.45,000 hours
 Voltage 220V / 50HZ / 1-PH or 110V / 60HZ / 1-PH
 Power Consumption      1.2KW
 Demension 1180*800*1700mm
 Package Size 1350*950*1950mm
 Net Weight 260KG
 Gross Weight 380KG
 Optional (Not free of charge) Rotary Device, Moving Table, Lens, Fume Purifier, other customized Automatic Matching System

100% or 40% prepaird before production, balance payment before shipment. (Negotiable)

Bank Wire, Paypal, Western Union, Credit Card, Alibaba.


Machine will be sent out 3-6 working days after receiving the payment.

By Express: 6-10 days.

By Sea: 30-45 days. (Recommended)


International standard plywooden case.


Whole machine has a warranty period of 24 months since the production date.


1~3 working days training free of charge in factory or online training via TeamViewer, Skype, WeChat, FB.
