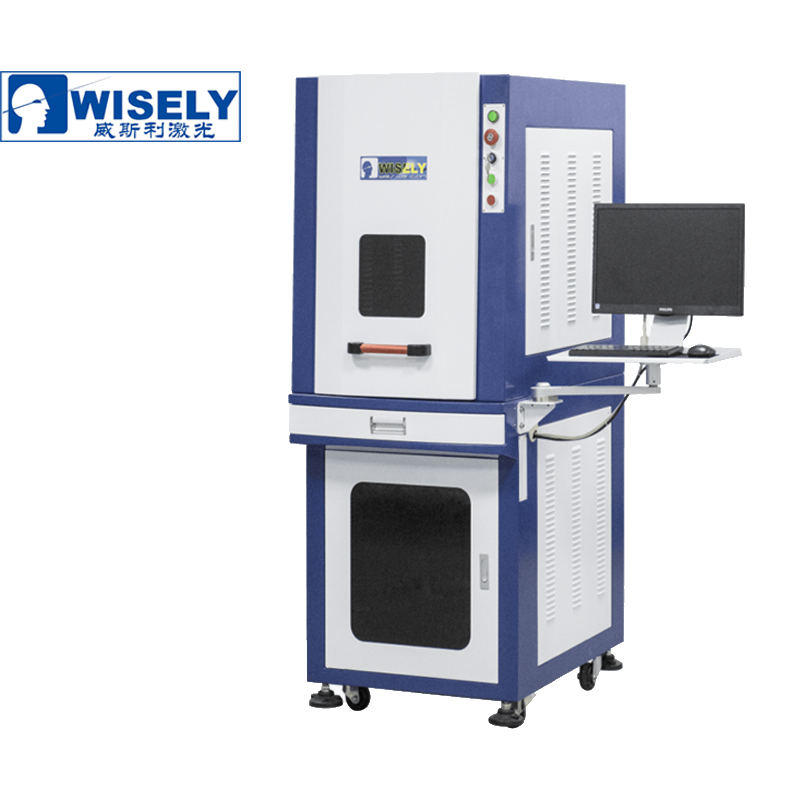

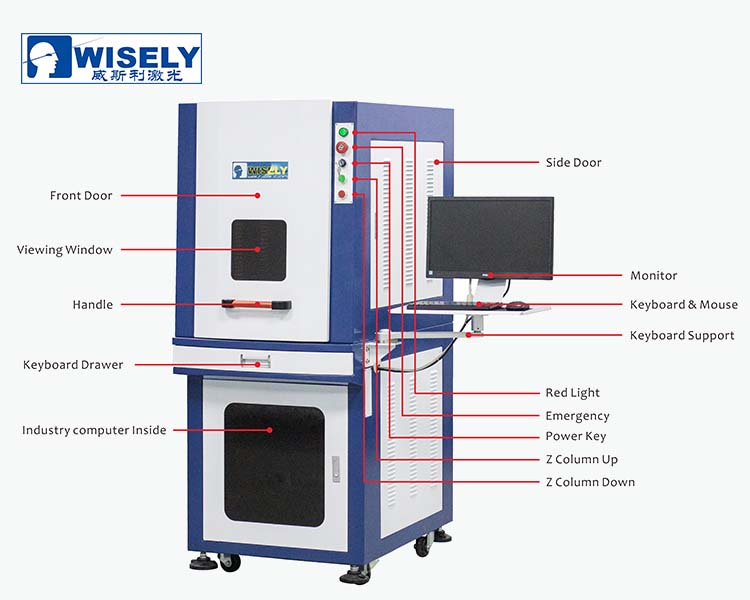

Fully enclosed structure design, with a sturdy protective shell, protect the operator from laser radiation. Color Laser Engraving Machine can do: 1. Black and white engraving on most metals and some plastics. 2. Color engraving on stainless steel and titanium. 3. Black engraving on anodized aluminum.
0086-150-1350-9330
Feature
1) Long lifespan of fiber laser source: 100 000 hours.
2) Low consumption: <450W, more economical and environmental.
3) High Speed: 7000mm/s, faster than traditional machines.
4) Superior Laser Beam: The definition is 1 micron, 10 times as traditional products.
5) No Consumables: One marker can work for more 8-10 years without any consumables.
6) The fiber laser beam comes out from the fiber laser source directly, no need to adjust the laser beam path.
7) High-precision and high-speed scan head, with good seal, capable to prevent dust and water, small volume, compact.
8) High-stability controller, USB interface, swift and stable transmission, route optimization, easy operation.
9) Strong Compatibility: PLT, BMP, JPG, TTF, DXF, SHX, AI and other format files output from CorelDraw, AI, PS,
AutoCAD, Solidworks etc..
10) Integrated Air Cooling System: Better cooling effect than water-cooling effect in YAG laser, no maintenance.
Application

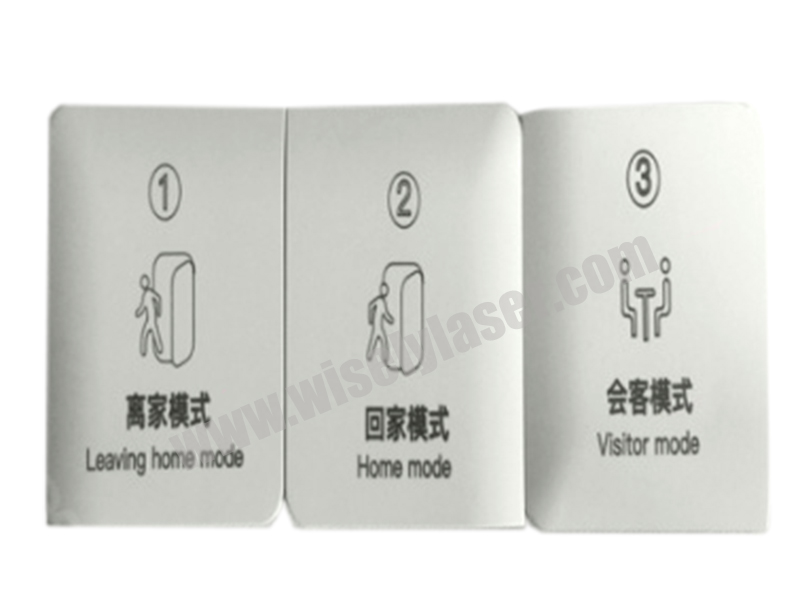

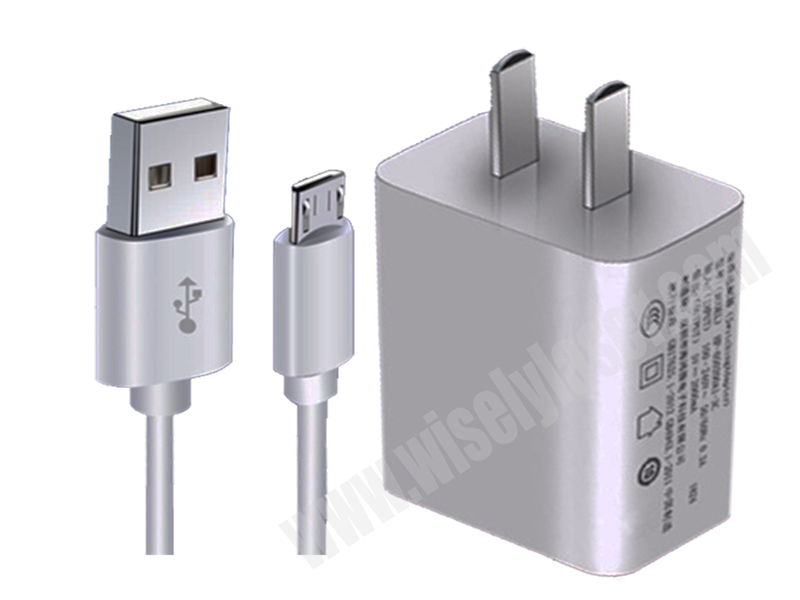

1) Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc.
2) Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
3) Instrument: Panel Board, Nameplates, Precision equipment, etc.
4) Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
5) Automobile Parts: Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.
6) Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
Technical Parameters
| Model | MY-M20F-V | |||||||||
| Power | 20W / 30W / 60W / 80W / 100W / 120W | |||||||||
| Laser Wavelength | 1064nm | |||||||||
| Standard Marking Area | 150mm*150mm | |||||||||
| Optional Marking Area | 70*70mm /100*100mm /200*200mm /300*300mm /400*400mm | |||||||||
| Marking Depth | ≤2mm | |||||||||
| Marking Speed | 7000mm/s | |||||||||
| Minimum Line Width | 0.015mm | |||||||||
| Minimum Character | 0.2mm | |||||||||
| Repeated Precision | ±0.006mm | |||||||||
| Fiber Laser Source | JPT Mopa M7 (Optionlal IPG Mopa) | |||||||||
| Scan Head |
Galvo-Tech / WISE SCAN from China |
|||||||||
| Controller (software) | JZC Controller & EzCAD2 Software (Optionlal EzCAD3 or SAMLight) | |||||||||
| Life span of Fiber Laser Module | 100 000 hours | |||||||||
| Beam Quality | M2<1.3 | |||||||||
| Focus Spot Diameter | <0.01mm | |||||||||
| Output Power of Laser | 10%~100% | |||||||||
| Output Frequency of Laser | 1~4000KHz | |||||||||
| Output Q Pulse | 1-500Ns | |||||||||
| System Operation Environment | Windows XP / 7 / 8 / 10 / 11 - 32 / 64bits | |||||||||
| Cooling Mode | Aircooling | |||||||||
| Voltage | 220V/50HZ/1-PH or 110V/60HZ/1-PH | |||||||||
| Power Requirement | <450W | |||||||||
| Dimension (L*W*H) | 770*1120*1155mm | |||||||||
| Package Size | 1150*1700*850mm(Air shipping) / 870*1320*1800mm(Sea shipping) | |||||||||
| Net Weight | 135KG | |||||||||
| Gross Weight | 180KG | |||||||||
Optional Devices
payment
100% or 40% prepaird before production, balance payment before shipment. (Negotiable）
Bank Wire, Paypal, Western Union, Credit Card, Alibaba.
Shipment
Machine will be sent out 3-6 working days after receiving the payment.
By Express: 6-10 days.
By Sea: 30-45 days. (Highly Recommended)
Packaging
International standard plywooden case.
Warranty
Whole machine has a warranty period of 24 months since the production date.
Training
1~3 working days training free of charge in factory or online training via TeamViewer, Skype, WeChat, FB.
