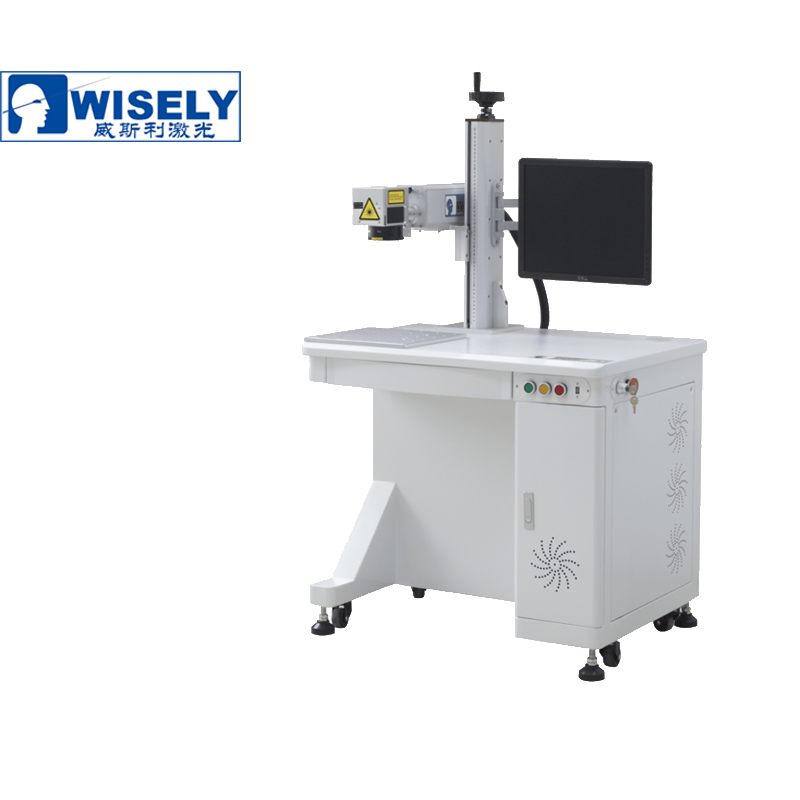

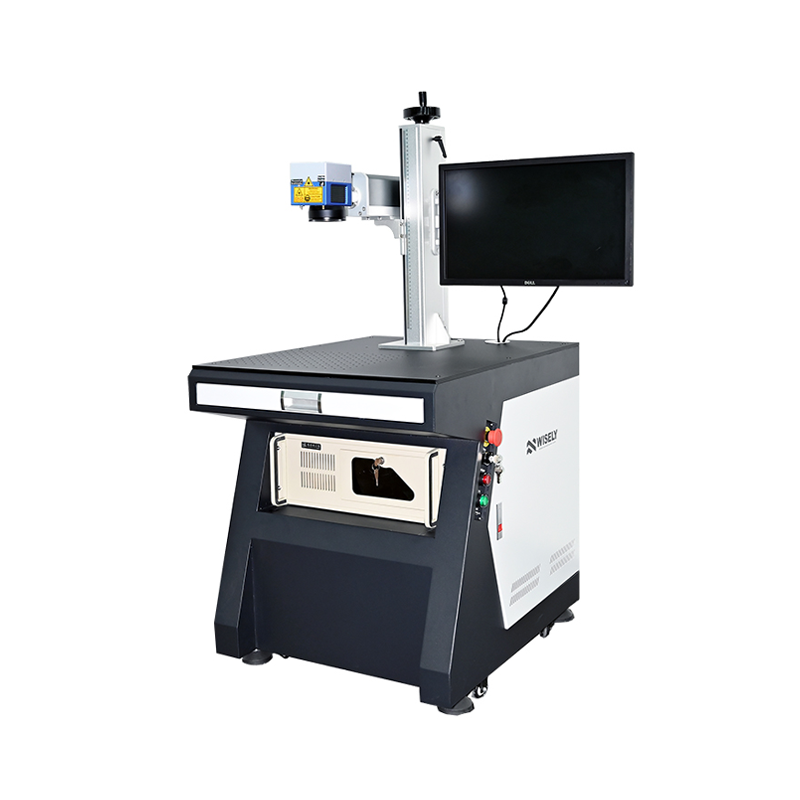

Color Laser Marking Machine - Type II - MOPA Fiber Laser

Open worktable, easy to load the material and can work with customized automatic matching system. With computer and software, can use it directly, Equipped with automation, assembly line conveyor. Mopa fiber laser marking machine, Color Laser Engraving Machine can do:
1. Black and white engraving on most metals and some plastics.

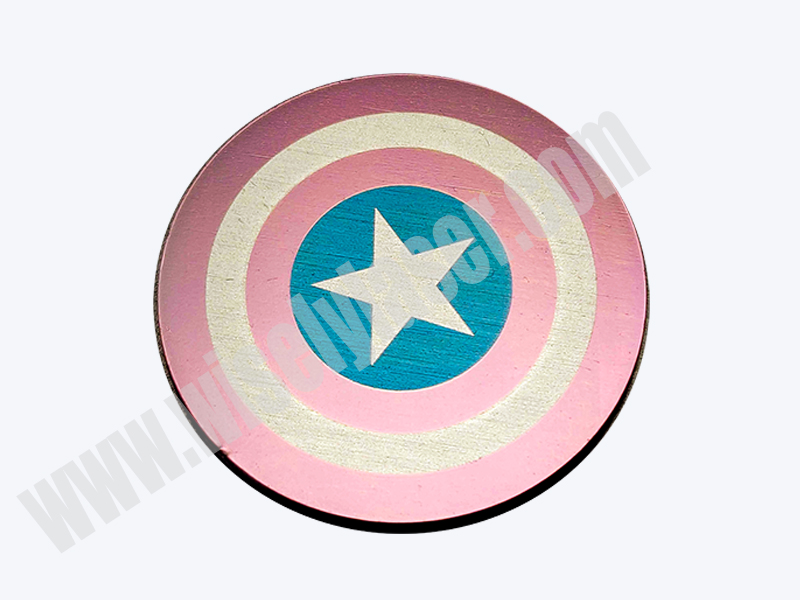

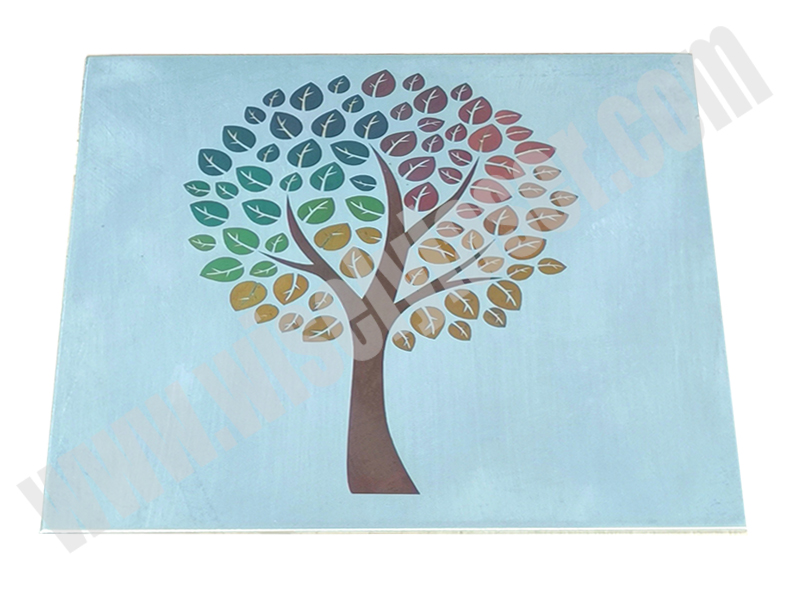

2. Color engraving on stainless steel and titanium.
3. Black engraving on anodized aluminum.
Contact information

0086-150-1350-9330

  • Technical Parameters



Feature

1) Long lifespan of fiber laser source: 100 000 hours.

2) Low consumption: <450W, more economical and environmental.

3) High Speed: 7000mm/s, faster than traditional machines.

4) Superior Laser Beam: The definition is 1 micron, 10 times as traditional products.

5) No Consumables: One marker can work for more 8-10 years without any consumables.

6) The fiber laser beam comes out from the fiber laser source directly, no need to adjust the laser beam path.

7) High-precision and high-speed scan head, with good seal, capable to prevent dust and water, small volume, compact.

8) High-stability controller, USB interface, swift and stable transmission, route optimization, easy operation.

9) Strong Compatibility: PLT, BMP, JPG, TTF, DXF, SHX, AI and other format files output from  CorelDraw, AI, PS,
    AutoCAD, Solidworks etc..

10) Integrated Air Cooling System: Better cooling effect than water-cooling effect in YAG laser, no maintenance.


Application
1) Electronic Components:                Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc.

2) Mechanical Parts:                          Bearings, Gears, Standard Parts, Motor, etc.

3) Instrument:                                    Panel Board, Nameplates, Precision equipment, etc.

4) Hardware Tools:                            Knives, Tools, Measuring Tools, Cutting Tools, etc.

5) Automobile Parts:                         Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.

6) Daily Necessities:                         Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.

Technical Parameters

ModelMY-M20F-II
Power20W / 30W / 60W / 80W / 100W / 120W
Laser Wavelength1064nm
Standard Marking Area150mm*150mm
Optional Marking Area70*70mm /100*100mm /200*200mm /300*300mm /400*400mm
Marking Depth≤2mm
Marking Speed7000mm/s
Minimum Line Width0.015mm
Minimum Character0.2mm
Repeated Precision±0.006mm
Fiber Laser SourceJPT Mopa M7 (Optionlal IPG Mopa)
Scan HeadGalvo-Tech / WISE SCAN from China
Controller (software)JZC Controller & EzCAD2 Software (Optionlal EzCAD3 or SAMLight)
Life span of Fiber Laser Module100 000 hours
Beam QualityM2<1.3
Focus Spot Diameter<0.01mm
Output Power of Laser10%~100%
Output Frequency of Laser1K~4000KHz
Output Q Pulse1-500Ns
System Operation EnvironmentWindows XP / 7 / 8 / 10 / 11 - 32 / 64bits
Cooling ModeAircooling
Voltage220V/50HZ/1-PH or 110V/60HZ/1-PH
Power Requirement<450W
Dimension (L*W*H)850*700*1360mm
Package Size950*950*1050mm(Air shipping) / 1000*900*1550mm(Sea shipping)
Net Weight140KG
Gross Weight175KG


Optional Devices
Optional Devices-Fiber-水印.png

























payment

100% or 40% prepaird before production, balance payment before shipment. (Negotiable)

Bank Wire, Paypal, Western Union, Credit Card, Alibaba.


Shipment

Machine will be sent out 3-6 working days after receiving the payment.

By Express: 6-10 days.

By Sea: 30-45 days. (Recommended)


Packaging

International standard plywooden case.


Warranty

Whole machine has a warranty period of 24 months since the production date.


Training

1~3 working days training free of charge in factory or online training via TeamViewer, Skype, WeChat, FB.
