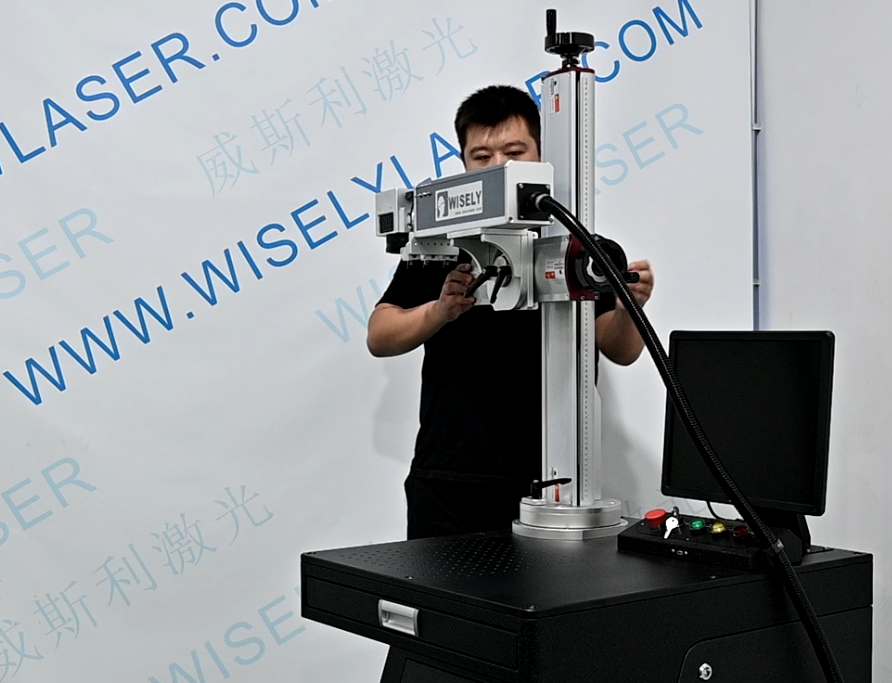

Multi-Dimensional Rotation Fiber Laser Marking Machine

360° Horizontal Rotation Base plus 180° Vertical Rotation Device will make your machine powerful, can mark big, heavy object.
Contact information

0086-150-1350-9330

  • Technical Parameters




Feature

1) Long lifespan of fiber laser source: 100,000hours.

2) Low consumption: <450W, more economical and environmental.

3) High Speed: 7000mm/s, faster than traditional machines.

4) Superior Laser Beam: The definition is 1 micron, 10 times as traditional products.

5) No Consumables: One marker can work for more 8-10 years without any consumables.

6) The fiber laser beam comes out from the fiber laser source directly, no need to adjust the laser beam path.

7) High-precision and high-speed scan head, with good seal, capable to prevent dust and water, small volume, compact.

8) High-stability controller, USB interface, swift and stable transmission, route optimization, easy operation.

9) Strong Compatibility: PLT, BMP, JPG, TTF, DXF, SHX, AI and other format files output from  CorelDraw, AI, PS,
    AutoCAD, Solidworks etc..

10) Integrated Air Cooling System: Better cooling effect than water-cooling effect in YAG laser, no maintenance.


Application
1) Electronic Components:                Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc.

2) Mechanical Parts:                          Bearings, Gears, Standard Parts, Motor, etc.

3) Instrument:                                    Panel Board, Nameplates, Precision equipment, etc.

4) Hardware Tools:                            Knives, Tools, Measuring Tools, Cutting Tools, etc.

5) Automobile Parts:                         Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.

6) Daily Necessities:                         Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.

Technical Parameters

Model MY-M20F-II
Power 20W / 30W / 50W / 100W / 120W
Laser Wave length 1064nm
Standard Marking Area 150mm*150mm
Optional Marking Area 70*70mm /100*100mm /200*200mm /300*300mm /400*400mm
Marking Depth ≤2mm
Marking Speed 7000mm/s
Minimum Line Width 0.015mm
Minimum Character 0.2mm
Repeated Precision ±0.003mm
Fiber Laser Source JPT LP
Scan Head Galvo-Tech / WISE SCAN from China
Controller (software) JZC Controller & EzCAD2 Software (Optionlal EzCAD3 or SAMLight)
Life span of Fiber Laser Module 100 000 hours
Beam Quality M2<1.3
Focus Spot Diameter <0.01mm
Output Power of Laser 10%~100%
Output Frequency of Laser 1~600KHz
Power Stability (8h) <±1.5%rms
System Operation Environment Windows XP / 7 / 8 / 10 / 11 - 32 / 64bits
Cooling Mode Aircooling
Voltage 220V/50HZ/1-PH or 110V/60HZ/1-PH
Power Requirement <450W
Dimension (L*W*H) 800*900*1780mm
Package Size 1150*1050*1200mm
Net Weight 170KG
Gross Weight 220KG


Optional Devices
Optional Devices-Fiber-水印.png

payment

100% or 40% prepaird before production, balance payment before shipment. (Negotiable)

Bank Wire, Paypal, Western Union, Credit Card, Alibaba.


Shipment

Machine will be sent out 3-6 working days after receiving the payment.

By Express: 6-10 days.

By Sea: 30-45 days. (Recommended)


Packaging

International standard plywooden case.


Warranty

Whole machine has a warranty period of 24 months since the production date.


Training

1~3 working days training free of charge in factory or online training via TeamViewer, Skype, WeChat, FB.
