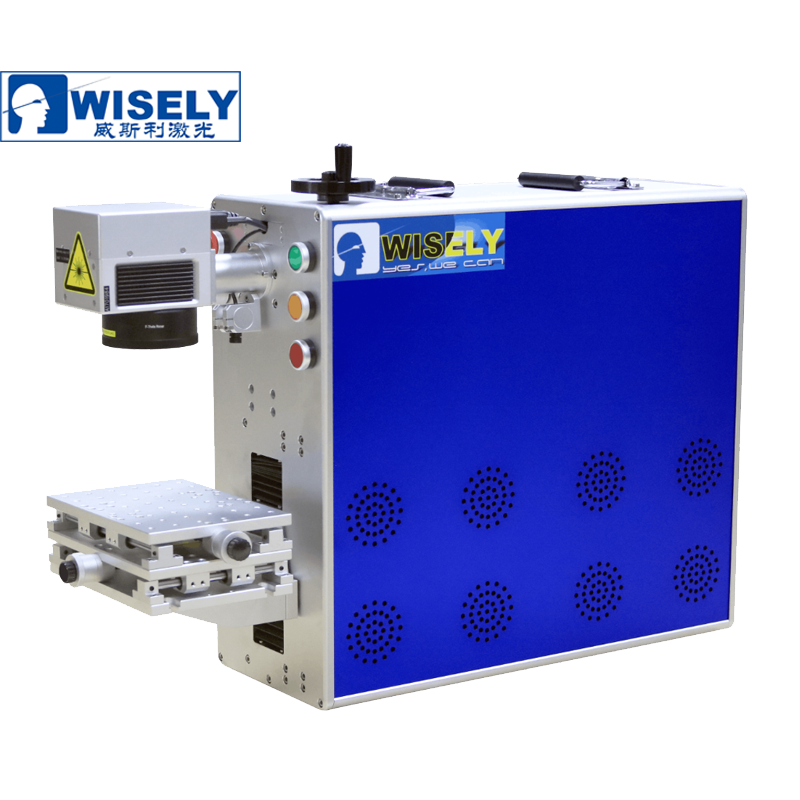

Portable type marking machine, It can work with most metal marking applications, such as Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon.
1) Long lifespan of fiber laser source: 100 000 hours.
2) Low consumption: <450W, more economical and environmental.
3) High Speed: 7000mm/s, faster than traditional machines.
4) Superior Laser Beam: The definition is 1 micron, 10 times as traditional products.
5) No Consumables: One marker can work for more 8-10 years without any consumables.
6) The fiber laser beam comes out from the fiber laser source directly, no need to adjust the laser beam path.

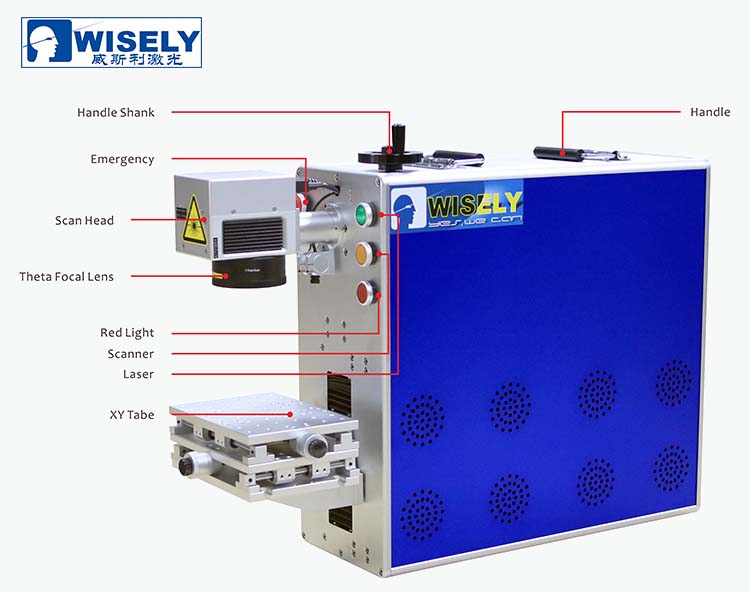

7) High-precision and high-speed scan head, with good seal, capable to prevent dust and water, small volume, compact.
8) High-stability controller, USB interface, swift and stable transmission, route optimization, easy operation.
9) Strong Compatibility: PLT, BMP, JPG, TTF, DXF, SHX, AI and other format files output from CorelDraw, AI, PS,
AutoCAD, Solidworks etc..
10) Integrated Air Cooling System: Better cooling effect than water-cooling effect in YAG laser, no maintenance.
1) Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc.
2) Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
3) Instrument: Panel Board, Nameplates, Precision equipment, etc.
4) Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
5) Automobile Parts: Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.
6) Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
|Power||20W / 30W / 50W / 100W / 120W|
|Standard Marking Area||150mm*150mm|
|Optional Marking Area||70*70mm /100*100mm /200*200mm /300*300mm /400*400mm|
|Minimum Line Width||0.015mm|
|Fiber Laser Source||JPT LP (Optionlal Raycus or IPG)|
|Scan Head||Galvo-Tech / WISE SCAN from China|
|Controller (software)||JZC Controller & EzCAD2 Software (Optionlal EzCAD3 or SAMLight)|
|Life span of Fiber Laser Module||100 000 hours|
|Focus Spot Diameter||<0.01mm|
|Output Power of Laser||10%~100%|
|Output Frequency of Laser||1~600KHz|
|Power Stability (8h)||<±1.5%rms|
|System Operation Environment||Windows XP / 7 / 8 / 10 / 11 - 32 / 64bits|
|Cooling Mode||Air Cooling|
|Voltage||220V/50HZ/1-PH or 110V/60HZ/1-PH|
100% or 40% prepaird before production, balance payment before shipment. (Negotiable）
Bank Wire, Paypal, Western Union, Credit Card, Alibaba.
Machine will be sent out 3-6 working days after receiving the payment.
By Express: 6-10 days. (Highly Recommended)
By Sea: 30-45 days.
International standard plywooden case.
Whole machine has a warranty period of 24 months since the production date.
1~3 working days training free of charge in factory or online training via TeamViewer, Skype, WeChat, FB.
