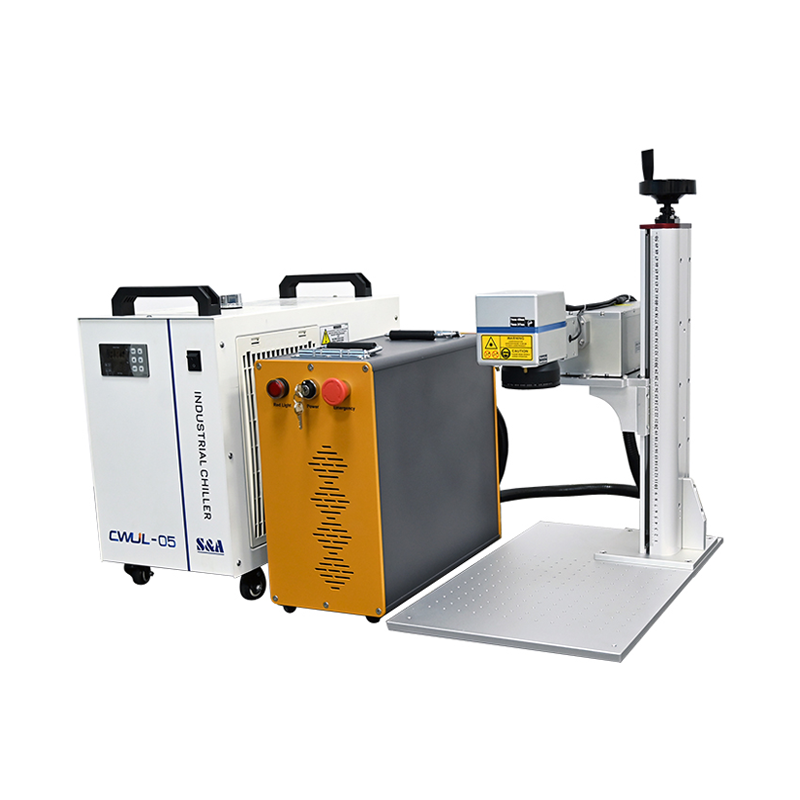

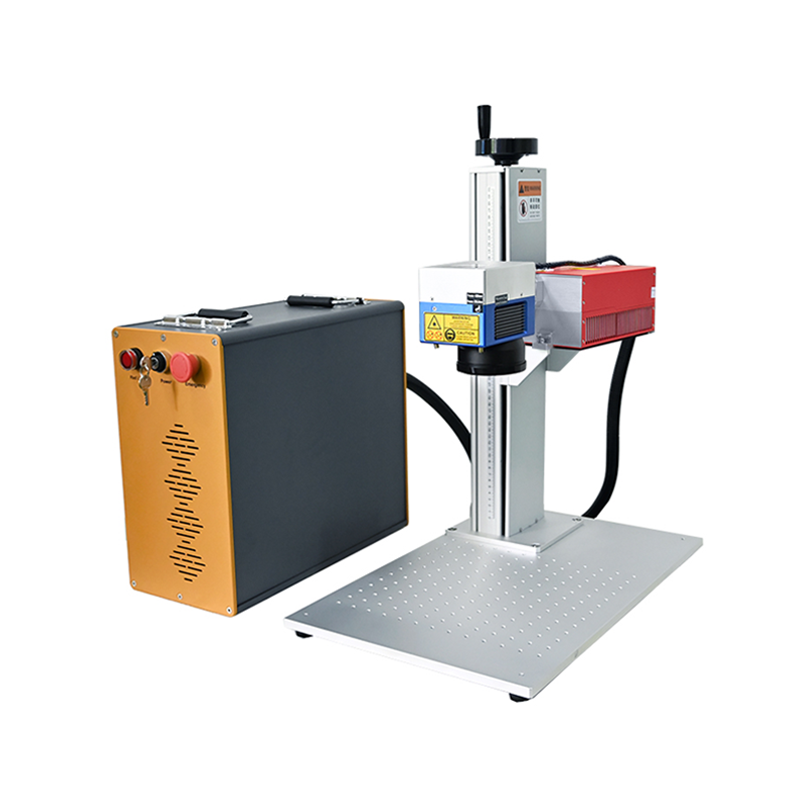

UV Laser Marking Machine-Type III

UV Laser Marking Machine adopts JPT UV Laser source, the third-order cavity frequency doubling technology, compared with infrared laser, UV lasers at 355nm provide a small-size spot and a big focal depth, short laser wavelength interrupts molecular chains of material, can greatly reduces the mechanical deformation and temperature distortion of materials, it is a cold laser, mainly used for super precise marking and engraving, particularly suitable for food, pharmaceutical packaging material marking, micro porous, high-speed dividing for glass, complex graphics wafer cutting on silicon materials, etc. UV laser is an ultraviolet laser beam which generated after the high-power multimode diode pumped laser and then frequency doubling again, and mark through computer-controlled high-speed scanning galvanometer deflection to change the path of laser beam automatically.

Online message

Contact information

0086-150-1350-9330

Technical Parameters

UV laser marking machine working videos: https://www.youtube.com/playlist?list=PLzHZLfB8KONGNns0wGA8GH7nMKlfm1Ytu

1. Air Cooling UV Laser Marking Plastic, Glass, and Metal: https://youtu.be/zr-rVhDVqRU

2. UV laser marking plastics: https://youtu.be/12uG2tYhDRQ

3. UV laser marking glass cup: https://youtu.be/LLLzIEJEwLU

4. UV laser marking on wood: https://youtu.be/S72AogJGNKo

5. 3D UV laser marking wine glass cup: https://youtu.be/38FF8NPyCPs

6. 3D UV laser engraving 3D relief on crystal: https://youtu.be/GZ4mNtxkKjc

Feature

1. High-quality laser beam, small spot, can do super precise marking & engraving.

2. Perfect marking performance:

(1) Short UV wavelength 355nm reduces the heat effect on work piece;

(2) Precise marking effect and available repeatable marking;

(3) High precision scanning galvanometer laser head;

(4) Extraordinary fine spot guarantees perfect marking performance;

(5) Non-contact marking.Permanent mark.

3. Heat affected area is very small, no heating effect, the material will not be burned or deformed.

4. High marking speed, high efficiency, stable performance, small size, and low power consumption.

5. Very suitable for the material, which is greatly affected by thermal radiation, can work with a production line to feed and discharge materials automatically.

Application

1. UV Laser Marking Machine is mainly used in precision processing of high-end markets, handicrafts, medicine,
cosmetics, video, and other polymer materials packaging bottle, the mark is very precise, and stands wear, better
than ink printing and pollution-free.

2. The flexible PCB marking and scribing, silicon and wafer micro hole, blind hole processing;

3. LCD glass QR code marking, glassware punching, metal surface coating marking, plastic buttons, communications
equipment, gifts, and so on.

5. Very suitable for the material, which is greatly affected by thermal radiation, can work with a production line to feed and discharge materials automatically.

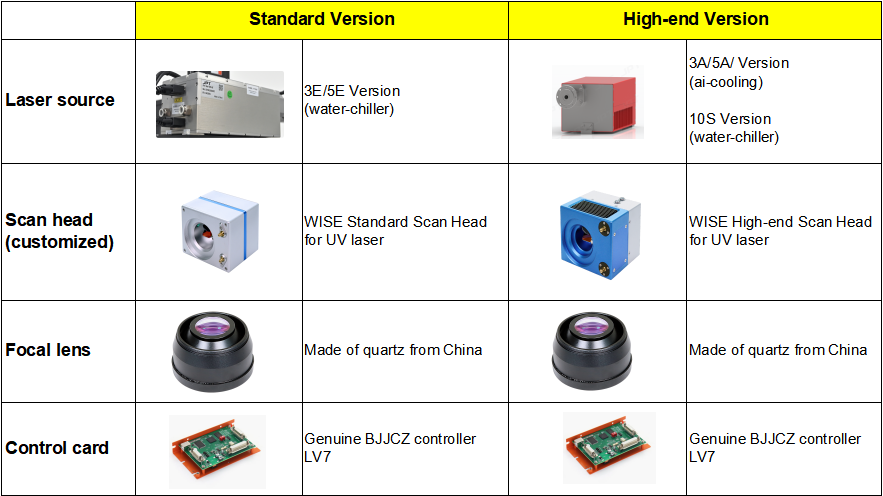

Technical Parameters

Model				WSL-UV05-III
Laser Power				3W
Optional Laser Power				3W /5W / 10W
Laser Wavelength				355nm
Working Area				100*100mm
Optional Working Area				7070mm / 140140mm / 200200mm / 300300mm
Beam Quality				M2 <1.2
Output Laser Power				0~100% adjustable
Output Frequency				20~150KHz adjustable
Power Stability (8h)				<±1%rms
Pulse Width				10-50ns
Focus Spot Diameter				<0.01mm
UV Laser Source				JPT Laser
Scan Head				Galvo-Tech / WISE SCAN from China
Controller and Software				JCZ Controller & EzCAD2 Software (Optionlal: EzCAD3 /SAMLight /LightBurn)
Marking Speed				7000mm/s
Min. Line Width				≤0.005mm
Min. Character				0.15mm
Repeated Precision				±0.003mm
Compatible Format of File				PLT, DXF, AI, BMP, JPG and so on.
System Operation Environment				Windows XP / 7 / 8 / 10 / 11 - 32 / 64bits
Cooling Mode				Water Cooling /Water Cooling
Operation Environment				15℃~35℃
Lifespan of UV Laser Source				Max. 20,000 hours

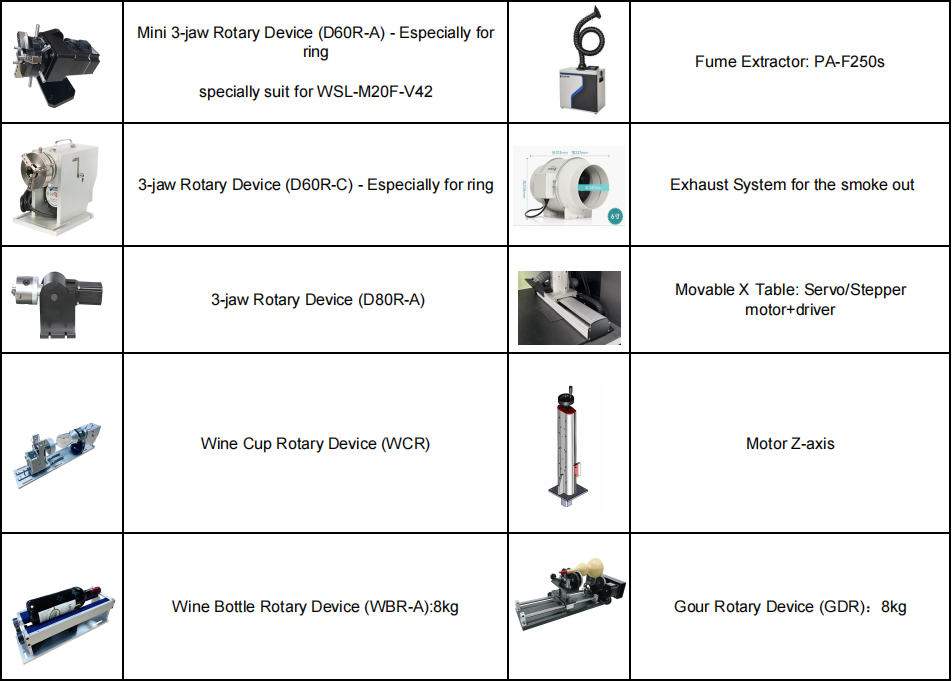

Optional Device:

Payment

Payment: 100% payment before production; Or 50% advance payment before production, 50% balance before delivery.

T/T, Paypal, Western Union, Credit Card, Alibaba.

Shipment

The machine will be sent out within 3-6 working days after payment is received.

By Express: 6-10 days. (Highly Recommended)

By Sea: 30-45 days.

Packaging

International standard plywood box / anti-crash paper box

Warranty

1. Warranty coverage applies only if the part is found to be defective due to non-human factors, and not as a result of misuse, mishandling, or unauthorized modifications.

2. Wisely will send you the parts and take the shipping cost from WISELY to the buyer's site if the machine has a quality problem within 7 days after the buyer receives it.
3. Warranty period: 24 months (2 years)

Training

Detailed user manual & step-by-step operation videos

Fast response (16 hours/day online support)
Real-time remote guidance via TeamViewer, Skype, or WhatsApp
