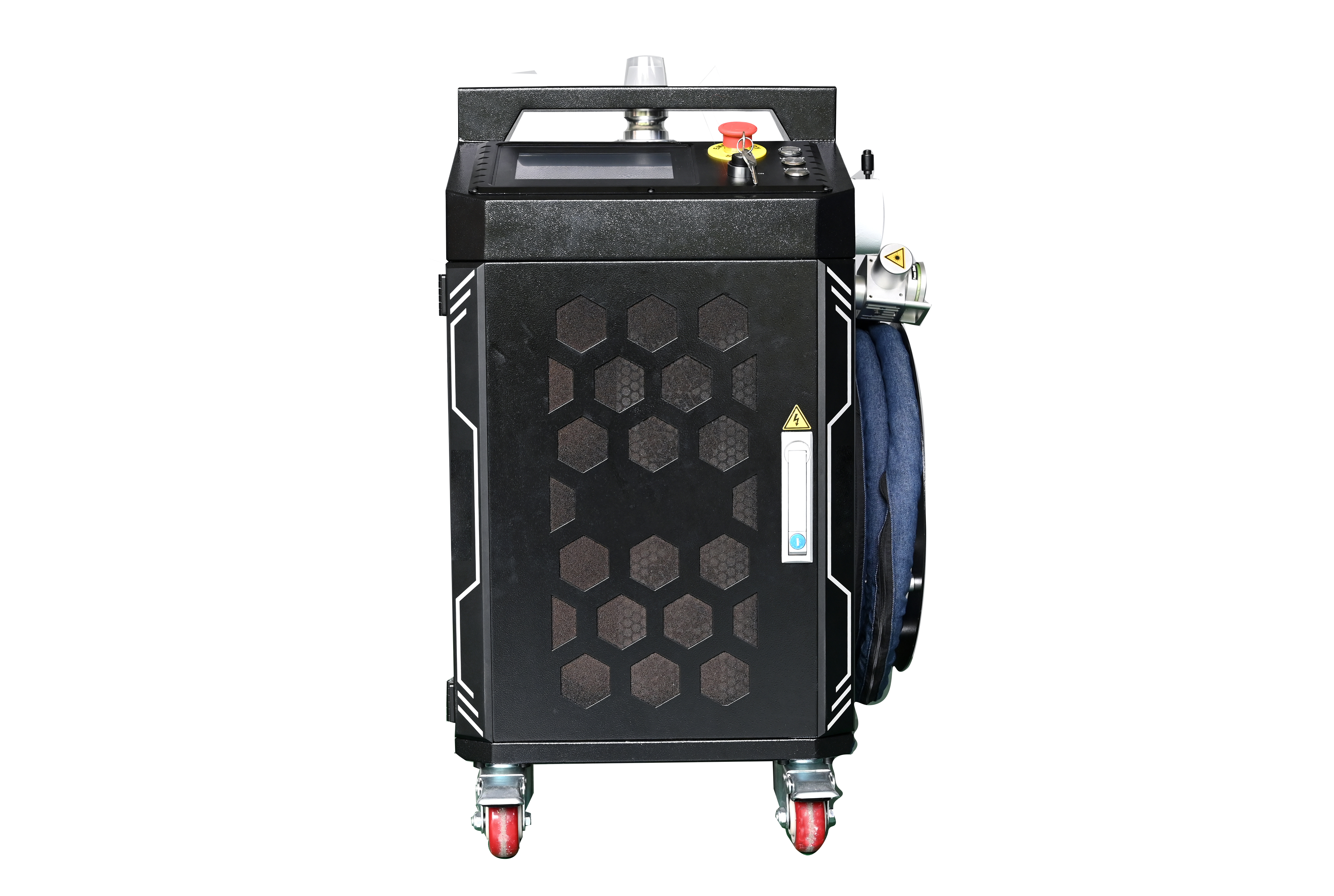

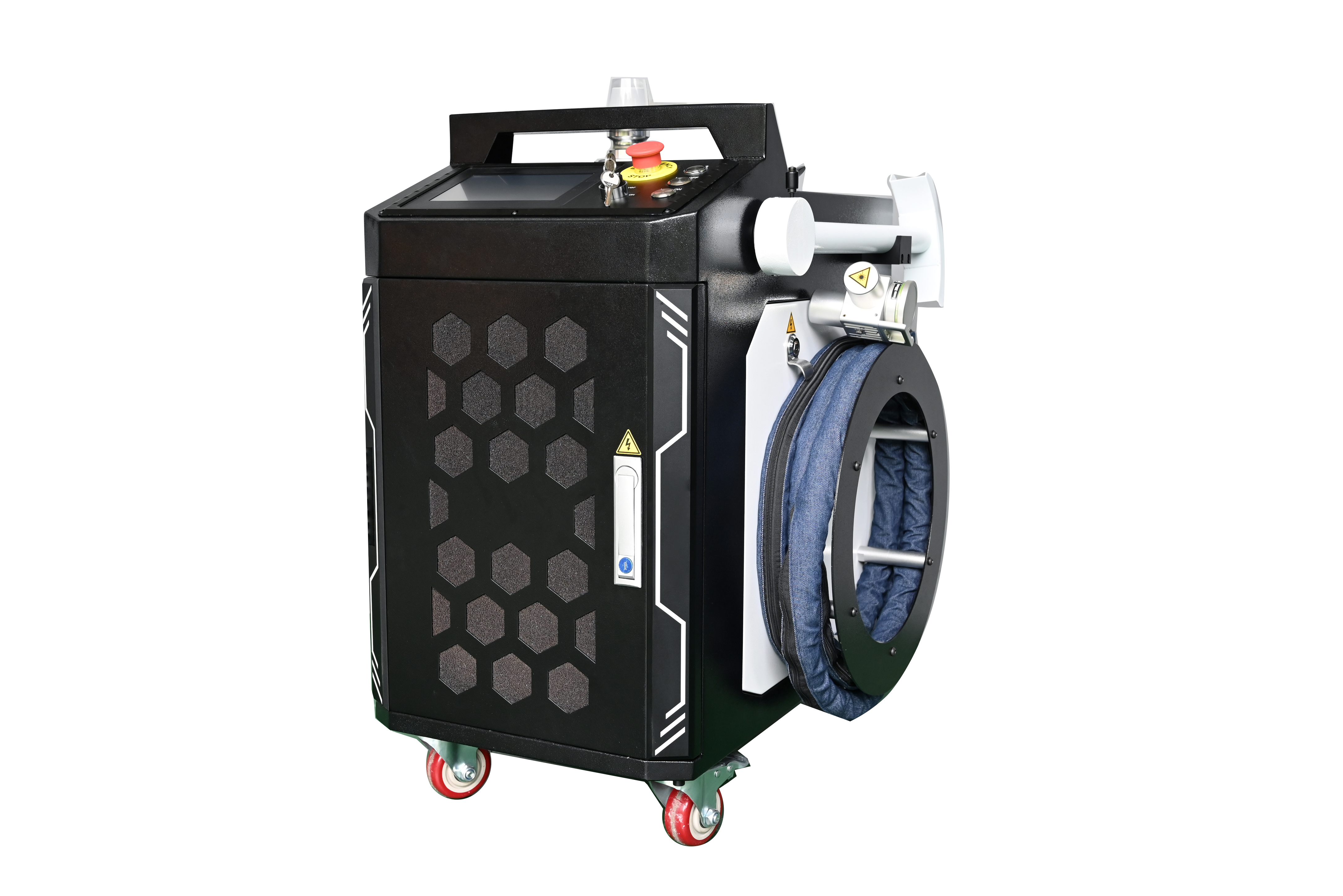

Q Pulse Laser Cleaning Machine

It comes with 50w /100w /200w /300w JPT Q Pulse fiber laser source. It can do thick rust & paint easily from metals. When aimed at the metal surface, the dirt layer and any oxides underneath will absorb the energy and evaporate, along with thermal pressure and shock waves to sublimate the rust and separates it from the metal without damaging the piece.
Contact information

0086-150-1350-9330

  • Technical Parameters





Features

1. Hand-held operation, compact structure and light weight.
2. Save Energy, protect the environment, no secondary waste.
3. Non-contact cleaning, no damage on matrix material after cleaning.
4. Off-line operation, no need computer and any edition for the file.
5. Modes for different cleaning objects and cleaning effect, easy to swift the modes quickly.
6. Cleaning width can be adjustable easily.
7. No consumption, almost free maintenance.
8. With friendly safety protection system, the laser will be locked if the laser stops more than 2 minutes.

Application
1. Removal of the coat layer on the surface of metal or glass, and quick paint removal.
2. Quick removal of rust and various oxides.
3. Removal of grease, resin, gum, dust, stains and production residues.
4. Surface roughening of metal and glass.
5. Removal of paint, rust, oil stains, oxides and residues produced by welding before welding or adhesion.
6. Removal of oil stains of precision parts after production and processing.
7. Quick cleaning for maintenance of nuclear power parts.
8. Oxide treatment, paint removal and rust removal during the production or maintenance of aeronautic and astronautic weapons and vessels.
9. Metal surface cleaning in small space.
10. Cultural relic cleaning, rock cleaning, building exterior surface cleaning, steel structure anti-corrosion engineering.
11. Mold cleaning, such as tire mold, electronic mold and fold mold.

Technical Parameters

TypeMY-CL300
Power50W / 100W / 200W / 300W
Max. Cleaning Width50~120mm
Laser Source JPT from China
Scan HeadWaveLength from China
ControllerWaveLength from China
Lifespan of Fiber Laser Source100,000 Hours
Cleaning Areato be adjusted on hand-held laser gun
Power Stability (8h)<±1.5%rms
Cooling ModeAir Cooling
Power Comsuption~1.0KW/H
Dimension 96×75×108cm
Package Size

100*81*123cm

Net Weight                149KG
Gross Weight197KG

payment
100% or 40% prepaird before production, balance payment before shipment. (Negotiable)

Bank Wire, Paypal, Western Union, Credit Card.

Shipment

Machine will be sent out 5-10 working days after receiving the payment.

By Express: 6-10 days.

By Sea: 30-45 days. ( Recommended)


Packaging

International standard plywooden case.


Warranty

Whole machine has a warranty period of 12 months since the production date.


Training

1~3 working days training free of charge in factory or online training via TeamViewer, Skype, WeChat, FB.
