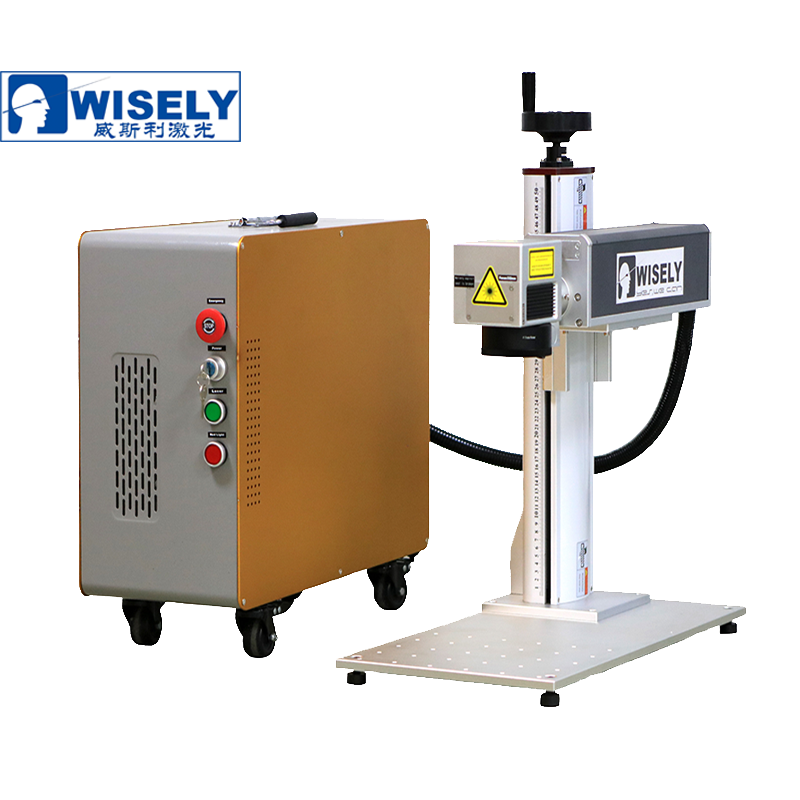

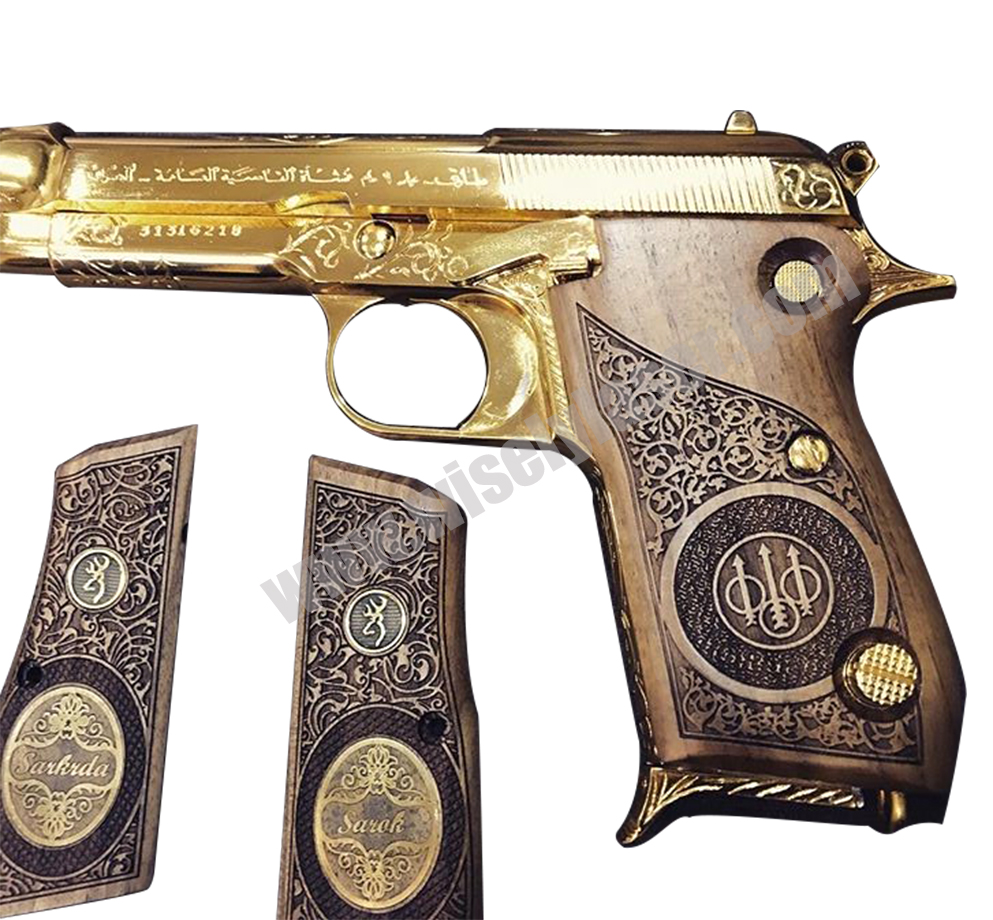

100w Fiber Laser Engraving Machine. Laser engraving stainless steel, aluminum. Laser cutting gold, silver for jewelry. Laser Engraver For Metal - Widely used for engraving firearms, knifes, tumblers, jewelry etc.
0086-150-1350-9330
More video link:

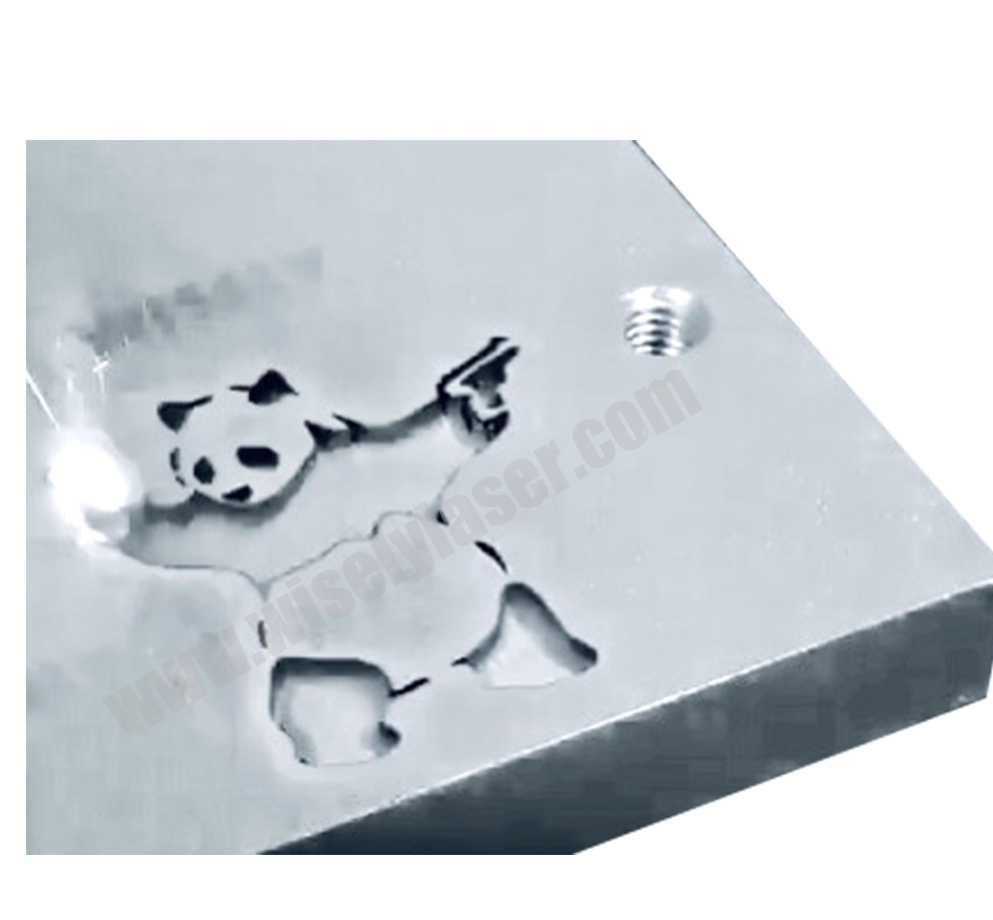

100 Watts Fiber Laser Deep Engraving on Aluminium: https://youtu.be/n7hzp311ry8?si=3zzNf_hSzZE5nZKo

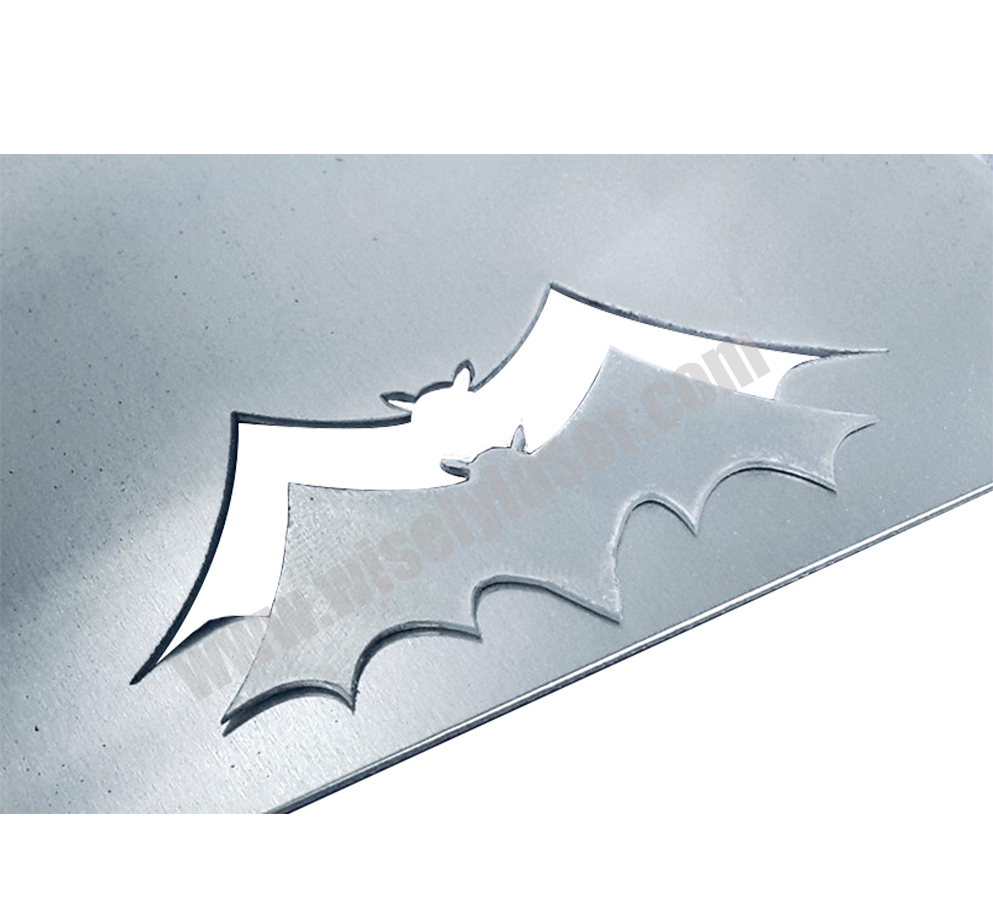

100W Fiber Laser cuts 0.6mm copper plate in just 48s：https://www.youtube.com/watch?v=JWxocnmpVeo
Engrave Like a Pro with Wisely 100W Fiber Laser：https://www.youtube.com/shorts/CF4oPlK0RyQ
Copper Coin Share and Deep Laser Engraving with Wisely 100W Fiber Laser Marker： https://www.youtube.com/watch?v=v63VWnrpGOo
Features
1) Long lifespan of fiber laser source: 100 000 hours.
2) Low consumption: <450W, more economical and eco-friendly.
3) High Speed: 7000mm/s, faster than traditional machines.
4) Superior Laser Beam: The definition is 1 micron, 10 times that of traditional products.
5) No Consumables: The machine can operate for more than 8-10 years without any consumables.
6) The fiber laser beam comes out from the fiber laser source directly, no need to adjust the optical path.
7) High-precision and high-speed scan head, with good seal, capable to prevent dust and water, small volume, compact.
8) High-stability controller, USB interface, fast and stable data transmission, optimised path planning.
9) Strong Compatibility: PLT, BMP, JPG, TTF, DXF, SHX, AI and other format files output from CorelDraw, AI, PS,
AutoCAD, Solidworks etc..
10) Integrated Air Cooling System: Better cooling effect than water-cooling effect in YAG laser, no maintenance.
Application
1) Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc.
2) Mechanical Parts: Bearings, Gears, Standard Parts, Motors, etc.
3) Instrument: Panel Board, Nameplates, Precision equipment, etc.
4) Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
5) Automobile Parts: Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.
6) Daily Necessities: Handicrafts, Zippers, keychains, Sanitary Ware, etc.
Technical Parameters
| Model | WSL-M100F/ WSL-M200F/ WSL-M300F/ | |||||||||
| Power | 100W /200W /300W | |||||||||
| Laser Wavelength | 1064nm | |||||||||
| Standard Marking Area | 150mm*150mm | |||||||||
| Optional Marking Area | 70*70mm /100*100mm /200*200mm /300*300mm /400*400mm | |||||||||
| Marking Depth | ≤2mm | |||||||||
| Marking Speed | 7000mm/s | |||||||||
| Minimum Line Width | 0.015mm | |||||||||
| Minimum Character | 0.2mm | |||||||||
| Repeated Precision | ±0.003mm | |||||||||

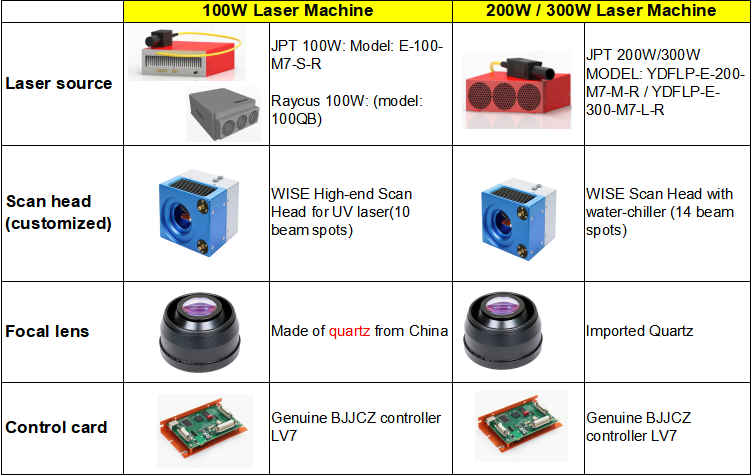

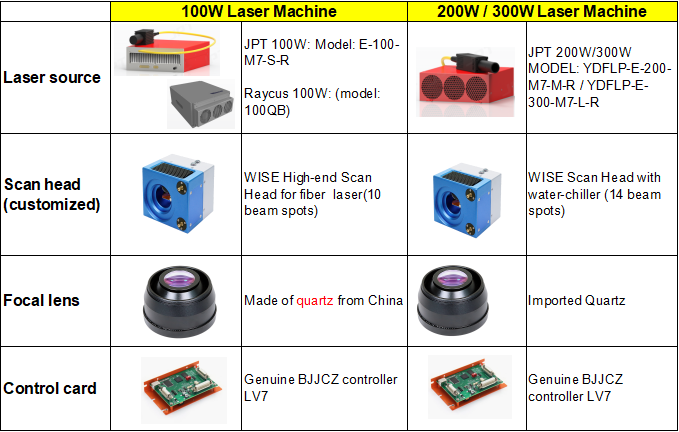

| Fiber Laser Source | JPT MOPA M7 | |||||||||
| Scan Head | Galvo-Tech / WISE SCAN from China | |||||||||
| Controller (software) |
JZC Controller & EzCAD2 Software (Optionlal: EzCAD3 /SAMLight /LightBurn) |
|||||||||
| Life span of Fiber Laser Module | 100 000 hours | |||||||||
| Beam Quality | M2<1.3 | |||||||||
| Focus Spot Diameter | <0.01mm | |||||||||
| Output Power of Laser | 10%~100% | |||||||||
| Output Frequency of Laser | 1~4000KHz | |||||||||
| Power Stability (8h) | <±1.5%rms | |||||||||
| System Operation Environment |
Windows XP / 7 / 8 / 10 / 11 - 32 / 64bits |
|||||||||
| Cooling Mode | Air Cooling | |||||||||
| Voltage | 220V/50HZ/1-PH or 110V/60HZ/1-PH | |||||||||
| Power Requirement | <450W | |||||||||
| Dimension (L*W*H) | 700*400*650mm | |||||||||
| Package Size | 850*500*870mm | |||||||||
| Net Weight | 45KG | |||||||||
| Gross Weight | 75KG | |||||||||

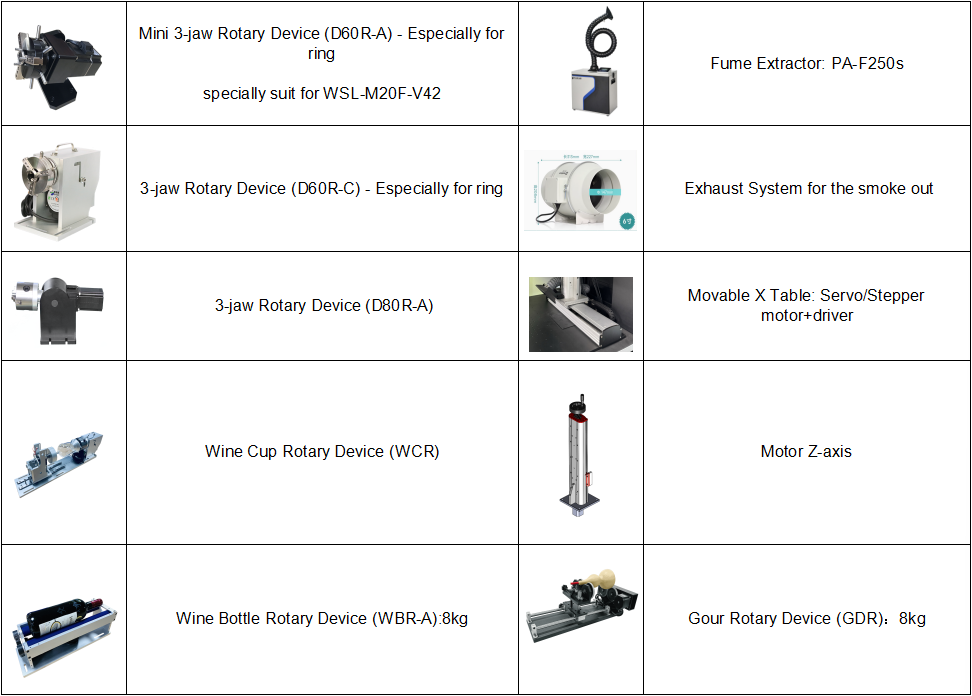

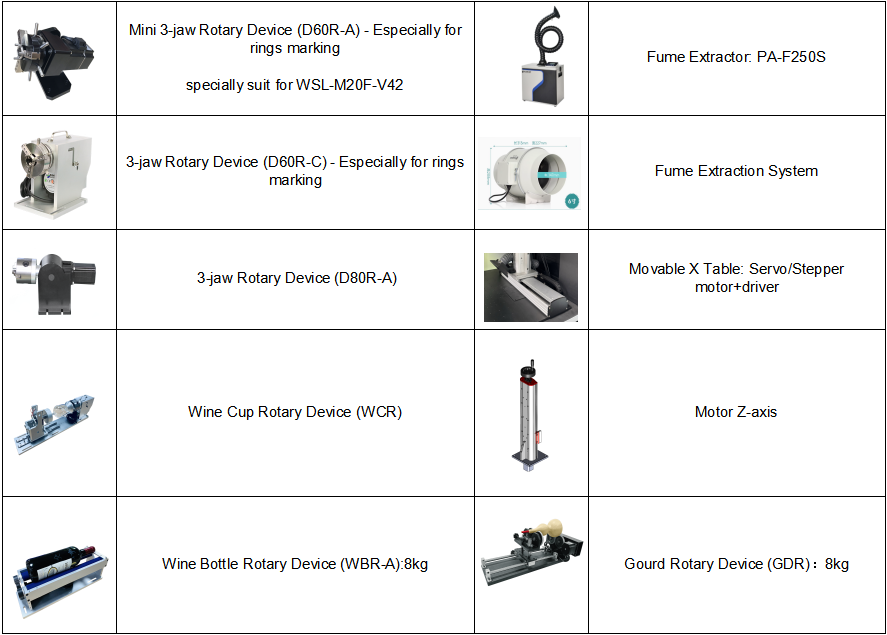

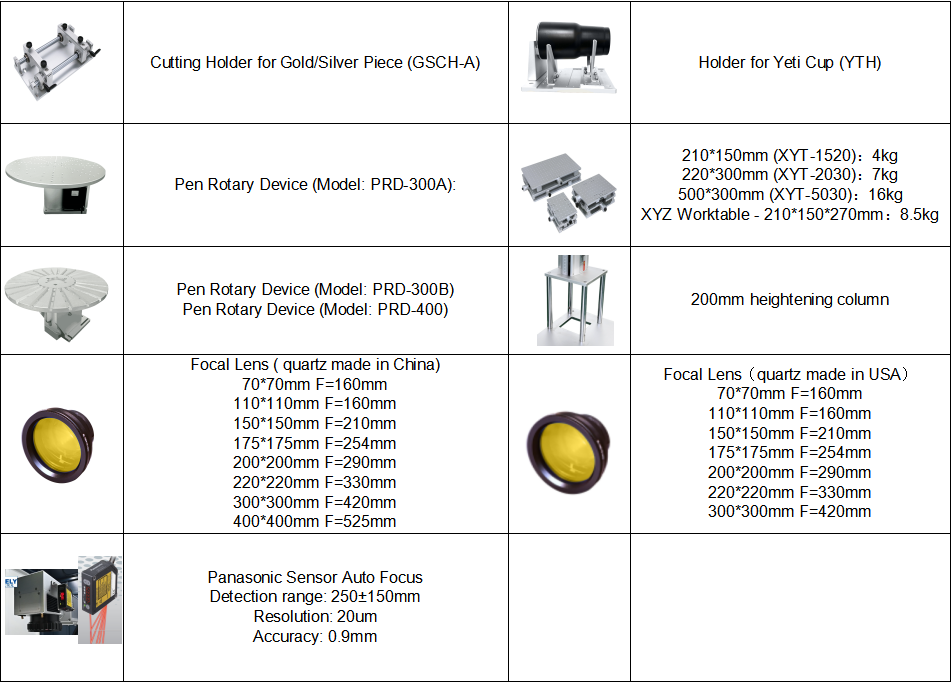

Optional Devices
Payment
Payment: 100% payment before production; Or 50% advance payment before production, 50% balance before delivery.
T/T, PayPal, Western Union, Credit Card, Alibaba.
Shipment
The machine will be sent out within 3-6 working days after payment is received.
By Express: 6-10 days. (Highly Recommended)
By Sea: 30-45 days.
Packaging
International standard plywood box / anti-shock paper box
Warranty
1. Warranty coverage applies only if the part is found to be defective due to non-human factors, and not as a result of misuse, mishandling, or unauthorized modifications.
2. Wisely will send you the parts and take the shipping cost from WISELY to the buyer's site if the machine has a quality problem within 7 days after the buyer receives it.
3. Warranty period: 24 months (2 years)
Training
Detailed user manual & step-by-step operation videos
Fast response (16 hours/day online support)
Real-time remote guidance via TeamViewer, Skype, or WhatsApp
