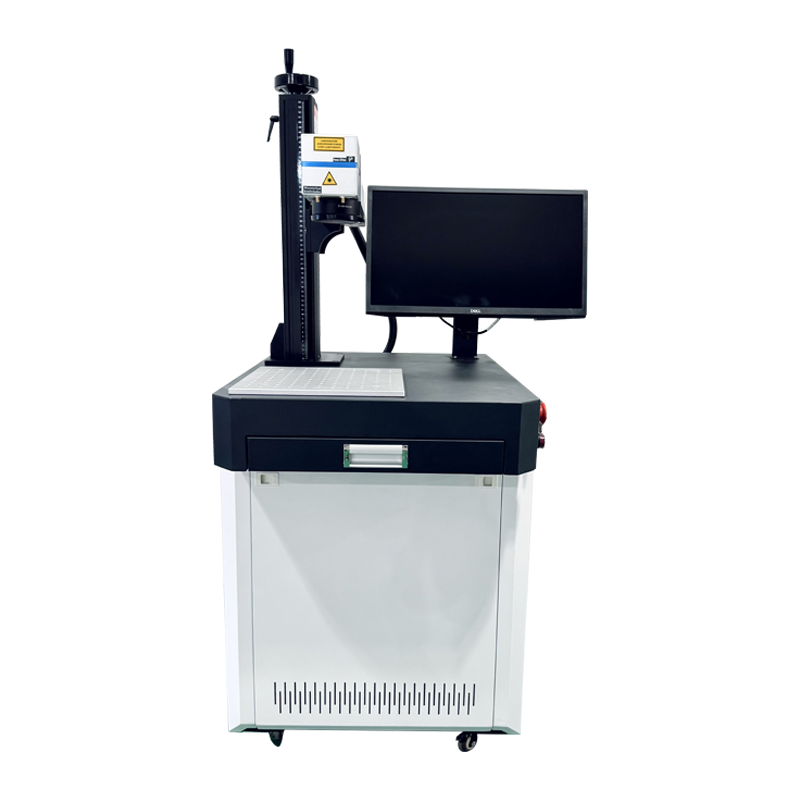

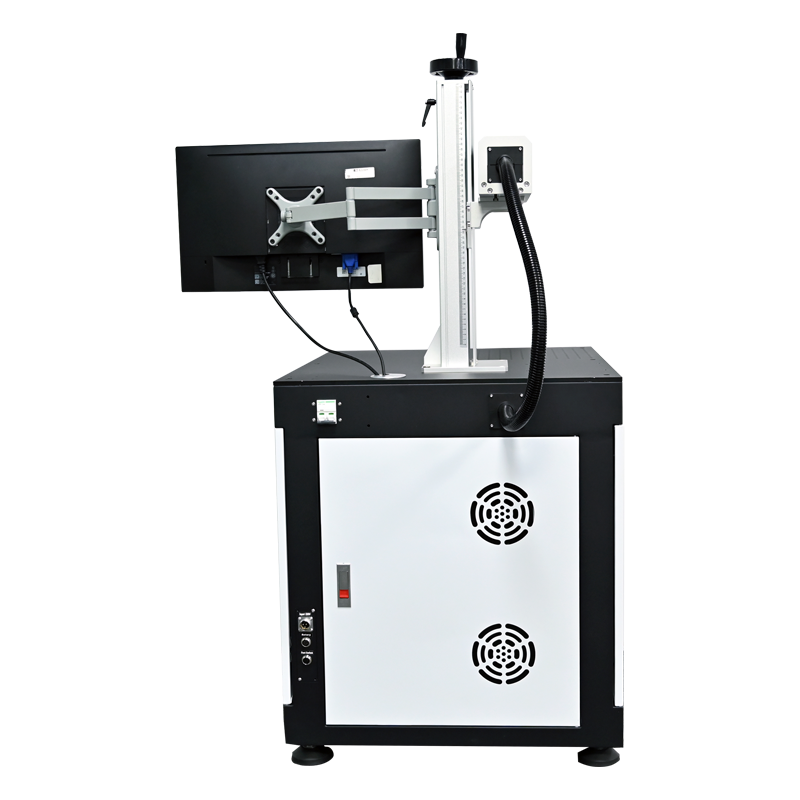

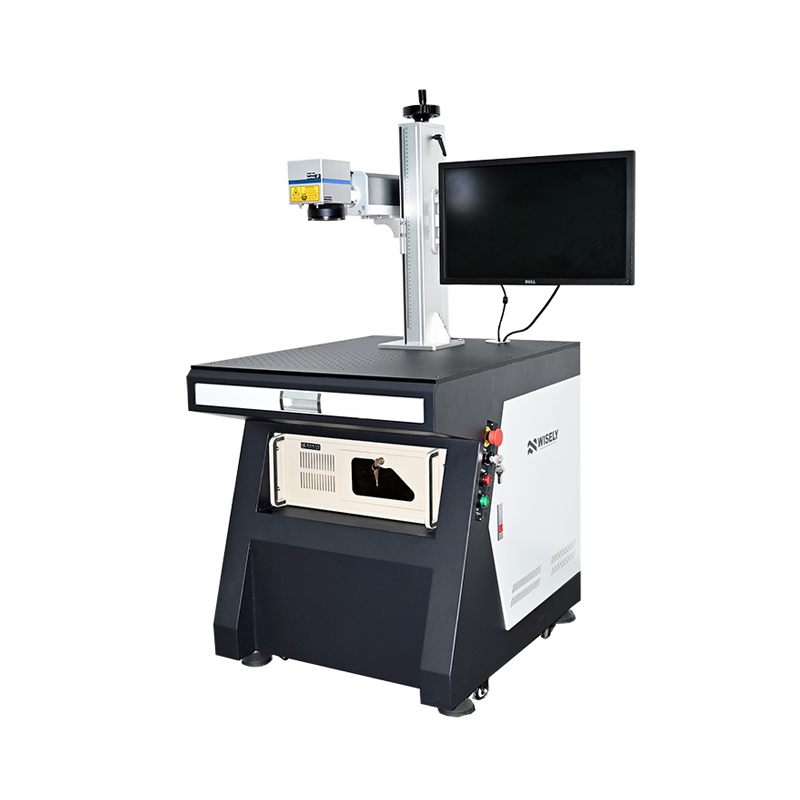

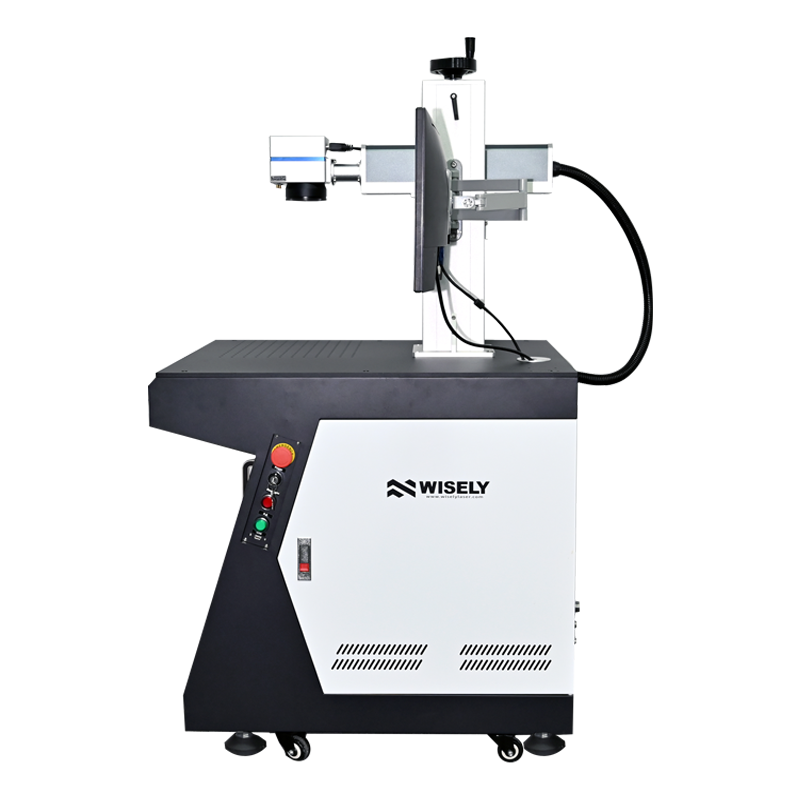

Open worktable, easy to load the material and can work with customized automatic matching system. With computer and software, can use it directly, Equipped with automation, assembly line conveyor.
1) Long lifespan of fiber laser source: 100 000 hours.
2) Low consumption: <450W, more economical and environmental.
3) High Speed: 7000mm/s, faster than traditional machines.
4) Superior Laser Beam: The definition is 1 micron, 10 times as traditional products.
5) No Consumables: One marker can work for more 8-10 years without any consumables.
6) The fiber laser beam comes out from the fiber laser source directly, no need to adjust the laser beam path.
7) High-precision and high-speed scan head, with good seal, capable to prevent dust and water, small volume, compact.
8) High-stability controller, USB interface, swift and stable transmission, route optimization, easy operation.
9) Strong Compatibility: PLT, BMP, JPG, TTF, DXF, SHX, AI and other format files output from CorelDraw, AI, PS,
AutoCAD, Solidworks etc..
10) Integrated Air Cooling System: Better cooling effect than water-cooling effect in YAG laser, no maintenance.
1) Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc.
2) Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
3) Instrument: Panel Board, Nameplates, Precision equipment, etc.
4) Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
5) Automobile Parts: Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.
6) Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
|Power||20W / 30W / 50W / 100W / 120W|
|Laser Wave length||1064nm|
|Standard Marking Area||150mm*150mm|
|Optional Marking Area||70*70mm /100*100mm /200*200mm /300*300mm /400*400mm|
|Minimum Line Width||0.015mm|
|Fiber Laser Source||JPT LP (Optionlal Raycus or IPG)|
|Scan Head||Galvo-Tech / WISE SCAN from China|
|Controller (software)||JZC Controller & EzCAD2 Software (Optionlal EzCAD3 or SAMLight)|
|Life span of Fiber Laser Module||100 000 hours|
|Focus Spot Diameter||<0.01mm|
|Output Power of Laser||10%~100%|
|Output Frequency of Laser||1~600KHz|
|Power Stability (8h)||<±1.5%rms|
|System Operation Environment||Windows XP / 7 / 8 / 10 / 11 - 32 / 64bits|
|Cooling Mode||Air Cooling|
|Voltage||220V/50HZ/1-PH or 110V/60HZ/1-PH|
|Package Size||950*950*1050mm(Air shipping) / 1000*900*1550mm(Sea shipping)|
100% or 40% prepaird before production, balance payment before shipment. (Negotiable）
Bank Wire, Paypal, Western Union, Credit Card, Alibaba.
Machine will be sent out 3-6 working days after receiving the payment.
By Express: 6-10 days.
By Sea: 30-45 days. (Recommended)
International standard plywooden case.
Whole machine has a warranty period of 24 months since the production date.
1~3 working days training free of charge in factory or online training via TeamViewer, Skype, WeChat, FB.
