Q Switch Laser Cleaning Machine Q Switch Laser Cleaning Machine Q Switch Laser Cleaning Machine Q Switch Laser Cleaning Machine

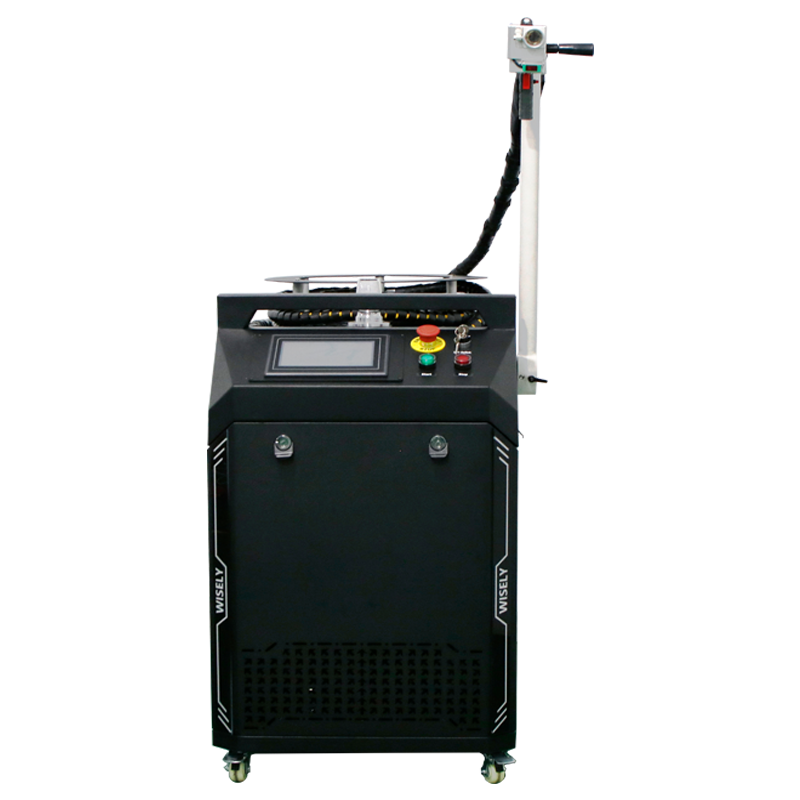

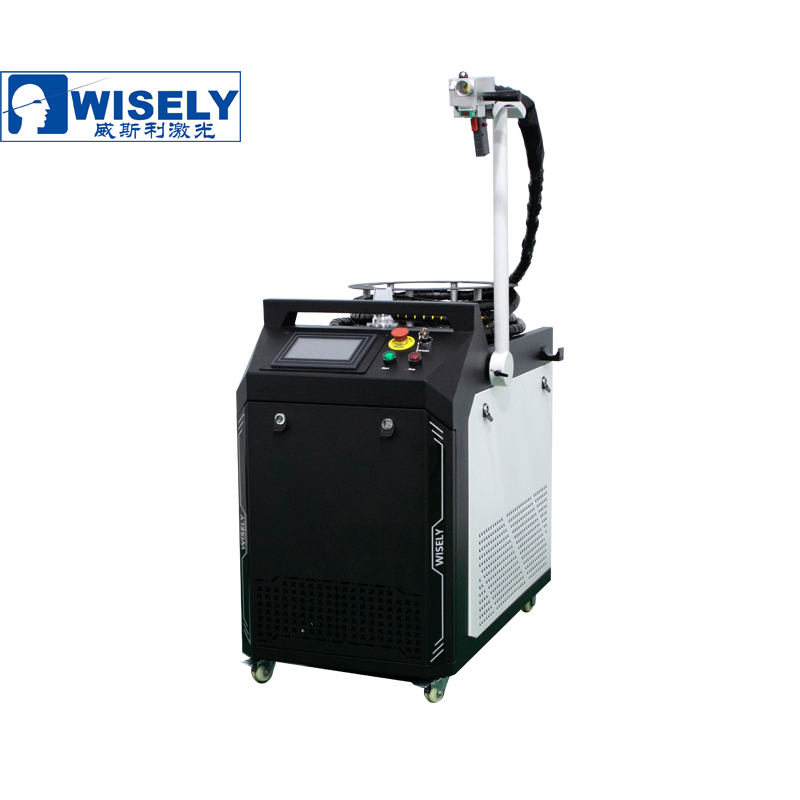

Q Switch Laser Cleaning Machine

With Q-Swithed laser source. it can do thick rust & paint easily from metals. When aimed at the metal surface, the dirt layer and any oxides underneath will absorb the energy and evaporate, along with thermal pressure and shock waves to sublimate the rust and separates it from the metal without damaging the piece.
Contact information

0086-150-1350-9330

  • Technical Parameters





Features

1. Hand-held operation, compact structure and light weight.
2. Save Energy, protect the environment, no secondary waste.
3. Non-contact cleaning, no damage on matrix material after cleaning.
4. Off-line operation, no need computer and any edition for the file.
5. Modes for different cleaning objects and cleaning effect, easy to swift the modes quickly.
6. Cleaning width can be adjustable easily.
7. No consumption, almost free maintenance.
8. With friendly safety protection system, the laser will be locked if the laser stops more than 2 minutes.

Application
1. Removal of the coat layer on the surface of metal or glass, and quick paint removal.
2. Quick removal of rust and various oxides.
3. Removal of grease, resin, gum, dust, stains and production residues.
4. Surface roughening of metal and glass.
5. Removal of paint, rust, oil stains, oxides and residues produced by welding before welding or adhesion.
6. Removal of oil stains of precision parts after production and processing.
7. Quick cleaning for maintenance of nuclear power parts.
8. Oxide treatment, paint removal and rust removal during the production or maintenance of aeronautic and astronautic weapons and vessels.
9. Metal surface cleaning in small space.
10. Cultural relic cleaning, rock cleaning, building exterior surface cleaning, steel structure anti-corrosion engineering.
11. Mold cleaning, such as tire mold, electronic mold and fold mold.

Technical Parameters

Type MY-CL1000 & MY-CL1500 & MY-CL2000
Power 1000W / 1500W / 2000W
Max. Cleaning Width 50~120mm
Laser Source IPG from Germany / JPT from China
Working Model Continuous / modulation
Scan Head & Controller HANWEI LASER
Lifespan of Fiber Laser Source 100,000-200,000 hours
Output Power of Laser 5-95% Adjustable
Cleaning Area to be adjusted on hand-held laser gun
Power Stability (8h) <±1.5%rms
Cooling Mode S&A Water Cooling Chiller
Power Comsuption 10KW/H - 13KW/H
Dimension (L*W*H)

620*1250*1400mm

Net Weight                 280KG
Gross Weight  350KG

payment
100% or 40% prepaird before production, balance payment before shipment. (Negotiable)

Bank Wire, Paypal, Western Union, Credit Card.

Shipment

Machine will be sent out 5-10 working days after receiving the payment.

By Express: 6-10 days.

By Sea: 30-45 days. ( Recommended)


Packaging

International standard plywooden case.


Warranty

Whole machine has a warranty period of 12 months since the production date.


Training

1~3 working days training free of charge in factory or online training via TeamViewer, Skype, WeChat, FB.
