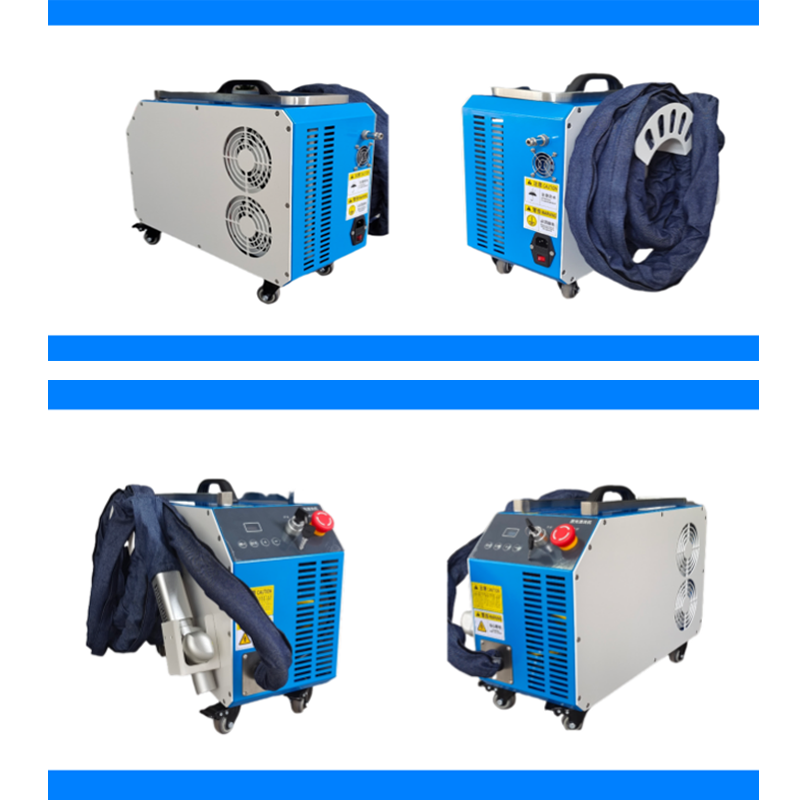

It comes with 200w /300w GZ Q Pulse fiber laser source. When aimed at the metal surface, the dirt layer and any oxides underneath will absorb the energy and evaporate, along with thermal pressure and shock waves to sublimate the rust and separates it from the metal without damaging the piece.
0086-150-1350-9330
Technical Parameters
| Type | MY-C200H /MY-C300H | |||||||||
| Power | 200W /300W | |||||||||
| Max. Cleaning Width | 50mm | |||||||||
| Laser Source | GZ from China | |||||||||
| Scan Head & Controller | WISELY LASER | |||||||||
| Lifespan of Fiber Laser Source | 100,000 Hours | |||||||||
| Cooling Mode | Air Cooling | |||||||||
| Cleaning Mode | 2 Modes | |||||||||
| Optical Fiber Cable Length | 3-5 M | |||||||||
| Operation Environment | 0℃~45℃ | |||||||||
| Power Consumption | 200W<1000W; 300W<2000W | |||||||||
| Dimension | 200W: 500*295*405mm 300W: 600*295*453mm | |||||||||
| Package Size |
200W: 660*500*380mm 300W: 760*560*380mm |
|||||||||
| Net Weight |
200W: 25kg 300w: 30kg |
|||||||||
| Gross Weight | 200W: 25kg 300w: 30kg | |||||||||
Features
1. The handheld gun is small in size and light in weight.
2. One-click start; System intelligent implementation detection system; Security lock; Intelligent standby.
3. Integrated a variety of cleaning modes, fool operation, without too many parameters.
4. Non contact cleaning.no damage parts substrate.
5. No chemical cleaning solution is required.
6. High efficiency and environmental protection.
Application
1. Removal of the coat layer on the surface of metal or glass, and quick paint removal.
2. Quick removal of rust and various oxides.
3. Removal of grease, resin, gum, dust, stains and production residues.
4. Surface roughening of metal and glass.
5. Removal of paint, rust, oil stains, oxides and residues produced by welding before welding or adhesion.
6. Removal of oil stains of precision parts after production and processing.
7. Quick cleaning for maintenance of nuclear power parts.
8. Oxide treatment, paint removal and rust removal during the production or maintenance of aeronautic and astronautic
weapons and vessels.
9. Metal surface cleaning in a small space.
10. Cultural relic cleaning, rock cleaning, building exterior surface cleaning, and steel structure anti-corrosion engineering.
11. Mold cleaning, such as tire mold, electronic mold and fold mold.
Payment
100% or 40% prepaird before production, balance payment before shipment. (Negotiable）
Bank Wire, PayPal, Western Union, Credit Card.
Shipment
The machine will be sent out 5-10 working days after receiving the payment.
By Express: 6-10 days.
Packaging
Carton Packaging/

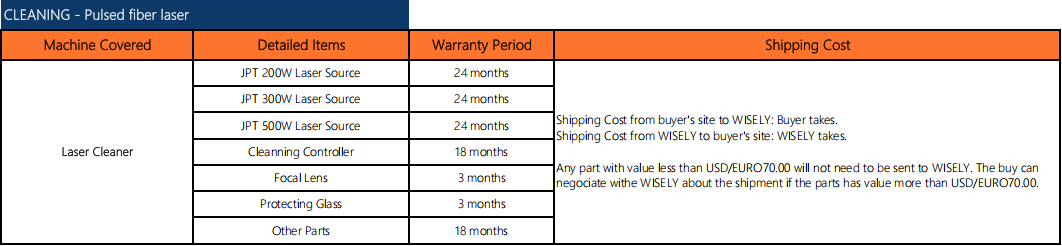

Warranty
Training
1~3 working days training free of charge in the factory or online training via TeamViewer, Skype, WeChat, FB.
