Jewelry Laser Welding MachineJewelry Laser Welding Machine

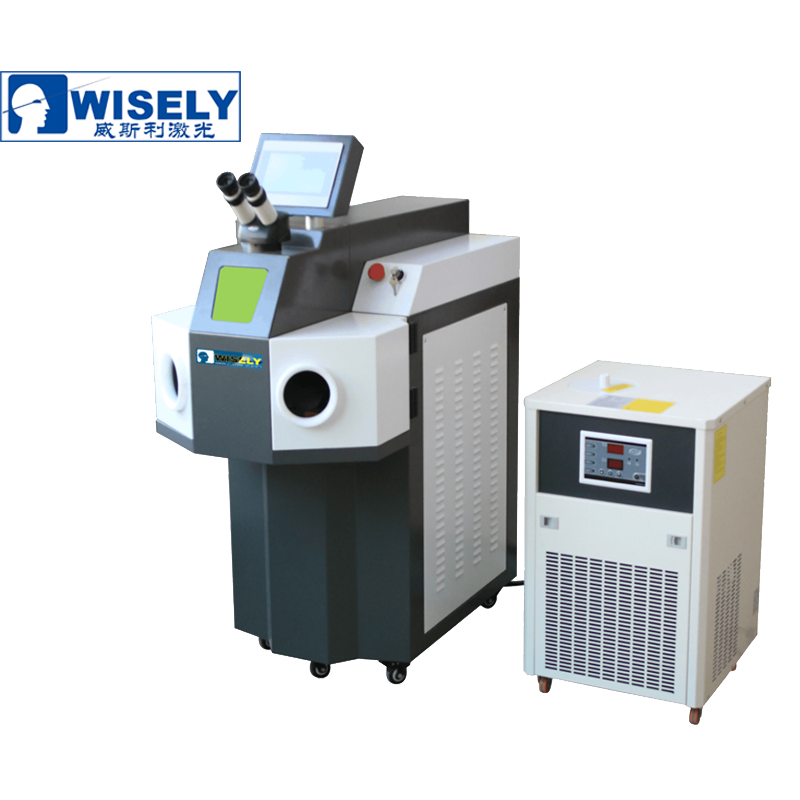

Jewelry Laser Welding Machine

MY-W200J laser spot welding machine is used for perforation and spot welding of sand hole for gold and silver jewelries. Laser spot welding is an important application of laser materials processing technology. Spot welding is thermal conduction, namely, the laser radiates the surface of the part, and the heat on the surface expands inside through heat conduction. By controlling parameters such as laser pulse width, energy, peak value and repeating frequency, the part will melt, and thus forming specific molten pools. Due to its unique benefit, the product has been successfully applied to gold and silver jewelries processing, and welding of small-sized parts.
Contact information

0086-150-1350-9330

  • Technical Parameters


Sample Gallery


Application

The laser spot welding machine dedicate to gold and silver jewelry, golf, fill holes for electronic components, welding
trachoma, weld inlay mouth and so on. Welding firm, beautiful, non-distortion, simple operation, easy to use.

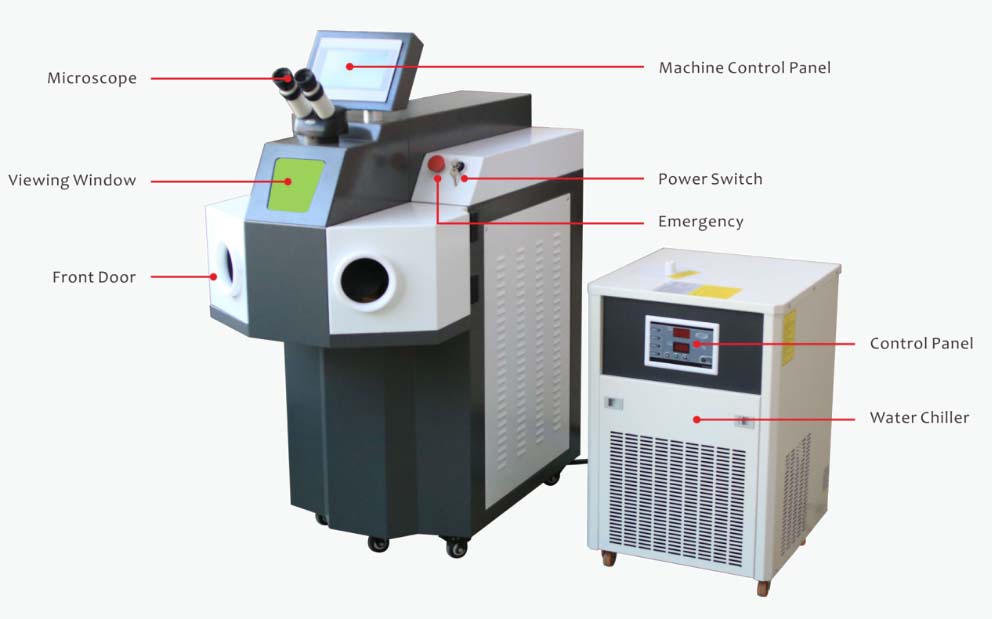

Features

1. Energy, pulse width, frequency and facular can be adjusted within a wide range to achieve different welding effects.
   The parameters are adjusted by the control rod in the sealed cavity, simple and efficient.

2. Ceramic focusing cavity imported from the U.K. is employed, corrosion resistant, high temperature resistant, efficient
    in optical/electrical conversion. The focusing cavity's service life is 8 to 10 years, and the service life of the xenon lamp
    is over 8 million times.

3. World-leading automatic light shielding system is employed to remove stimulation of light on eyes during operation.

4. 24-hour continuous operation, with stable operating performance, and free from maintenance within 10000 hours.

5. Personalized design in compliance with ergonomics principles.


Technical Parameters

TypeMY-W200J
Max.average power200W
Laser wavelength1064nm
Max. Pulse energy120J
Laser welding depth0.1-3.3mm
The pulse width0.3-20ms
Batter, laser welding frequency0.5-20Hz
Adjustable range of spot size0.2-2mm
Machine Power consumption≤4kw
The demand for electricity220V±0%/50Hz/30A
Cold systemWater Chiller
Installation environmentInstallation Location: 3㎡or less
EnvironmentClean, no dust or less dust
Temperature55℉(13℃) to 82℉(28℃)
Humidity5% to 75% non-condensing water
Power220V/50HZ Alternating current, 30A an air switch, voltage stability

Shipment

Within 3~5 working days after receiving your payment.

Packaging

International Standard Packing--Plywooden Case--free of fumigation.


Warranty

Whole machine has a warranty period of 24 months since the production date.

Training

1~3 working-days training free of charge in factory. The buyer can discuss the details with WISELY salesman.
