With battery, only 19KG, good for outdoor rust, coating, dirt removal! It comes with 50w/100w JPT Q Pulse fiber laser source. When aimed at the metal surface, the dirt layer and any oxides underneath will absorb the energy and evaporate, along with thermal pressure and shock waves to sublimate the rust and separates it from the metal without damaging the piece.

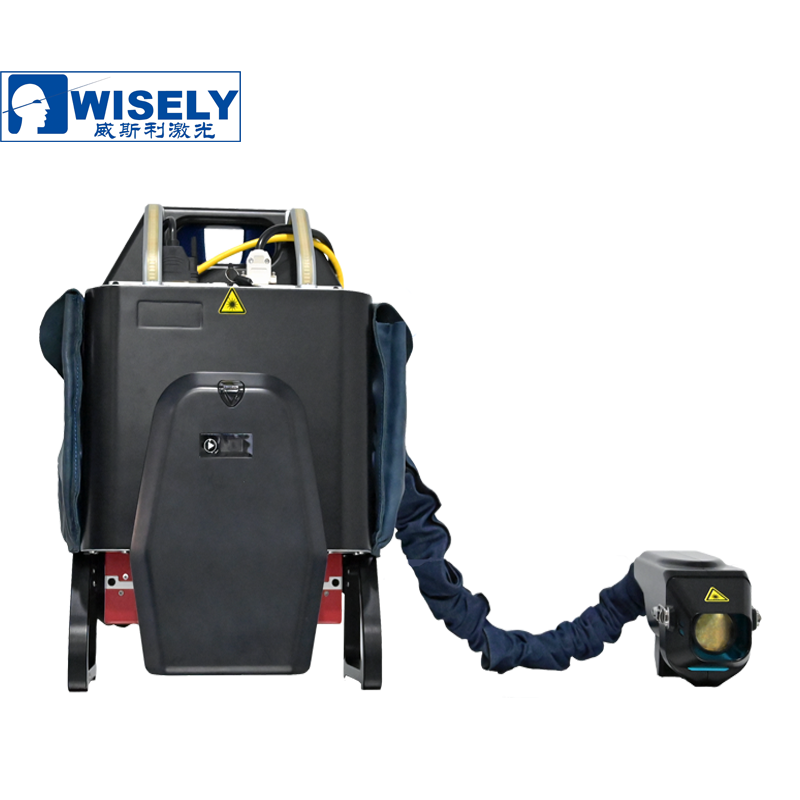

1) Backpack systel, supply with battery, compact structure and light weight, suitable for outdoor cleaning.

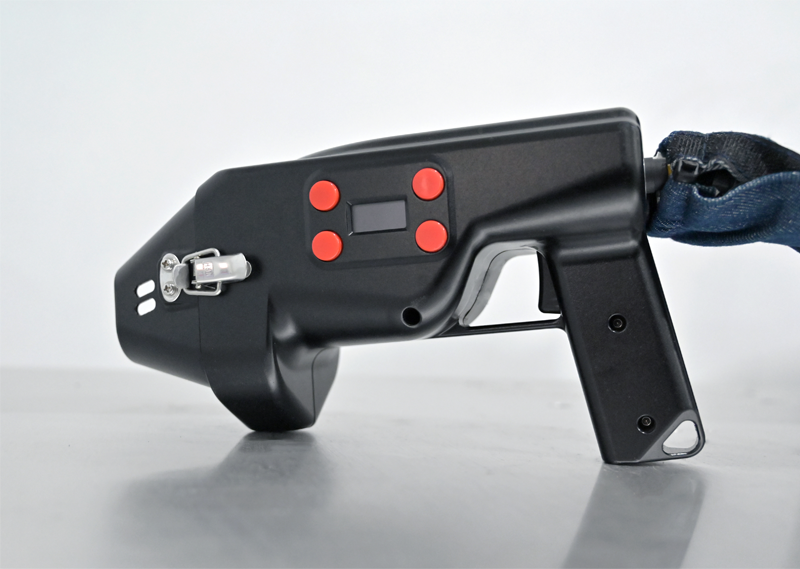

2) Hand-held operation, light scanning head, easy to operate for a long time.
3) Save Energy, protect the environment, no secondary waste.
4) Non-contact cleaning, no damage on matrix material after cleaning.
5) Off-line operation, no need computer and any edition for the file.
6) 8 Modes for different cleaning objects and cleaning result, easy to swift the modes quickly.
7) Cleaning width can be adjustable from 10-100mm easily.
8) No consumption, almost free maintenance.
9) Friendly safety protecting system, the laser will be locked if the laser stops more than 120s, to press 2 buttons
at the same time to reactivate the laser.
1. Removal of the coat layer on the surface of metal or glass, and quick paint removal.
2. Quick removal of rust and various oxides.
3. Removal of grease, resin, gum, dust, stains and production residues.
4. Surface roughening of metal and glass.
5. Removal of paint, rust, oil stains, oxides and residues produced by welding before welding or adhesion.
6. Removal of oil stains of precision parts after production and processing.
7. Quick cleaning for maintenance of nuclear power parts.
8. Oxide treatment, paint removal and rust removal during the production or maintenance of aeronautic and astronautic
weapons and vessels.
9. Metal surface cleaning in small space.
10. Cultural relic cleaning, rock cleaning, building exterior surface cleaning, steel structure anti-corrosion engineering.
11. Mold cleaning, such as tire mold, electronic mold and fold mold.
|Type||MY-C50B / MY-C100B|
|Power||50W / 100W|
|Max. Cleaning Width||10~100mm|
|Laser Source||JPT from China|
|Scan Head & Controller||WISELY LASER|
|Lifespan of Fiber Laser Source||100,000 Hours|
|Cooling Mode||Air Cooling|
|Cleaning Mode||8 Modes|
|Optical Fiber Cable Length||1m|
|Power Comsuption||350W for 50W / 600W for 100W|
15kg for 50W / 19kg for 100W
|Gross Weight||350W for 50W / 600W for 100W|
100% or 40% prepaird before production, balance payment before shipment. (Negotiable）
Bank Wire, Paypal, Western Union, Credit Card.
Machine will be sent out 5-10 working days after receiving the payment.
By Express: 6-10 days.

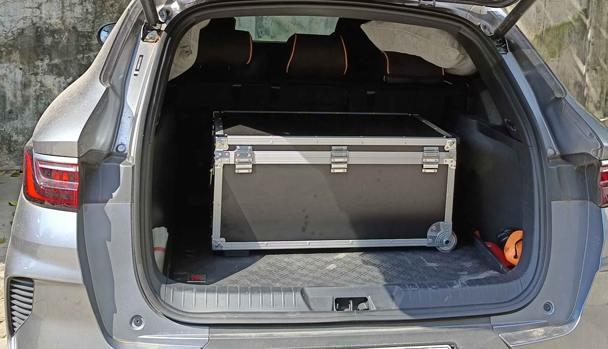

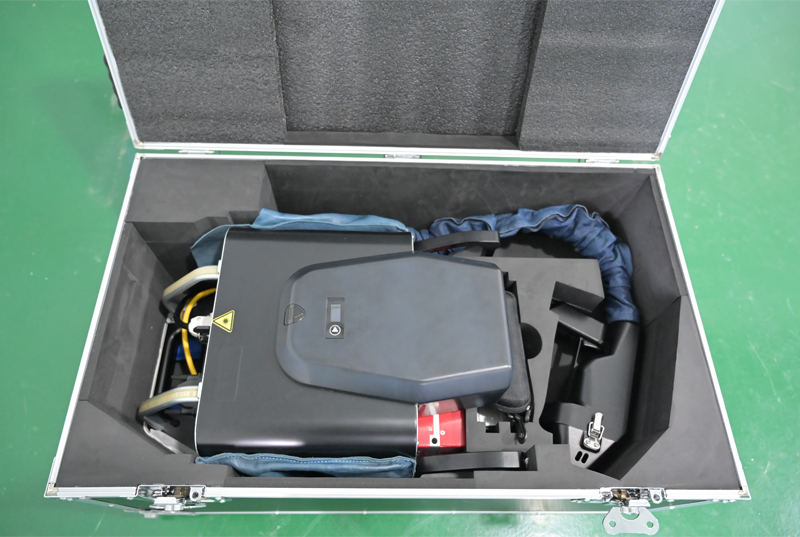

International standard plywooden case.
Whole machine has a warranty period of 12 months since the production date.
1~3 working days training free of charge in factory or online training via TeamViewer, Skype, WeChat, FB.
