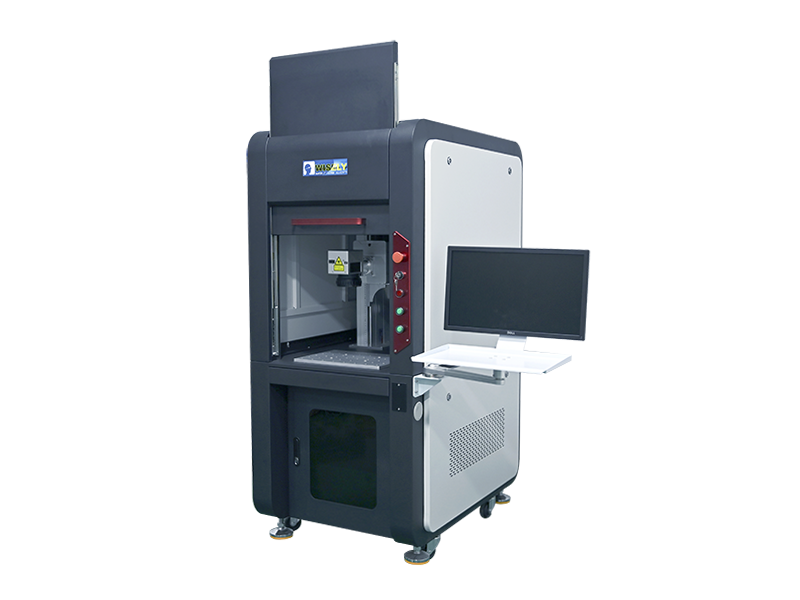

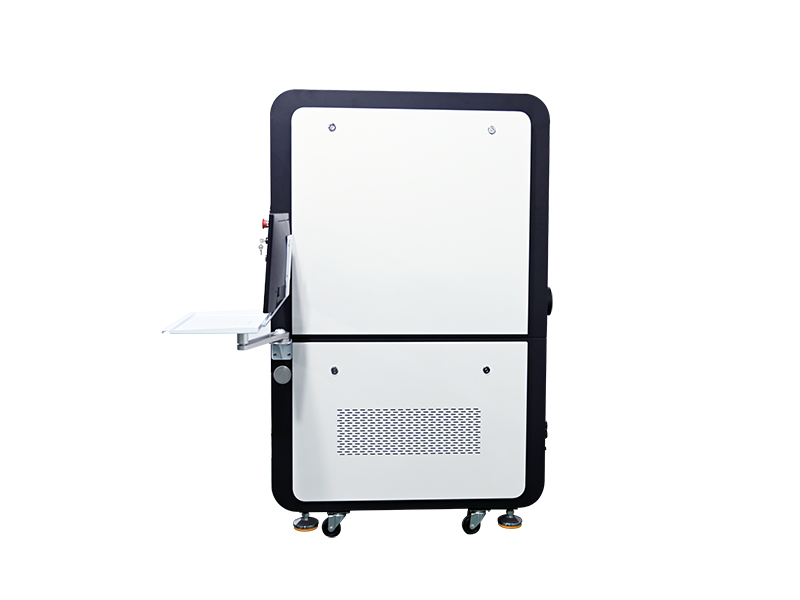

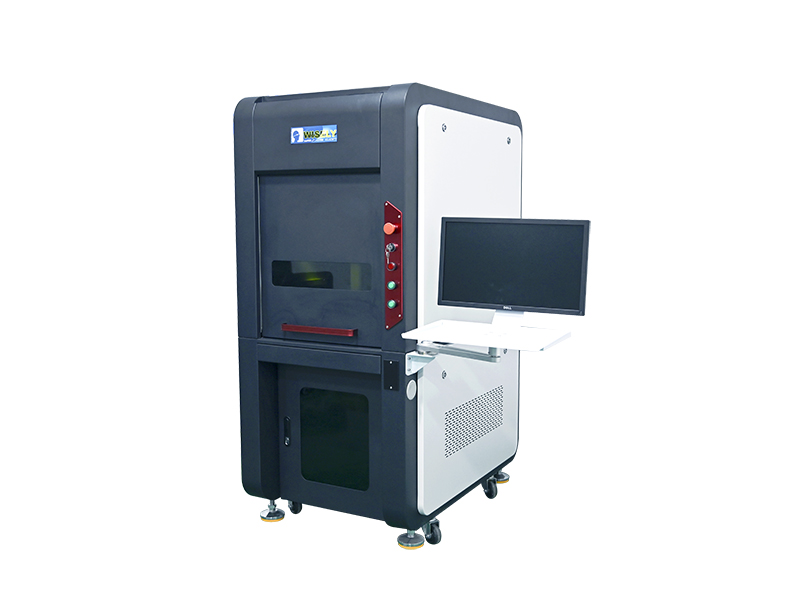

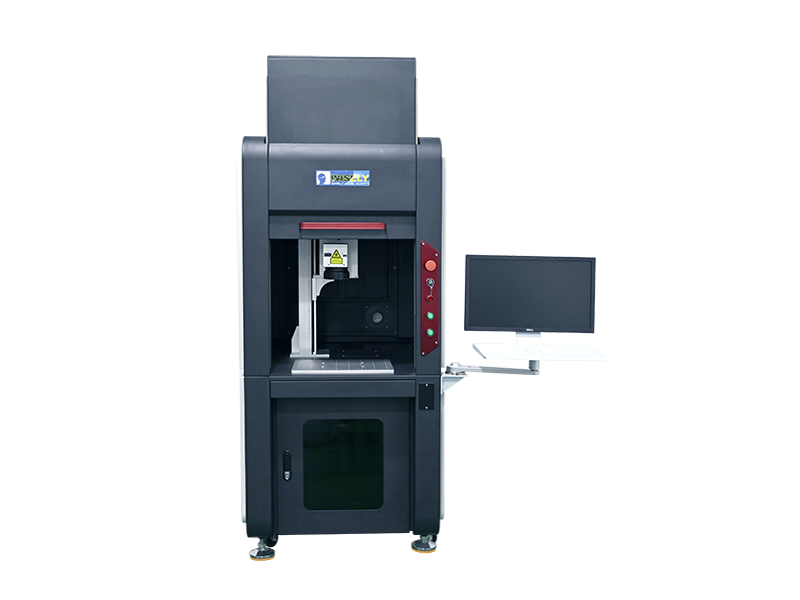

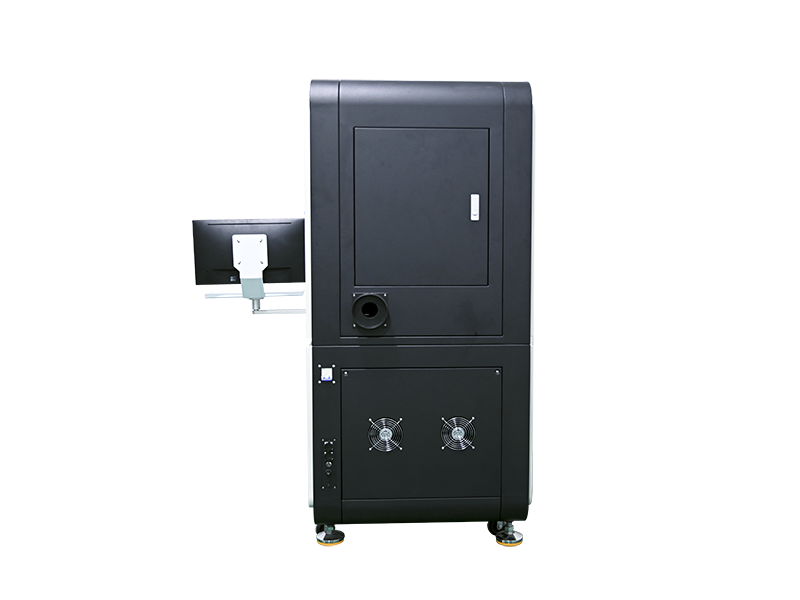

Enclosed CO2 Laser Marking Machine

Fully enclosed structure design, with a sturdy protective shell, protect the operator from laser radiation. CO2 Laser Marking Machine adopts the RF CO2 laser source imported from CRD / Coherent, equipped with high-speed galvanometer scanning system, with superior laser beam, small divergence angle and integrated laser structure. It's convenient to maintenance, stable performance, high reliability and long lifespan ( max 45,000 hours). The equipment is low processing cost, without any consumption, large marking area, high efficiency.

Online message

Contact information

0086-150-1350-9330

Technical Parameters

More Video Links:
CO2 laser marking machine videos: https://www.youtube.com/playlist?list=PLzHZLfB8KONGaHoKbg9Q0i68iAjqVIlrT

1. Wood deep engraving at fast speed by 60W Galvo CO2 laser:  https://youtu.be/tRuxTGP7ErY
2. Cermark on stainless steel - Wisely Laser CO2 Laser Painting Test:  https://youtu.be/kq9ONFJURbg
3. Leather marking high-speed: https://youtu.be/XKYtWmgwA2E
4. Acrylic & glass fast marking by Galvo CO2 laser: https://youtu.be/xES4jwxetR8
5. Wood engraving by 30W high-end series Galvo CO2 laser:  https://youtu.be/l3_ToITyy74
6. 3D Wedding Invitations Greeting Cards Laser Cutting: https://youtu.be/r9WsNVdWEyo
7. Cutting Wedding Invitation Cards - 3D Galvo Laser Cutter: https://youtu.be/HPTPCkiRdzQ

Marking effect comparison

*Comparison of small character marking

*Effects on acrylic： Character height: 0.5 mm - 0.9 mm

Features

1) Adopted the imported CO2 laser tube, its beam is of superior quality, stable output and low failure rate.

2) Coordinated with the excellent servo motor, the high-speed scanning galvanometer is of high marking
speed and precision.

3) The industrial control computer has a strong capacity of resisting disturbance, assuring the stable work during the long Period of the industrial environment.

4) With a powerful and friendly controller and software, easy operation, and an increase in working efficiency.

5) With a reasonable and whole structure design, better stability and higher reliability.

6) CRD / COHERENT tube is refillable, excellent performance, longer life (Max. 45000 hours) and without maintenance.

7) High-precision and high-speed scan head, with a good seal, capable of preventing dust and water, small volume, compact.

8) Strong compatibility, TTF Font, SHX, BMP, DXF, AI, PLT and other file formats export from CorelDraw, PhotoShop,
AutoCAD, etc.

Applications

Glass	Wood	Paper	Rubber	Leather
Building Ceramics	PVC	Acrylic	Bamboo Products	ABS

Parameter

Model				WSL-M30C-V WSL-M50C-V
Power				30W / 50W / 60W / 100W
Marking Area				140*140mm
Optional Marking Area				110110mm / 200200mm / 250250mm / 300mm300mm
Marking Depth				≤5mm Acrylic
Minimum Line Width				0.10mm
Minimum Character				0.3mm
Repeated Precision				± 0.01mm
Laser Wavelength				10.6um
CO2 Laser Source				COHERENT
Optional Laser Source				CRD / YONGLI
Controller and Software (EZCAD)				JCZ Controller & EzCAD2 Software from China (Optionlal EzCAD3 or SAMLight)
Scan Head				Galvo-Tech / WISE SCAN from China
Marking Speed				≤ 7,000mm/s
Repeated Frequency of Laser				1-200KHZ
Marking Type				Dynamic Mark / Static Mark
System Operation Environment				Windows 10 / 11-32 / 64bits
Cooling Mode				Air cooling
Temperature of Operation				15℃~35℃
Communication Interface				USB
Lifespan of CO2 Tube				Max.45,000 hours
Voltage				220V / 50HZ / 1-PH or 110V / 60HZ / 1-PH
Power Consumption				1.2KW
Demension				11808001700mm
Package Size				13509501950mm
Net Weight				260KG
Gross Weight				380KG

Payment

Payment: 100% payment before production; Or 50% advance payment before production, 50% balance before delivery.

T/T, PayPal, Western Union, Credit Card, Alibaba.

Shipment

The machine will be sent out within 3-6 working days after receipt of payment

By Express: 6-10 days. (Highly Recommended)

By Sea: 30-45 days.

Packaging

International standard plywood box / anti-shock paper box

Warranty

1. Warranty coverage applies only if the part is found to be defective due to non-human factors, and not as a result of misuse, mishandling, or unauthorized modifications.

2. Wisely will send you the parts and bear the shipping cost from WISELY to the buyer's site if the machine has a quality problem within 7 days after the buyer receives it.
3. Warranty period: 24 months (2 years)

Training

Detailed user manual & step-by-step operation videos

Fast response (16 hours/day online support)
Real-time remote guidance via TeamViewer, Skype, or WhatsApp
